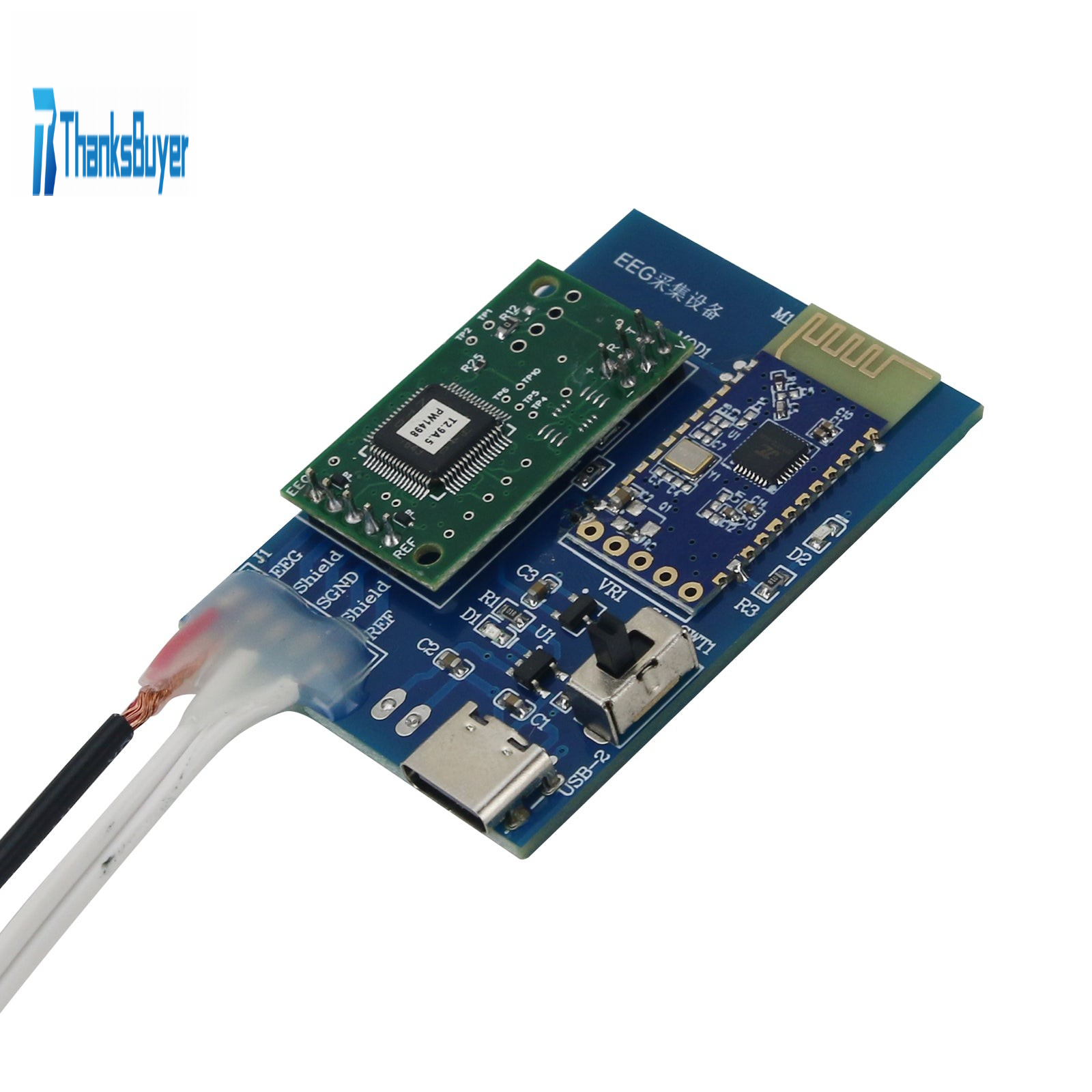

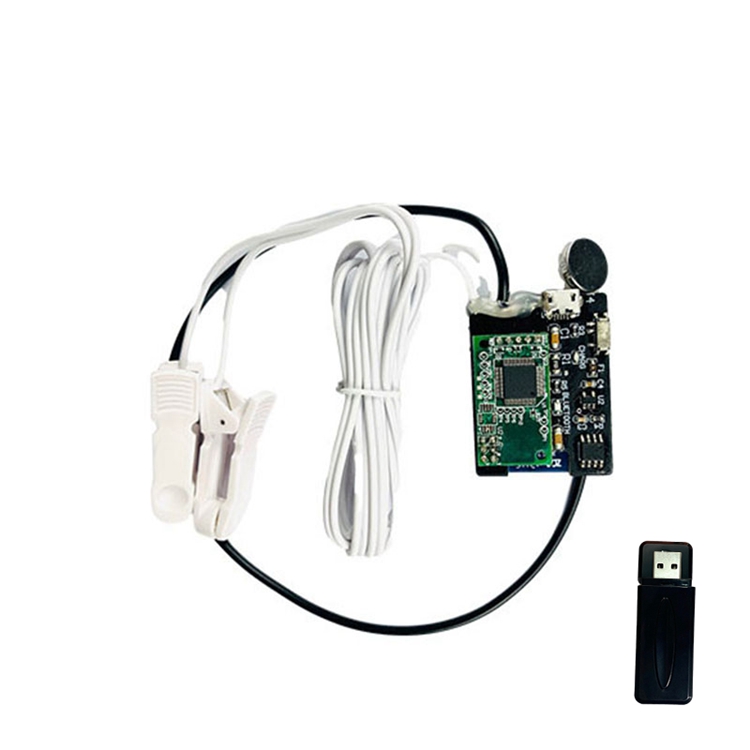

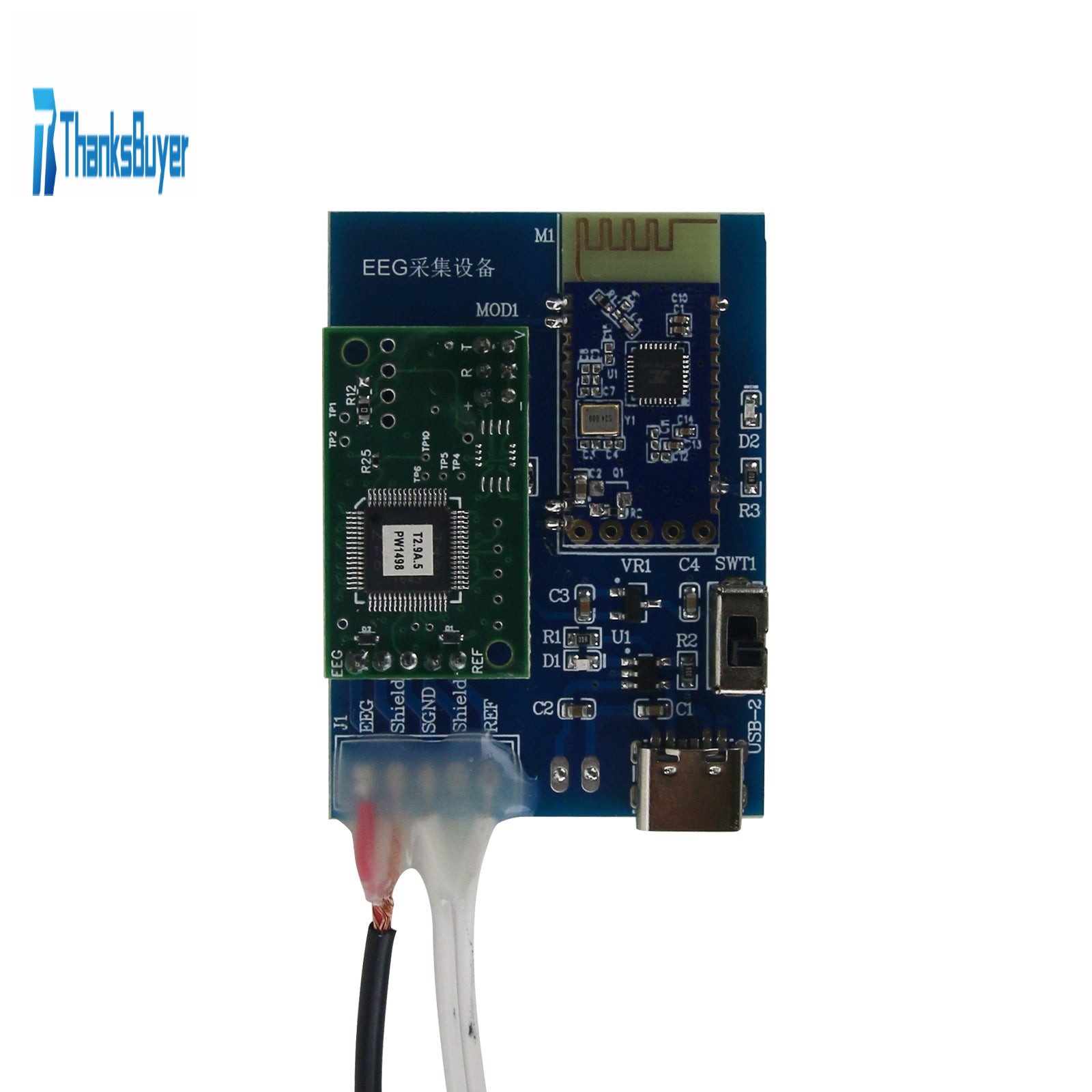

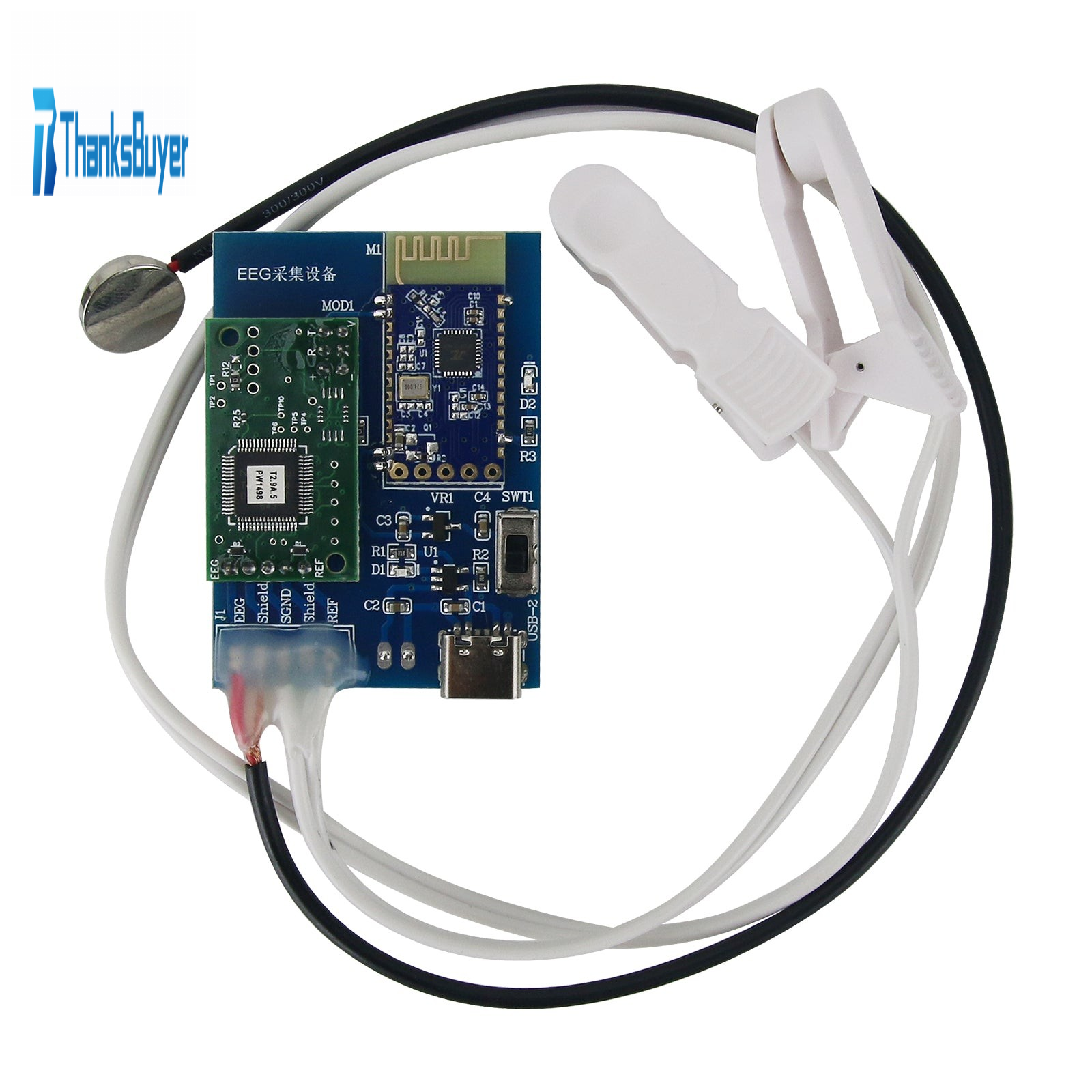

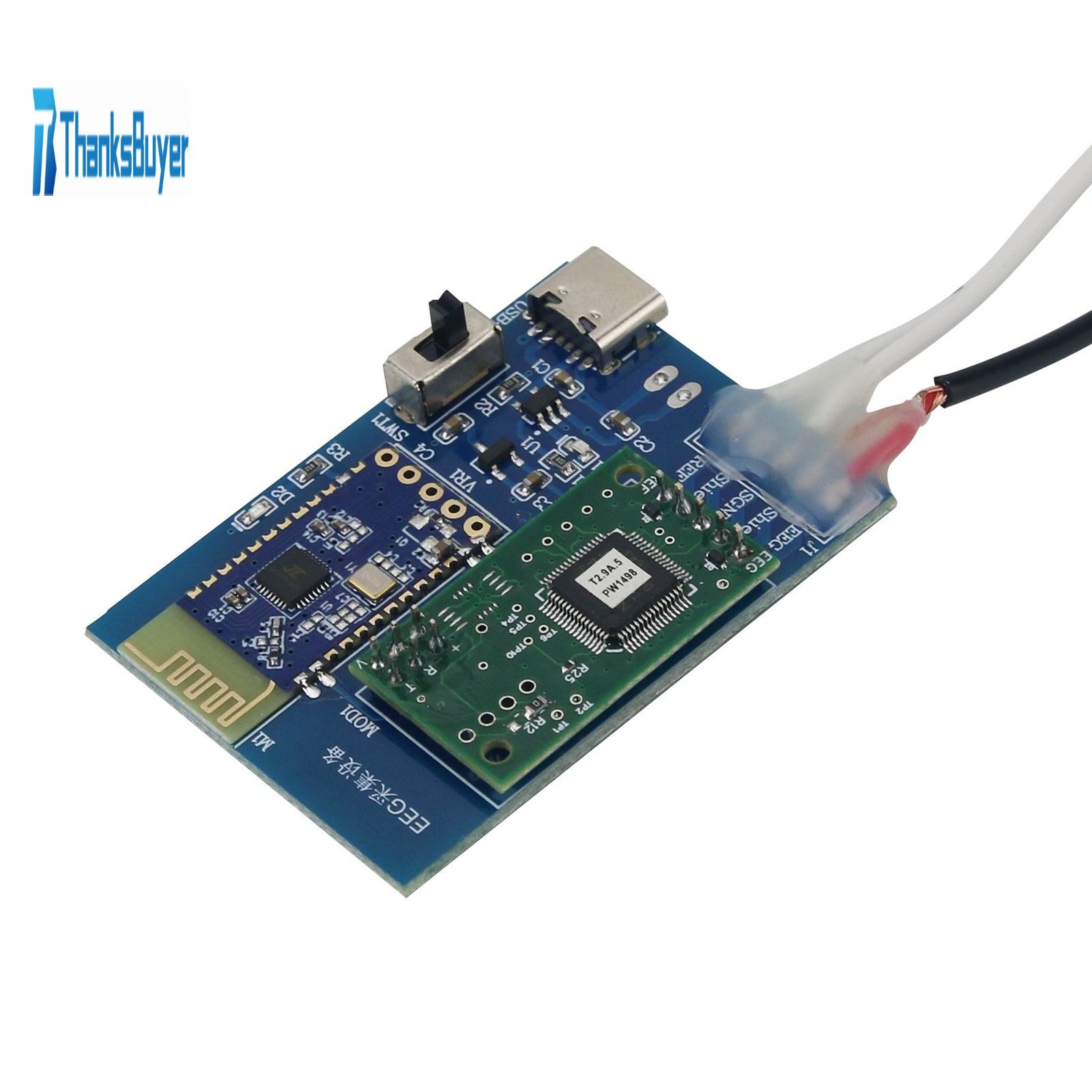

TGAM Brainwave Brain Wave Sensor EEG Sensor 3rd Generation Lithium Battery Version + Adapter

Version Introduction:

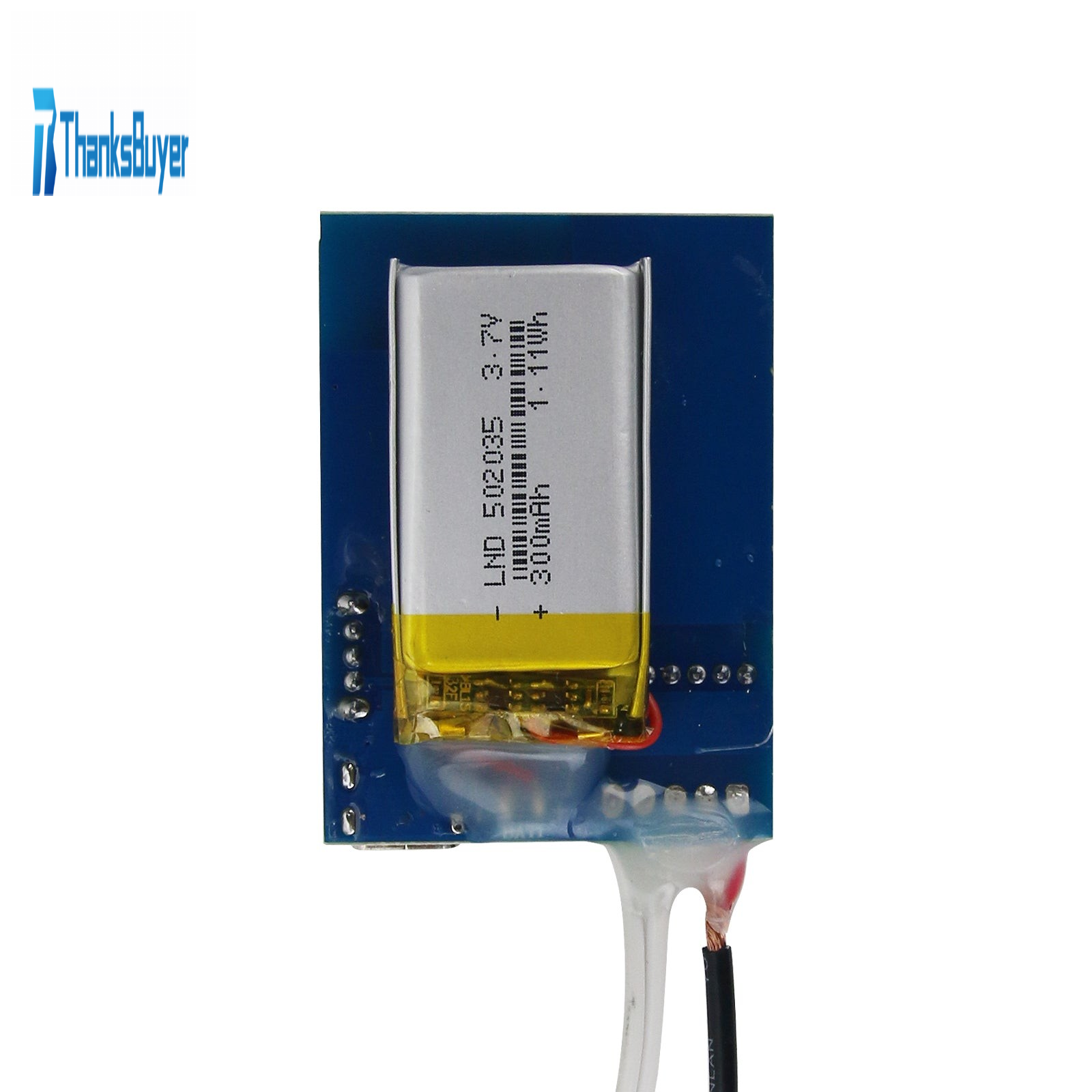

The third-generation upgraded version uses a charging circuit and a voltage regulator circuit. Powered by a lithium battery, it meets the needs of continuous acquisition for long periods of time.

Description:
Detecting EEGs requires quite complex and immobile equipment, which is very expensive, up to tens of thousands or even millions of dollars. Embedded EEG sensor for Neurosky provides a new solution for the education and health industries, with research-grade accuracy. It can amplify and process the detected raw EEG signals and transmit them to other devices. Our EEG algorithms are developed by R&D personnel in collaboration with renowned universities and research institutes.

Features:
- Direct connection to dry electrodes
- One EEG channel + reference electrode + ground wire
- Weak EEG signals can be detected
- It can filter out noise and anti-interference
- Raw EEG signal at 512Hz

Module Parameters:
Specifications:
- Module size: 27.9mm x 15.2mm x 2.5mm
- Weight: 130mg

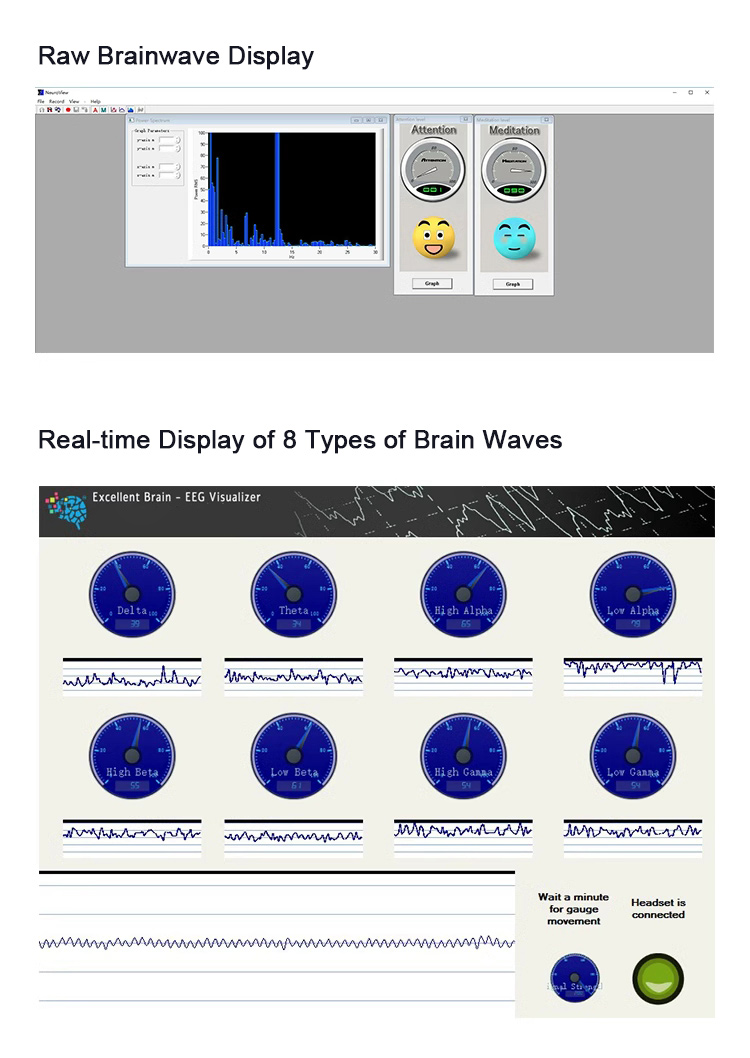

eSense Brain Wave Output:

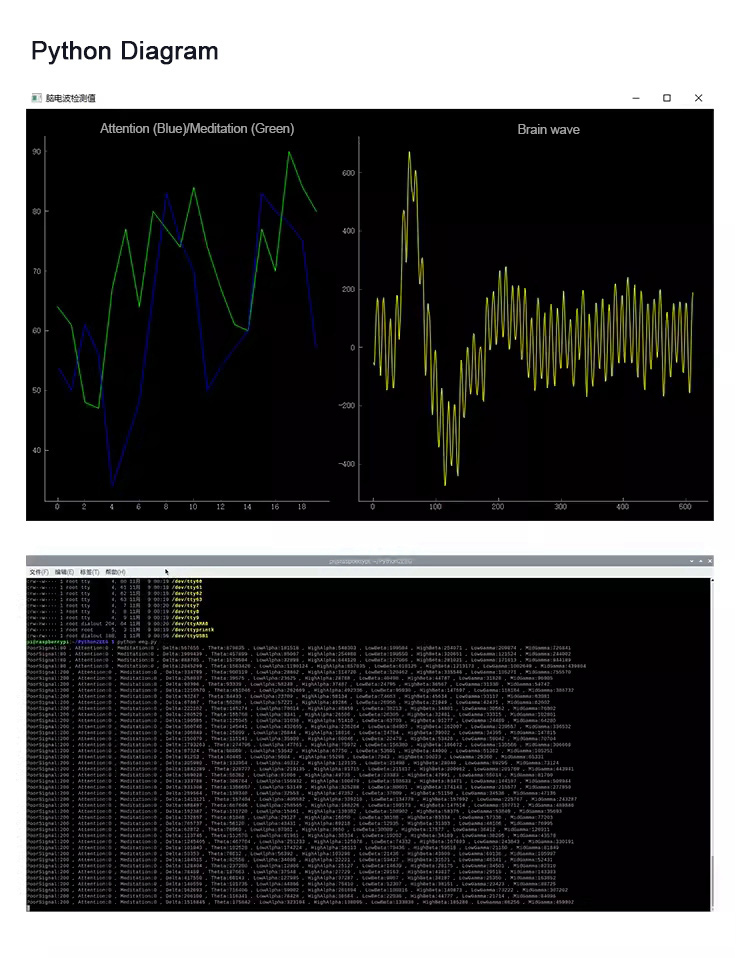

- RAW EEG signal
- Attention
- Meditation
- Eye-blinks
- Brain wave (Delta, Theta, low apha, alpha, low beta and gamma)

Technical Parameters:
- Sampling rate: 512Hz
- Hardware filtering: 3Hz-100Hz
- ESD protection: 4kV contact discharge; 8kV air discharge
- Power consumption: 15mA-3.3V
- Operating voltage: 2.97-3.63V

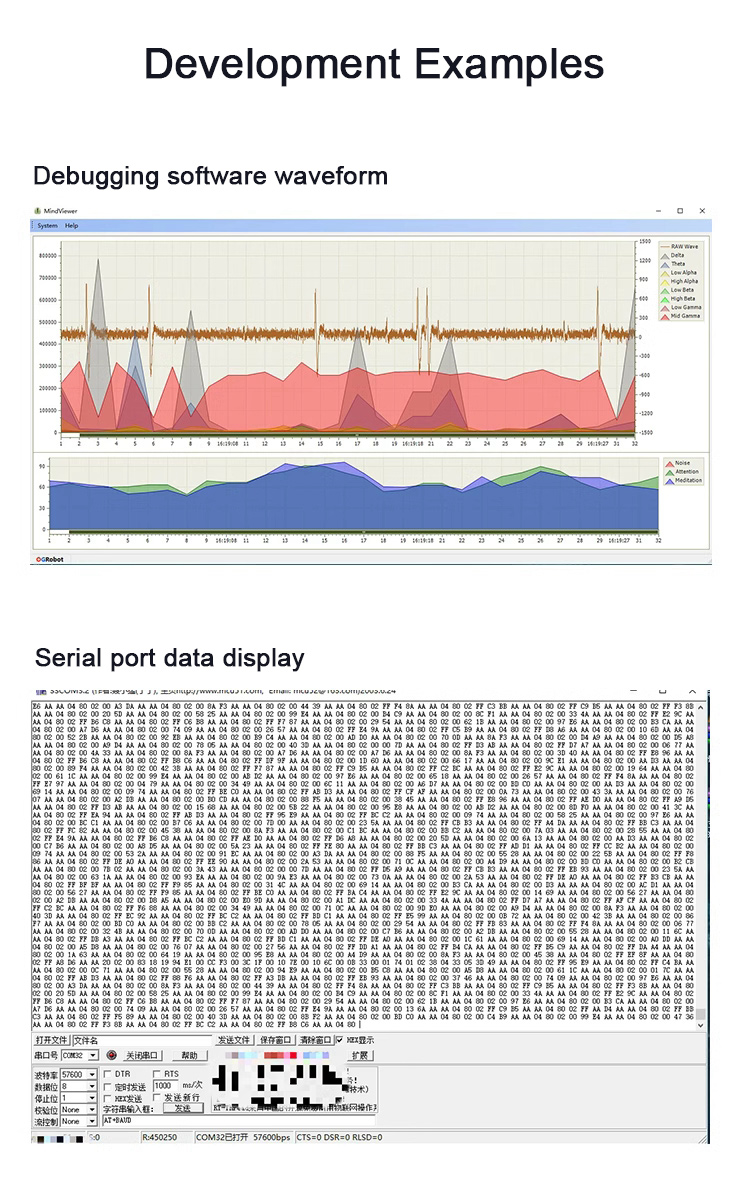

- UART serial port: 1200, 9600, 57600 baud rate; 8bits; No parity; 1 stop bit

Package Included:

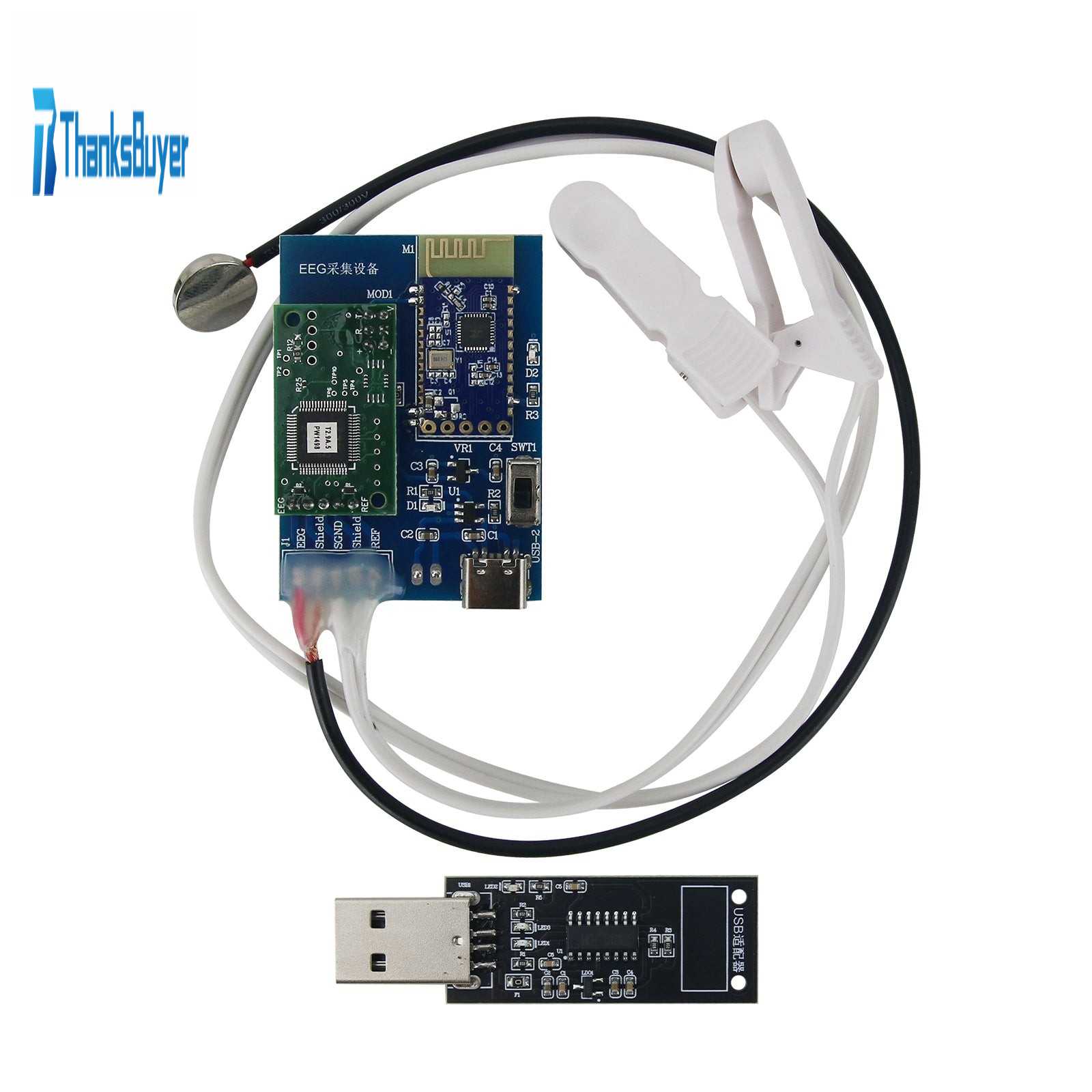

- 1 x Set of Brain Wave Sensor

Packaging Details:
- G.W.: 0.5kg
