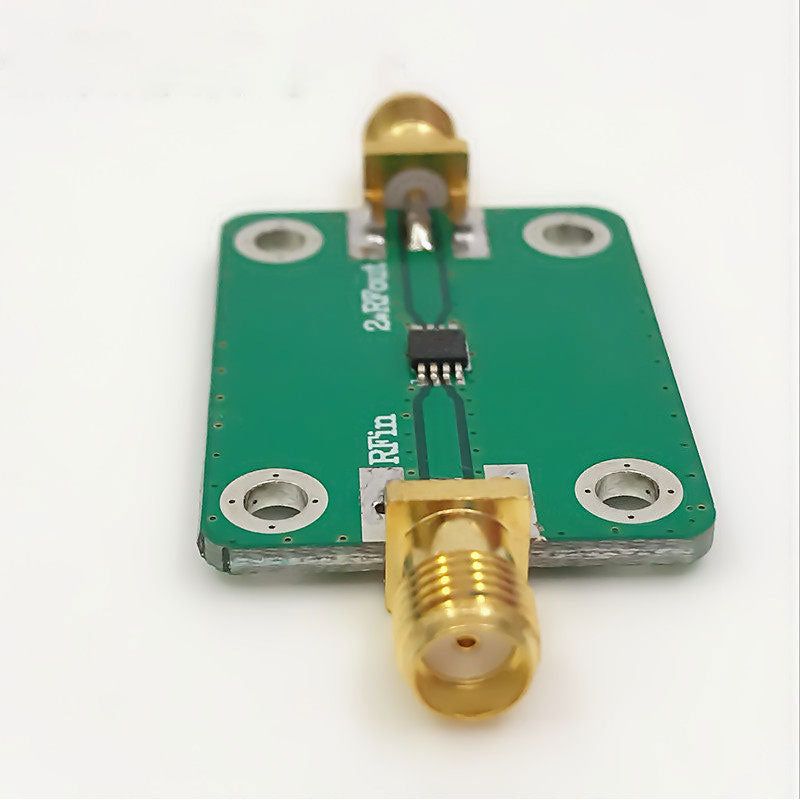

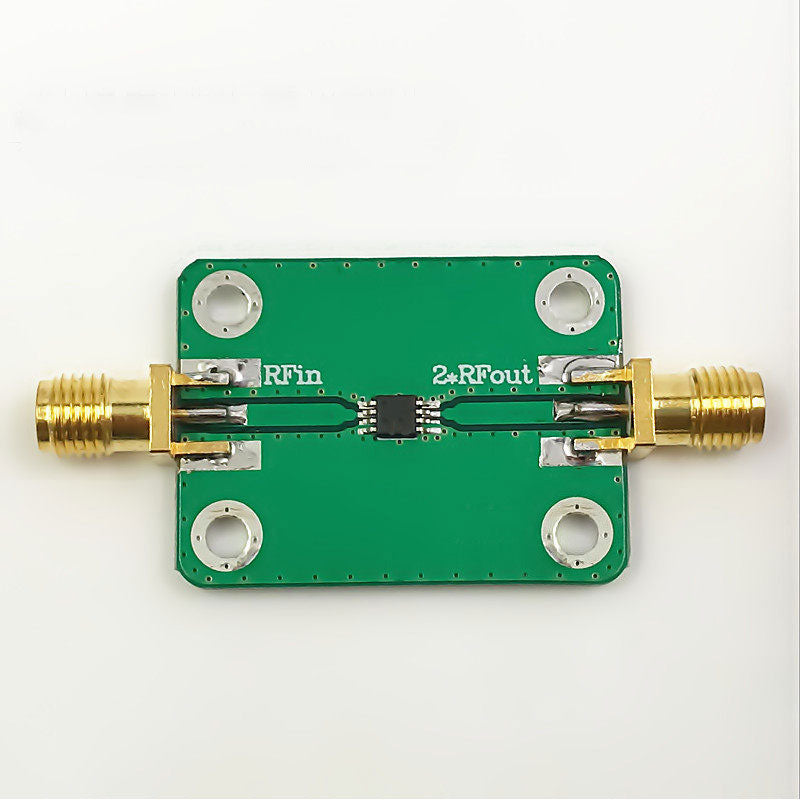

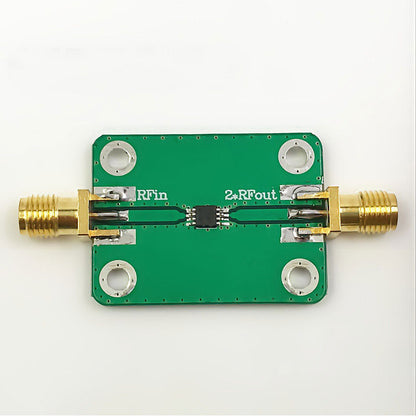

Thanksbuyer RF Microwave 2X Frequency Multiplier Module 4-8GHz Input 8-16GHz Output with SMA Female Connector

Introduction:
- A frequency multiplier is a circuit that makes the output signal frequency equal to an integer multiple of the input signal frequency. If the input frequency is f1, the output frequency is f0=nf1, and the coefficient n of this product is 2. Frequency multipliers have a wide range of applications. For example, when a transmitter uses a frequency multiplier, it can make the main oscillator oscillate at a lower frequency to improve frequency stability; Frequency modulation equipment uses a multiplier to increase frequency offset; In phase keying communication equipment, the frequency multiplier is an important component of the carrier recovery circuit.

Specification:
- Power supply voltage: No power supply required, using passive frequency doubling devices.
- Input frequency: 4 - 8GHz input
- Output frequency: 8 - 16GHz
- Input power: +10dBm to +15dBm, typ. +13dBm input
- Frequency doubling loss: 17dB
- Isolation degree: 42dB (1F0, 3F0, 4F0)
- Product size: 33mm x 25mm

Package Included:
- 1 x RF Multiplier Module
