TOP DSD1796 + XMOS XU208 USB DAC decoder Support DSD 64-256 PCM 32Bit -384k

Description:
- Model: DSD1796 DAC
- DAC chip: DSD1796 + XMOS XU208
- USB Input : XU208

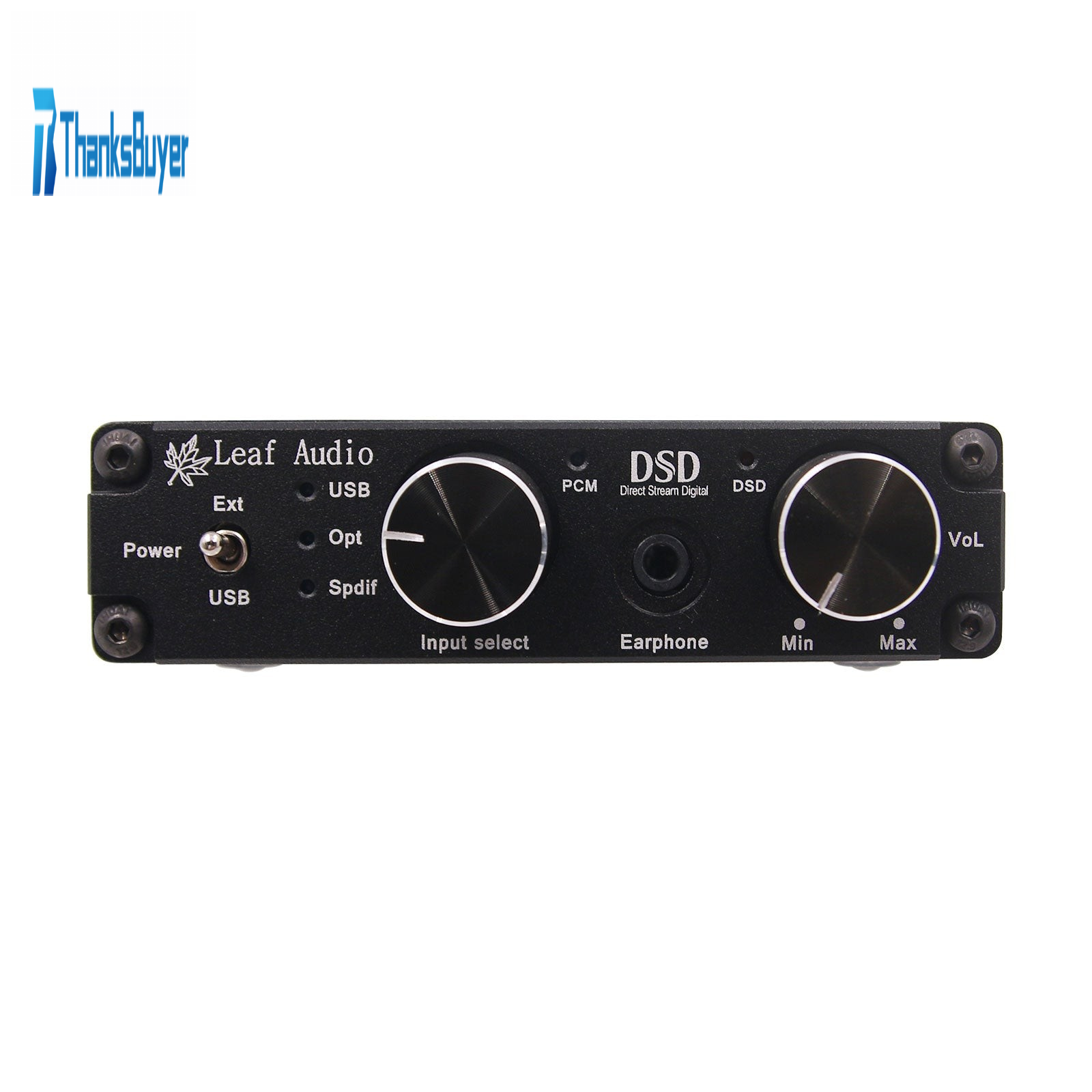

- Volume adjustment knob

Specifications:
- Size: 110 * 98 * 25MM (excluding protruding part)
- Weight: 300g
- Power interface: it can be powered by USB port or external power supply (note that the voltage must be 5V, which cannot be exceeded, otherwise it will be broken)
- External power supply specification: DC 5V > 0.5A socket specification: dc3.5-1.3mm
- Input working current of coaxial and optical fiber: 60mA
- USB input working current: 200mA
- Earphone power: 130MW / 32ohm
- Audio output distortion: 0.008%
- Audio output amplitude: 2.1V RMS
- Coaxial support format: PCM 44.1k-192k/24bit
- Optical fiber support format: PCM 44.1k-96k/24bit
- USB decoding support format: PCM 44.1k-384k/32bit, DSD64-DSD256 automatic recognition decoding (DXD format is not supported)

Note:
- When the USB port is connected to the mobile phone, external power supply is required

Package list:
