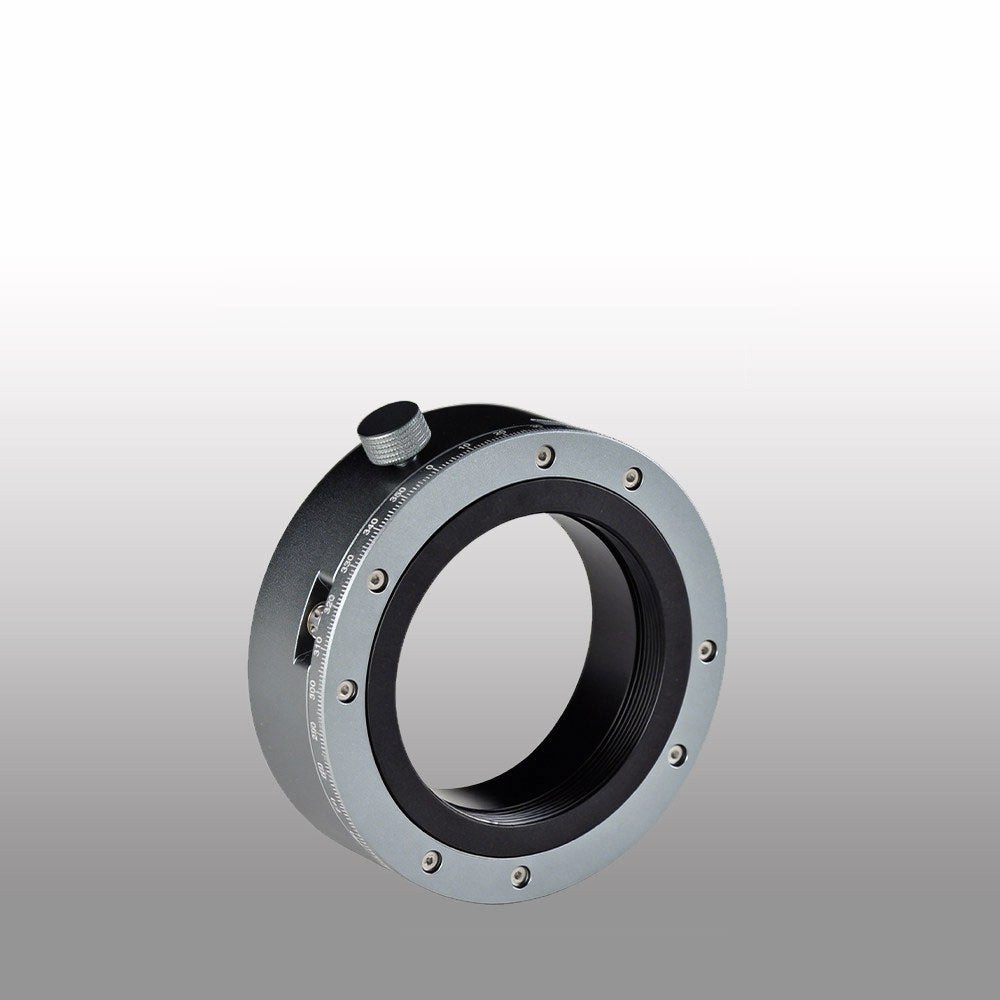

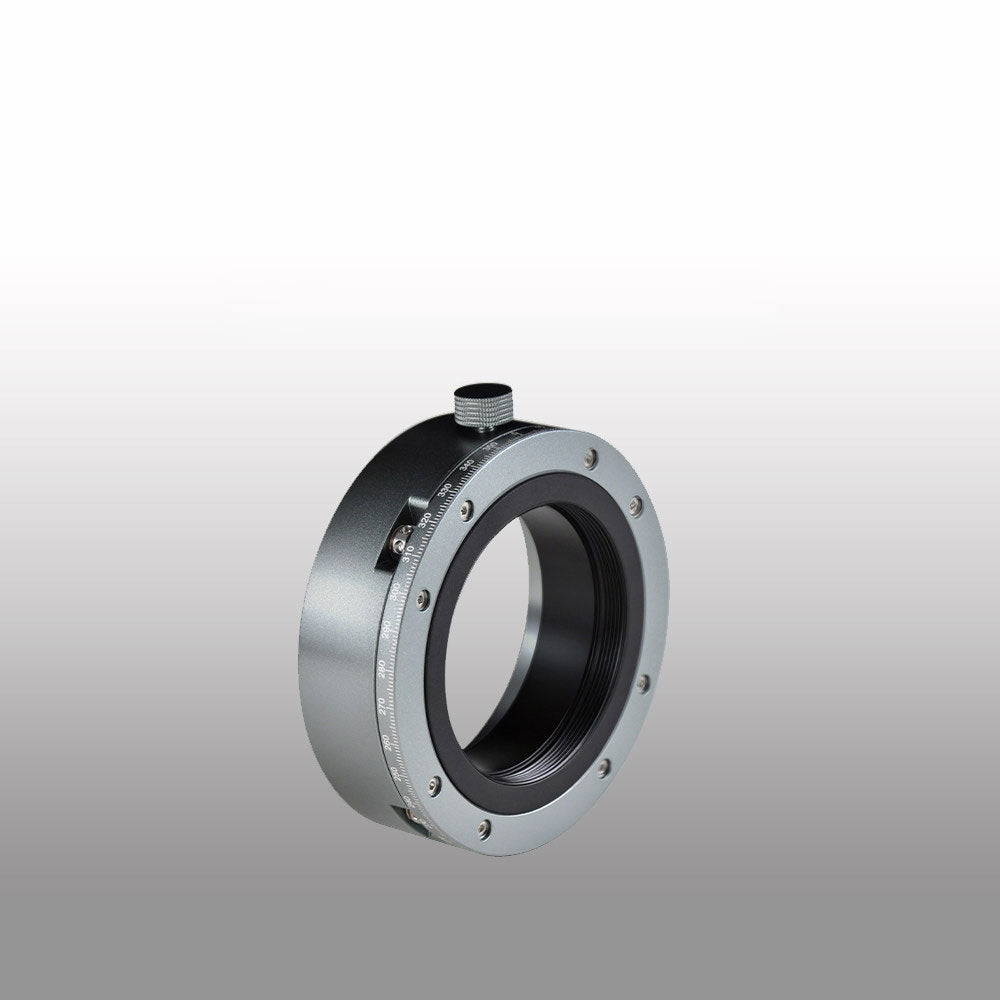

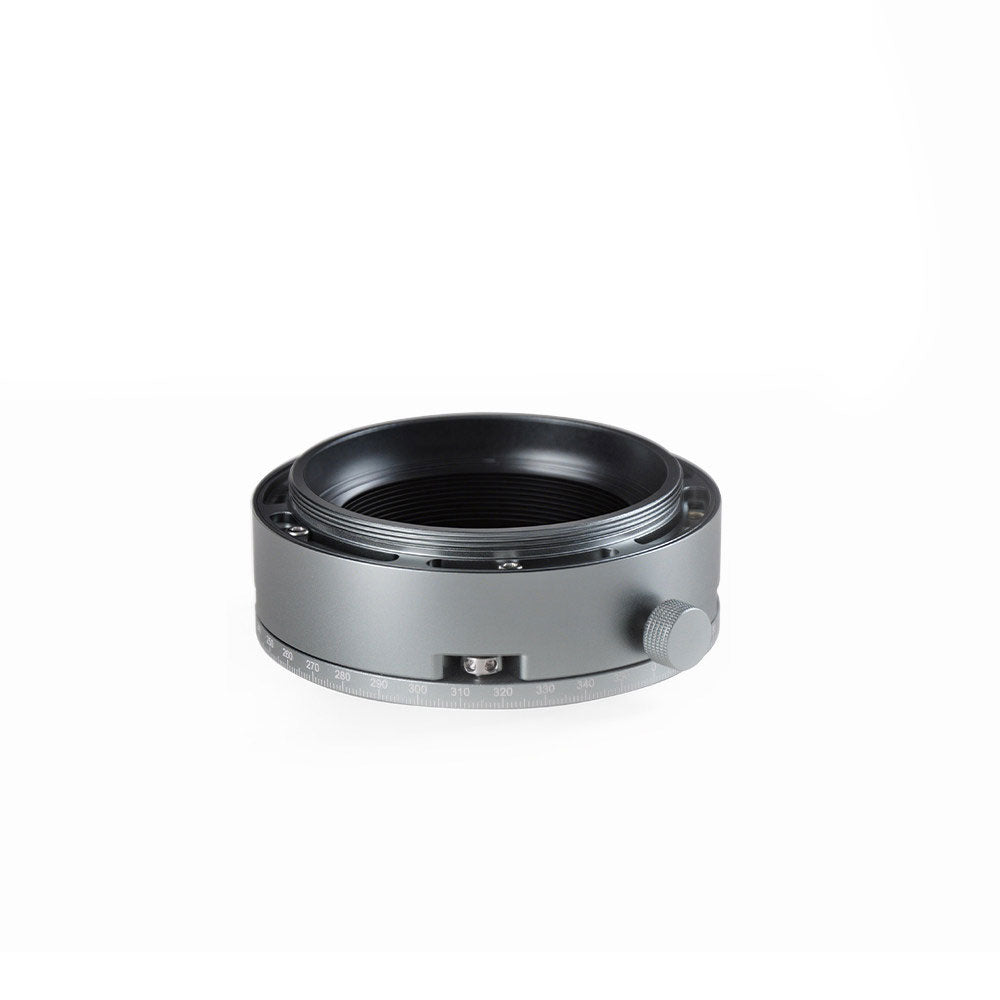

ToupTek New HOPE D60 RotaTilter CAA and Tilt Adjustment 2-IN-1 Astronomy Accessory with M48 Adapter

Specification:
- Product name: HOPE D60 RotaTilter
- Function: CAA + Tilt Adjustment (2 in 1)
- Filter compatibility: M48 and M54 adapters support direct 2-inch filter installation
- Profile advantage: 2mm thinner than the original CAA to preserve more back focus budget
- Tilt mechanism: four-point tilt adjustment with 90-degree spacing
- Operational details: anti-slip ridges, removal holes for H2 hex key, and angle lock screw
- All currently sold HOPE D60 units are equipped with this new RotaTilter and factory-aligned for precise centering.

Key Advantages:
- Direct Filter Installation: M48/M54 adapters can directly mount 2-inch filters without an extra filter drawer.
- Slimmer Profile: A thinner structure frees additional optical path room and lowers the risk of focus travel shortage.
- Front-of-Rotator Tilt: Tilt state remains stable while rotating for framing, reducing repeated re-adjustment.
- Precise Centering: Rotatable mounting ring helps align lock screw position with the telescope 0° reference.
- RotaTilter uses four adjustment screws. Viewed from sensor side to telescope side: counter-clockwise moves the sensor away from telescope, clockwise moves it closer. This enables fine corner-by-corner sensor plane alignment for an even star field.

Package Included:
- 1 x RotaTilter
- 1 x M48 Adapter w/ Dustproof Cover
