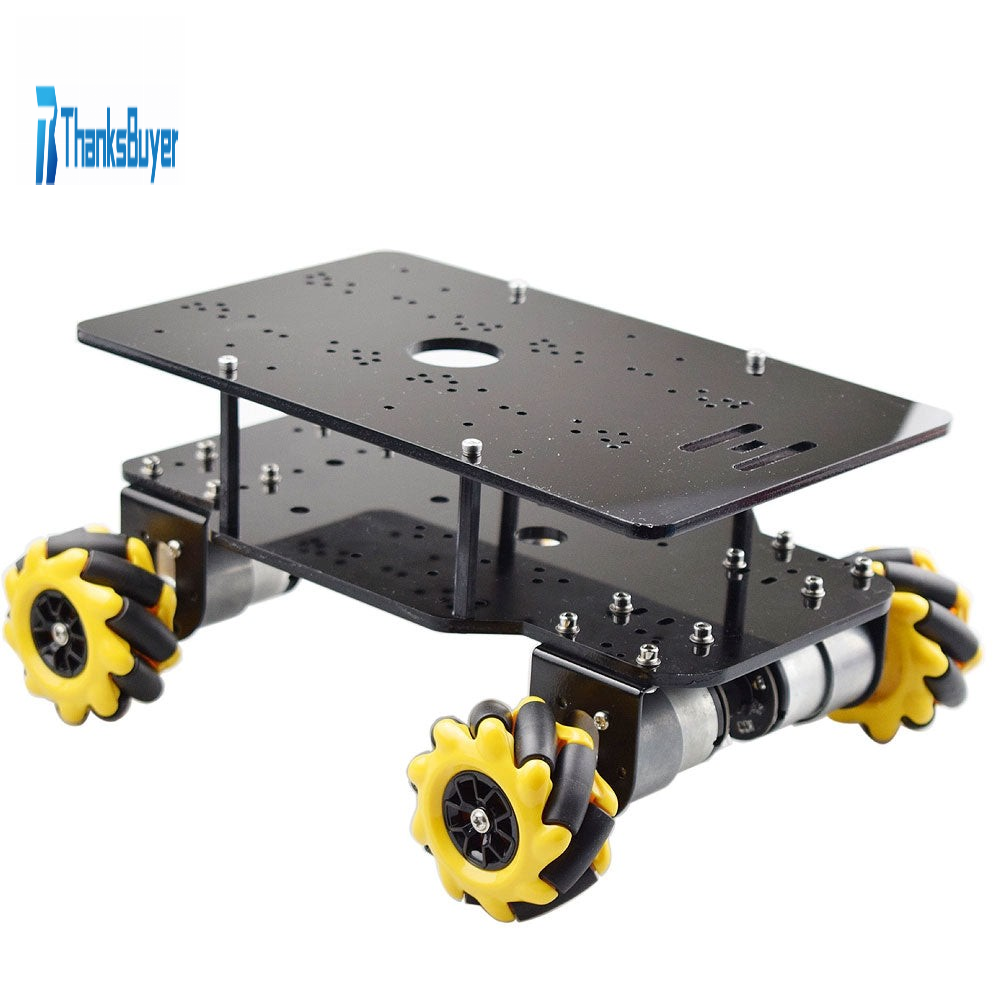

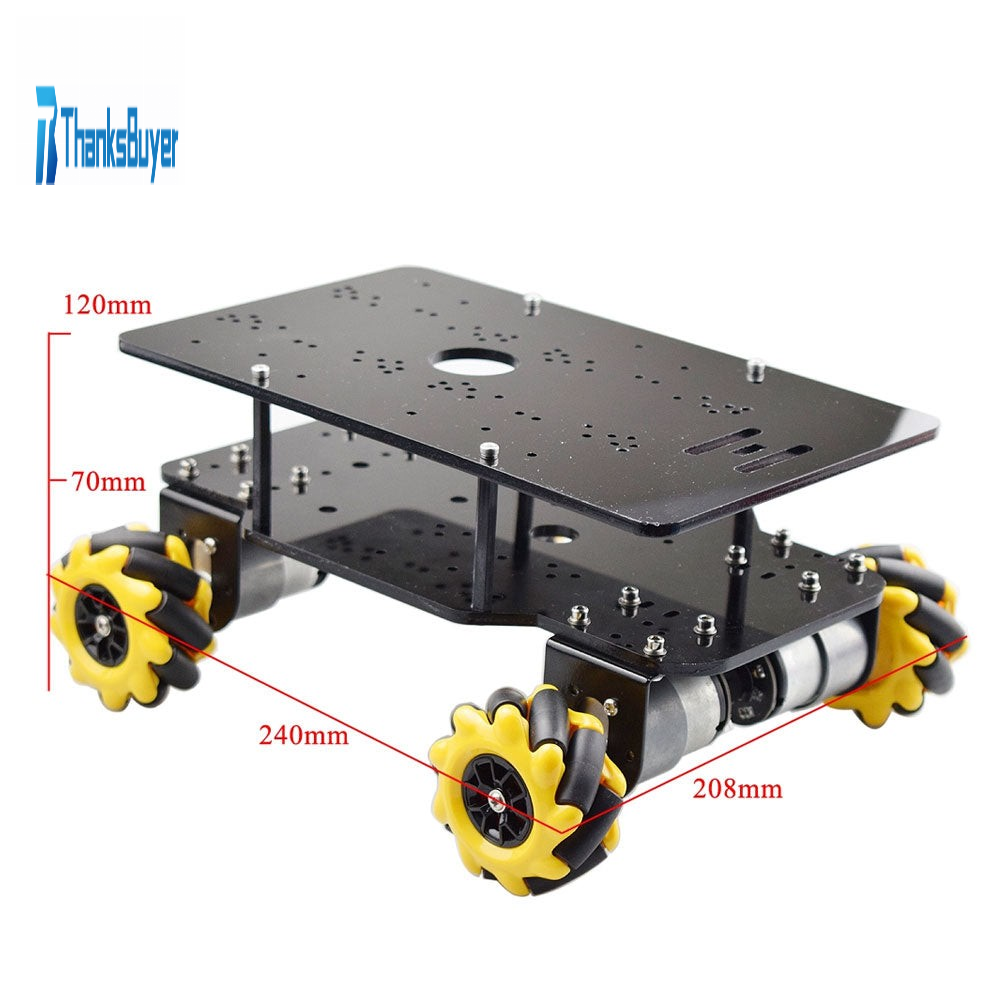

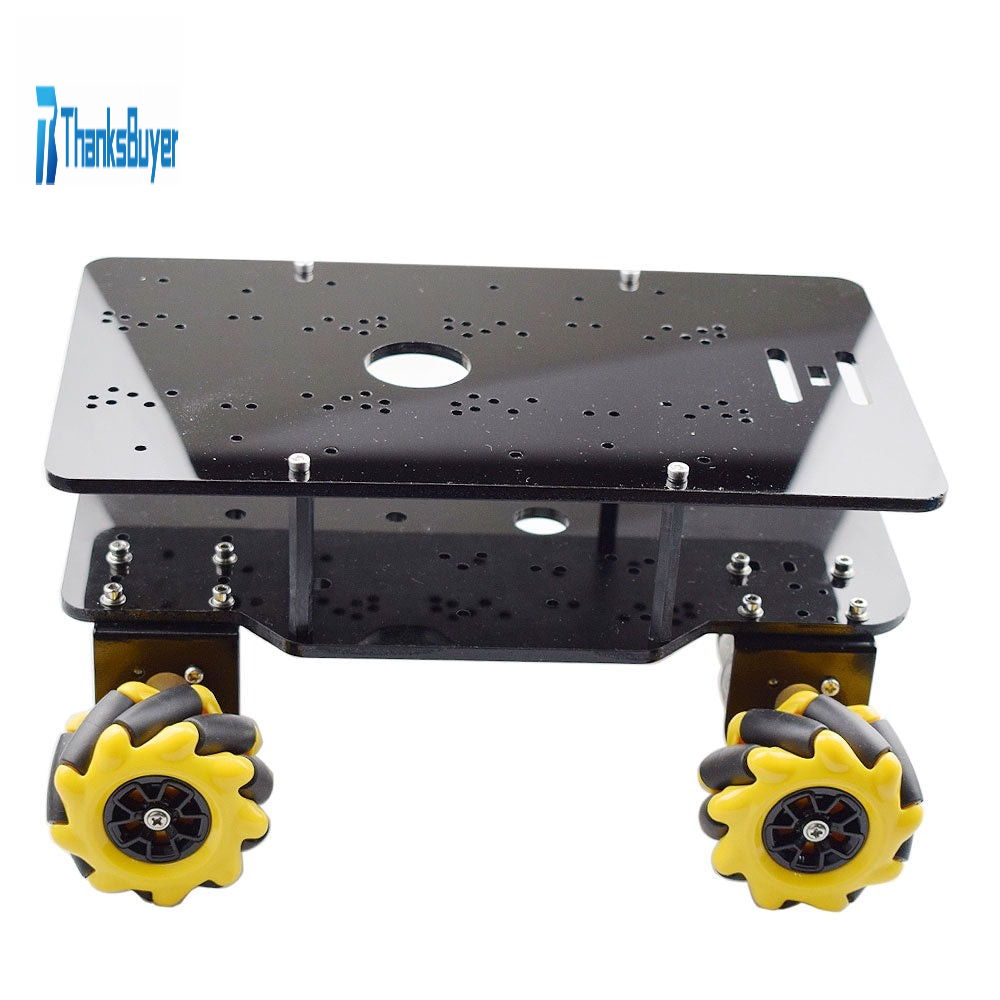

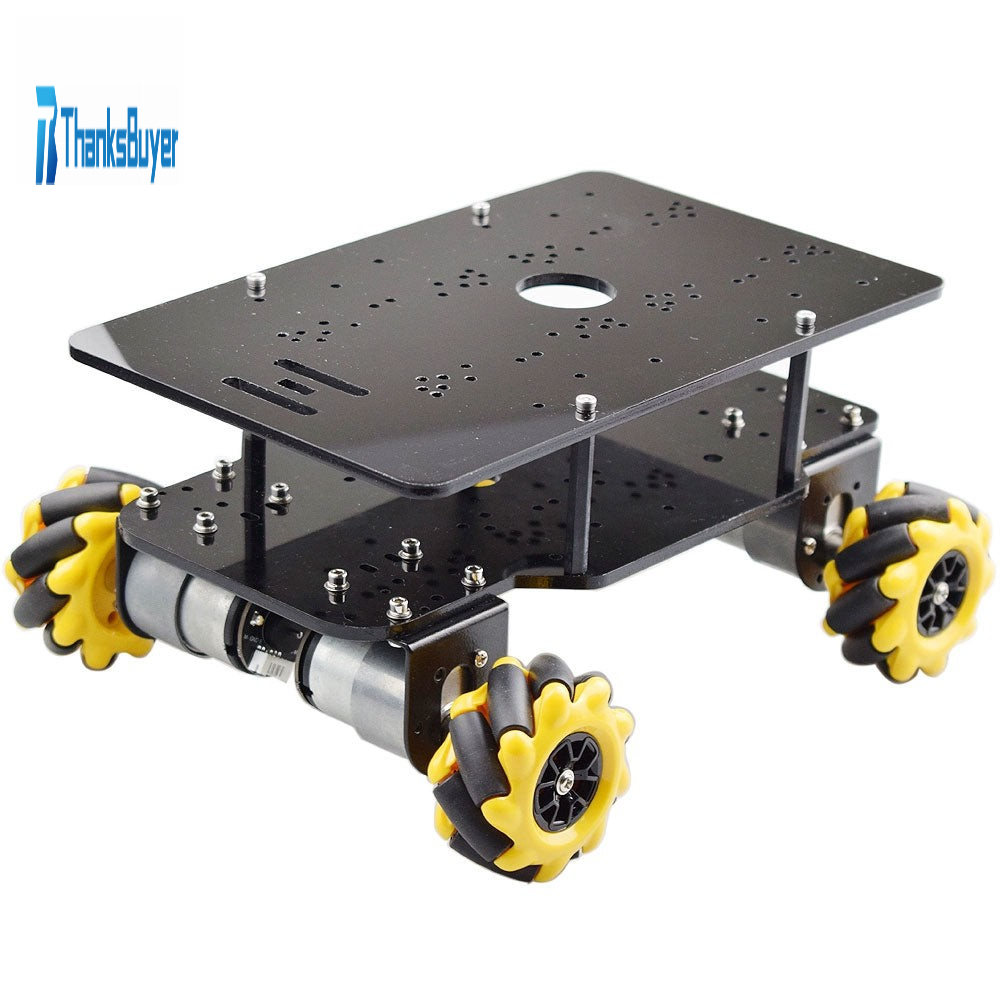

Unassembled Robot Car Kit 5KG Load Mecanum Wheel DC Deceleration Brushed Motor Compatible with Arduino STM32

Unassembled Robot Car Kit 5KG Load Mecanum Wheel DC Deceleration Brushed Motor Compatible with Arduino STM32

Motor Parameter:
- Empty load current: 120mA
- Rated torque: 3.5kg.CM
- Empty speed: 330rpm
- Rated speed: 280rpm
- Rated current: 1A
- Maximum torque: 5KG.CM
- Locked-rotor current: 2.3A

Encoder Parameter:
- Type: AB phase incremental sensor
- Linear speed: 360
- Power supply: 5V
- Interface type: PH2.0
- Magnetic ring: 11 line 22 level
- Function: speed adjustment

Encoder wiring sequence:
- M+: motor power cable “+”
- VCC: sensor positive 5V
- A: sensor signal cable A phase
- B: sensor signal cable B phase
- GND: sensor signal cable “-”
- M-: motor power cable “-”

Package Included:
- 2 x 4mm Acrylic Base Board
- 4 x Motor with Encoder
- 4 x Mecanum Wheel
- 4 x Motor Stand
- 4 x Motor Cable
- 1 x Screw Pack

Note:
- You need to assemble it by yourself.
- Two color of wheel: yellow or black, deliver at random.
