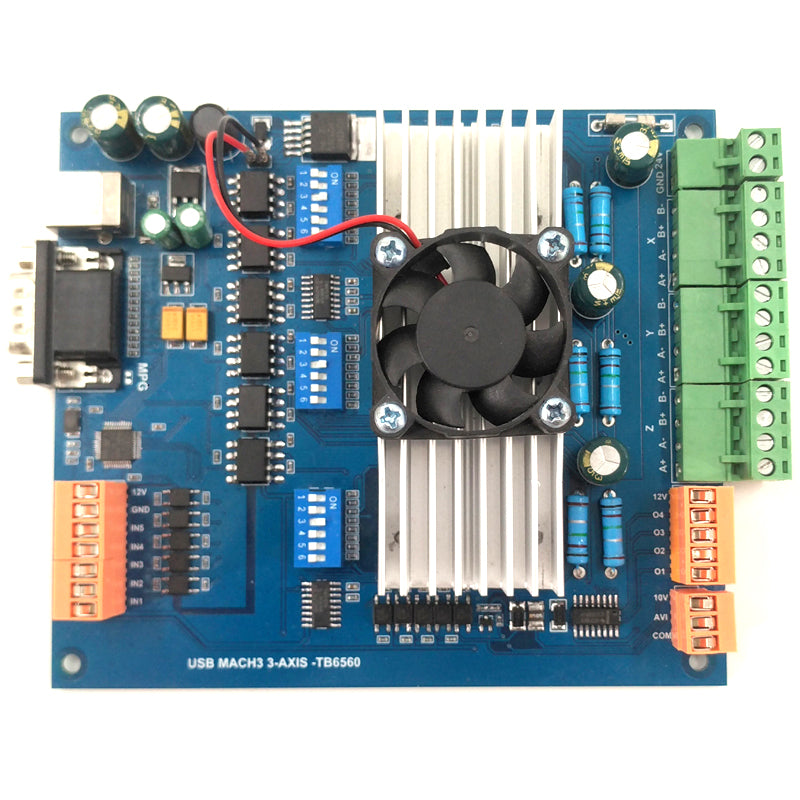

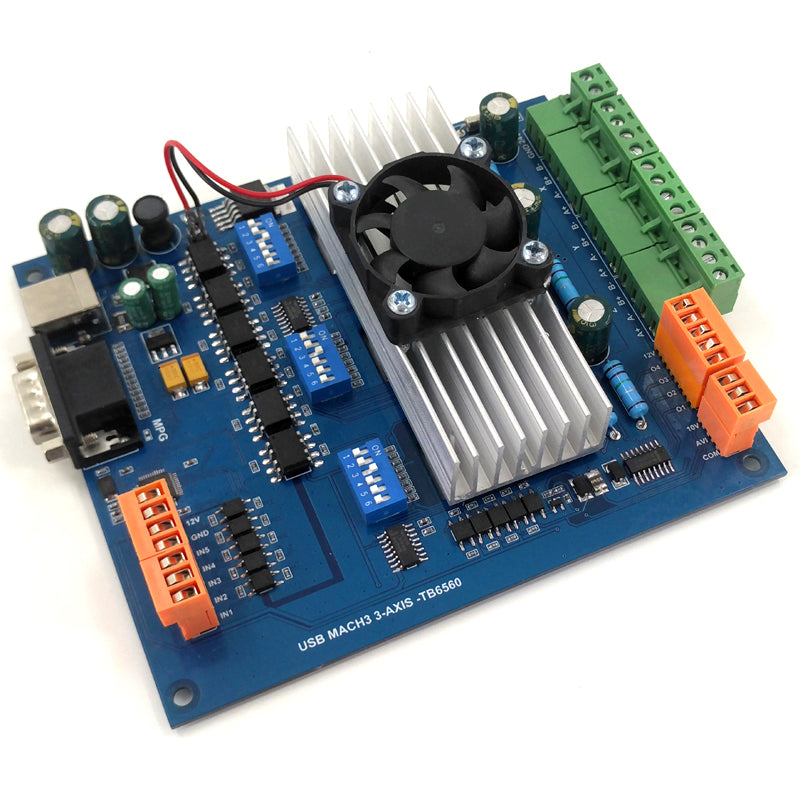

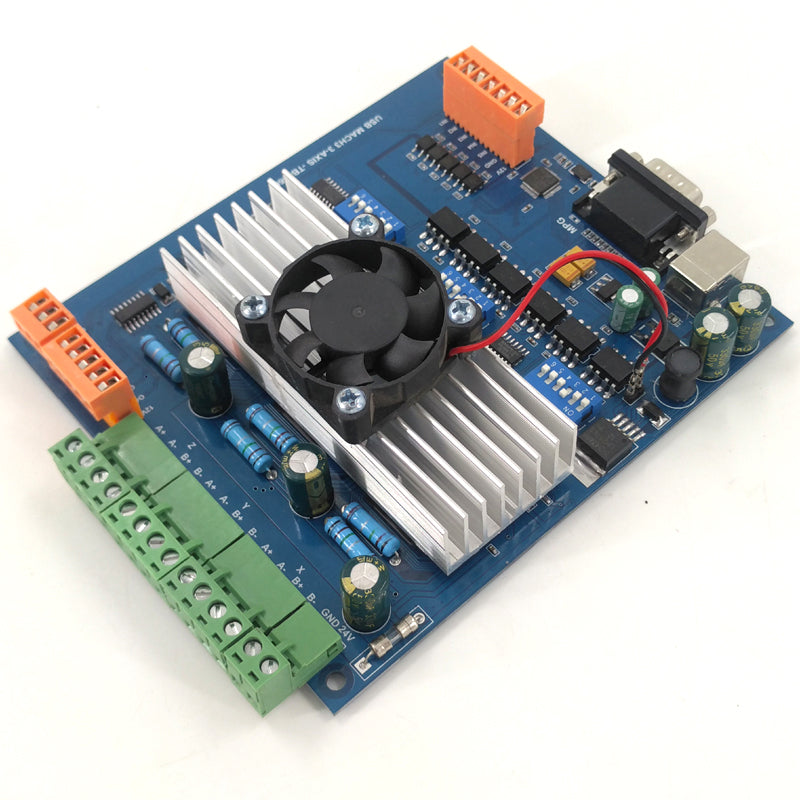

USB MACH3 CNC 3Axis TB6560 Stepper Motor Driver Board with MPG USB Interface + USB Cable + CD

USB MACH3 CNC 3Axis TB6560 Stepper Motor Driver Board with MPG USB Interface + USB Cable + CD

Product Details:
- Motor type: Stepper Motor
- Model Number: TB6560

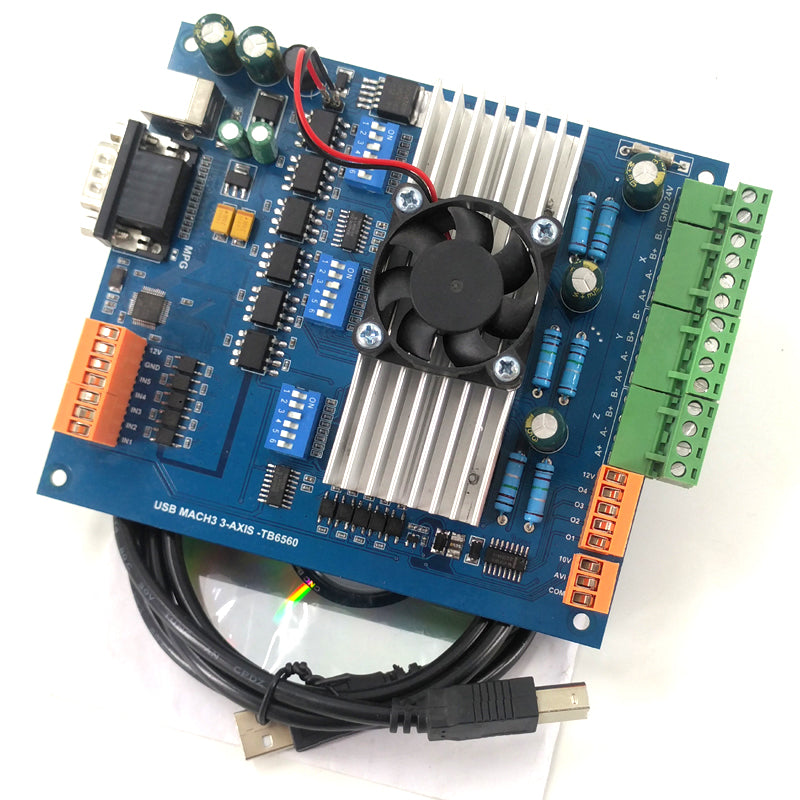

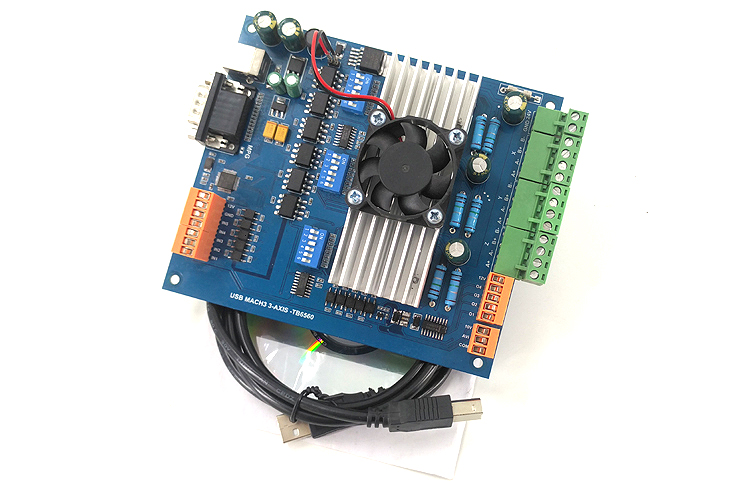

Package Included:
- 1 x USB MACH3 3Axis –TB6560 Board
- 1 x USB Cable
- 1 x CD

Features:
1. Support for 3-axis linkage, you can connect four stepper motor drives or servo drives;
2. Maximum step-pulse frequency is 100 KHz, which is suitable for the servo or stepping motor;
3. 4 general-purpose opto-couplers isolation input: can connect the limit switch, emergency stop switch, auto tool zero, home switch etc.
4. Support for connecting electronic handwheel;
5. Have 0-10V signal output, you can use mach3 software to control the spindle motor speed.
6. 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device;
7. 1 status LED, indicate connection status on the board.
8. Resolution 1, 1\2, 1\8, 1\16 micro stepping output;
9. Four (or three) channles 3.5A adjustable output current for 2/4 phase bipolar stepper driver;
10. Bulid with 4 outputs and 5 inputs.

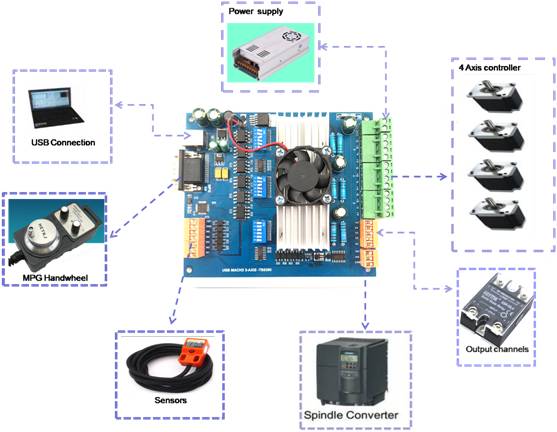

Basic connection diagram:
