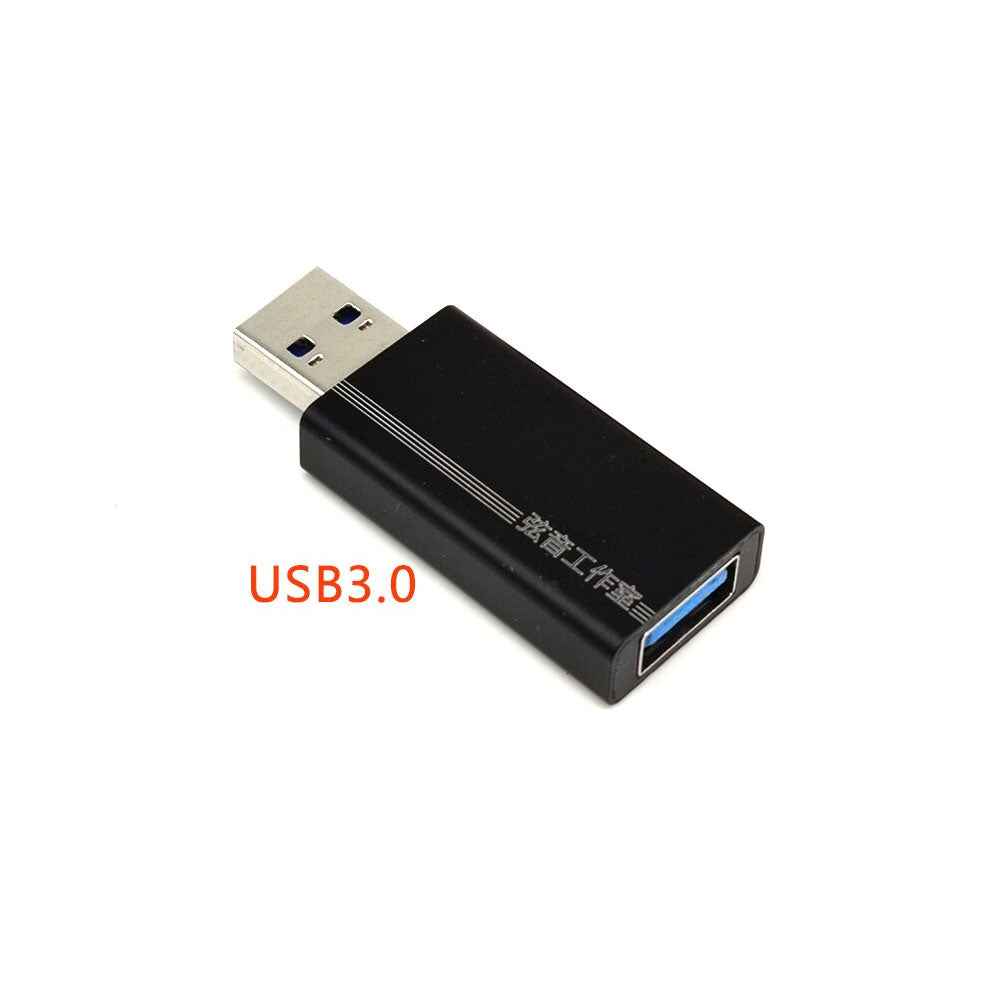

USB3.0 Power Supply Rectifier Filter EMI/RFI/Signal Jitter Elimination 20V Support for QC Protocol

Improvements:
- Withstand voltage of 20V, compatible with various charging voltages.
- Metal shell, high interference environment isolation interference.
- The first generation shell was too long and easily twisted, but now the overall structural hardness has been strengthened and the size has been shortened a bit.

Functions:
- Eliminate signal jitter
- For REBLANCE technology
- ACN3 active noise reduction
- Eliminate EMI (electromagnetic)
- Eliminate RFI (Radio Frequency Interference)

Features:
- Fully isolated structure, 1 group of high-power LDOs for USB output voltage stabilization, and 4 groups of LDOs for branch voltage stabilization of the main chip.
- Isolate "common ground noise", isolate "electromagnetic interference", handle "ripple interference", repair signal "square wave waveform", repair signal "square wave level", optimize "power supply environment".

Interface:
- Input: USB 2.0
- Output: USB 2.0
- External power supply: DC 5V 5525

Specification:
- USB power supply isolation: ≥1500V
- USB signal isolation: ≥1500V
- USB built-in isolation current output: 500mA
- USB transmission specification: USB2.0 480Mbps
- DC external independent power supply: plug in the external power supply and automatically switch to external power supply
- DC external independent power supply isolation: using the original power supply with isolation function
- Shell material: aluminum alloy spray insulation
- Product size: 81 x 71 x 25mm

Application Recommendation:
- Audio USB common ground noise isolation/ripple burr isolation
- Audio quality optimization
- Industrial/Medical - Interference Isolation of High Frequency Collectors
- Isolation/Medical - Isolation/Protection of Devices Prone to Leakage
- Industrial/Audio - Voltage Differential/Common Ground Protection Caused by Span Wiring

Package Included:
- 1 x USB Rectifier Filter

FAQ:
Q: Does it need to install a driver?
A: No need to install a driver.

Q: Are other non PC devices such as industrial equipment, digital broadcasting, car consoles, mobile phones, routers, etc. applicable?
A: All USB ports are compatible.

Q: Is the USB 3.0 external hard drive enclosure suitable?
A: Applicable, but the speed will be reduced to a 2.0 480mbps rate, which is fully sufficient for lossless blue light.

Q: Can two/three products be connected in series for better results?
A: It's not necessary, but there is a scenario worth using: when USB is used for long-distance transmission, its signal repair/level repair function can be cleverly used to compensate for the "distortion", "interference" and "voltage drop" of the signal during transmission, thus achieving the purpose of long-distance transmission.

Q: What are the characteristics of the sound used in audio systems?
A: Used for audio, it reduces turbidity and sharpness, making the sound appear dense at all frequencies even after being clean. Low frequency drumming actually feels dense, deep, and authentic.
