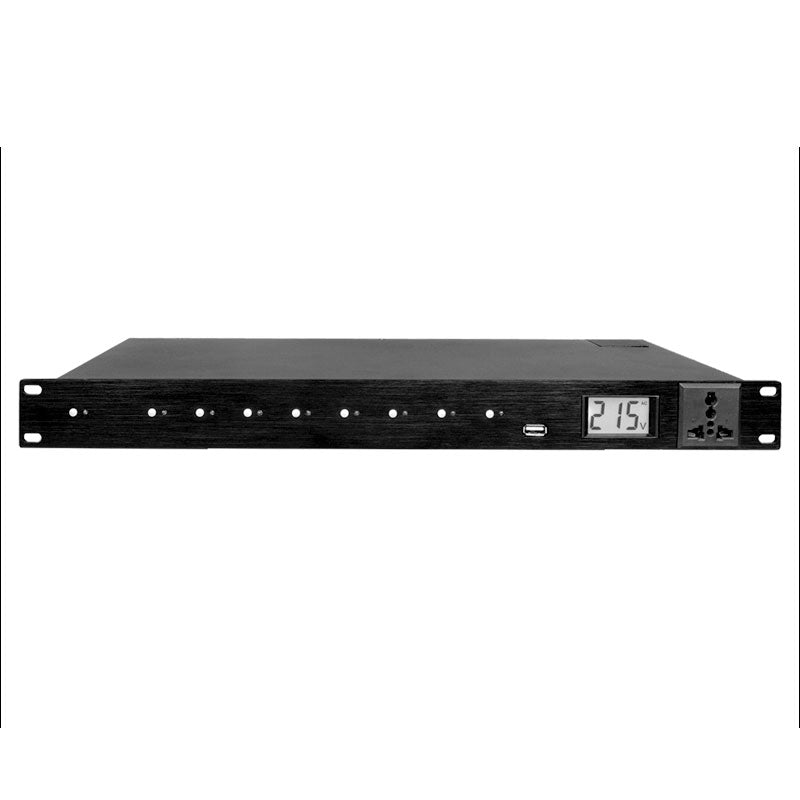

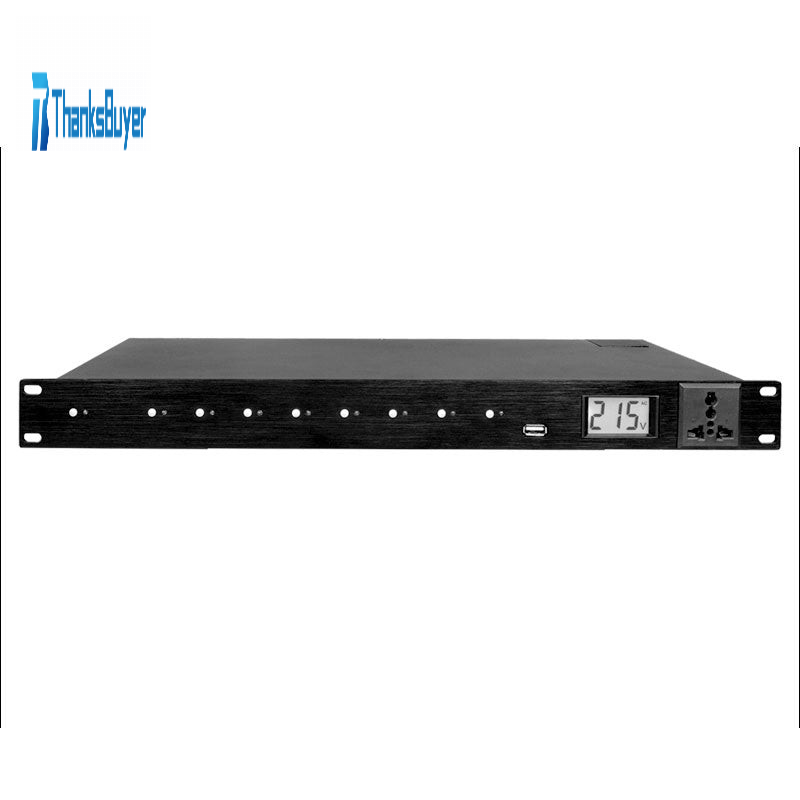

V-8232 9-Channel Power Sequencer Controller w/ USB Port & Voltage Display for Central Control System

V-8232 9-Channel Power Sequencer Controller w/ USB Port & Voltage Display for Central Control System

Application:
It is used in command and control centers, large multimedia conference halls, multi-function halls, training centers, multimedia classrooms, high-end villas, hotels, smart homes, etc. It can be used with 4-5pcs 1000W-1500W power amplifiers.

Specifications:
- Maximum input current: 60A
- Maximum output current of a single channel: 30A
- Working voltage: 220V 50-60Hz
- Power per channel: 3000W
- Input and output voltage: AC input voltage = AC output voltage
- Output power supply socket: Universal socket, in line with European and American standards. The front panel has a pass-through universal socket and the rear panel has 8 controlled universal sockets
- Socket material: Each socket is made of phosphor copper, which is installed only after passing inspection
- The interval between each switch: 1 second. And each channel has an indicator light
- Relay: Songle relay
- Circuit board: 60% high-purity tin, high-end shunt technology, strengthened and thickened
- Transformer: A&C original transformer
- RS232 interface for central control system: Rear RS232 port for central control system. RS232 communication interface: DB9FM
- Built-in power cable: Built-in cable 2.5 square per way (external cables are not provided)
- Voltage display: With. Diode digital voltage display
- Chassis height: 1 U (cabinet mounting standard)
- Switch button: Uni-direction push-button switch
- Lighting configuration: Yes. With a 5V engineering lamp USB socket
- Controlled function: With (after connecting to a central control system, each channel can be controlled separately)
- Online support: Yes
- Filter: Capacitor filtering
- G.W.: 6.3kg/13.9lb

Package Included:
- 1 x Power Supply Sequencer
