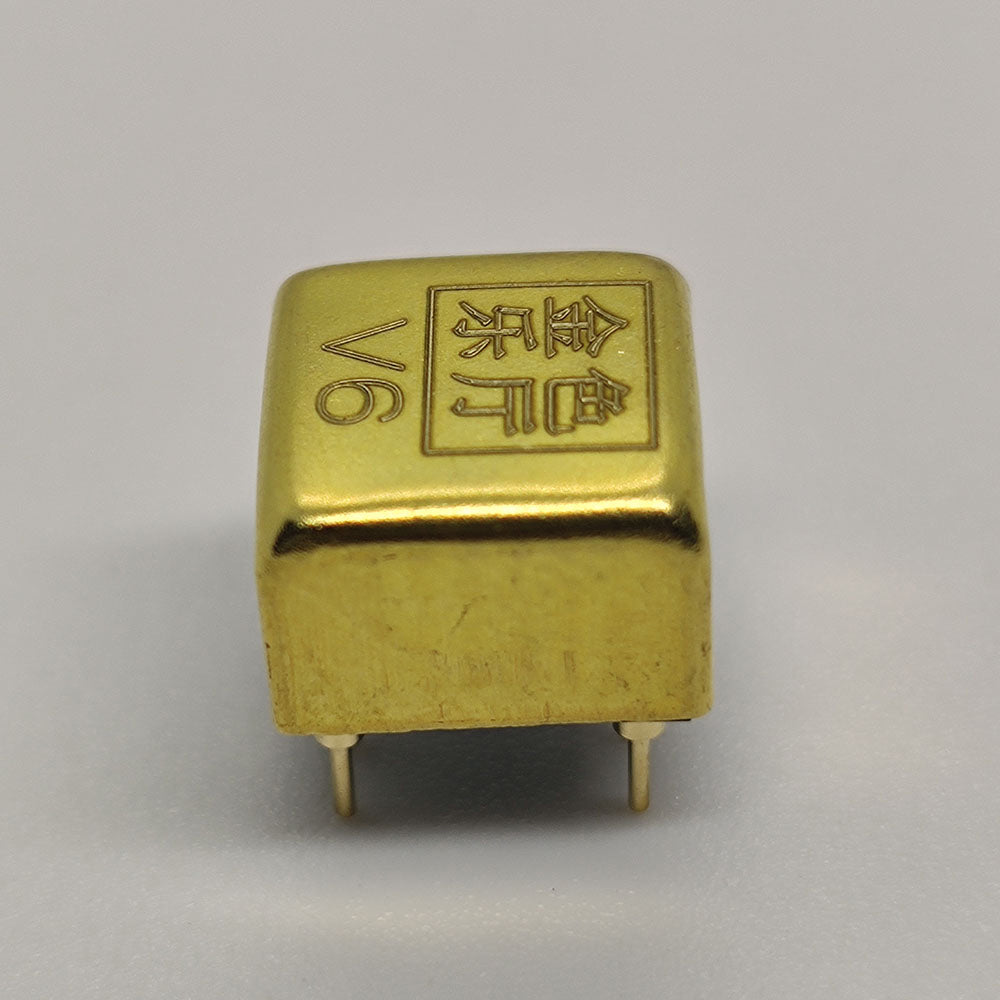

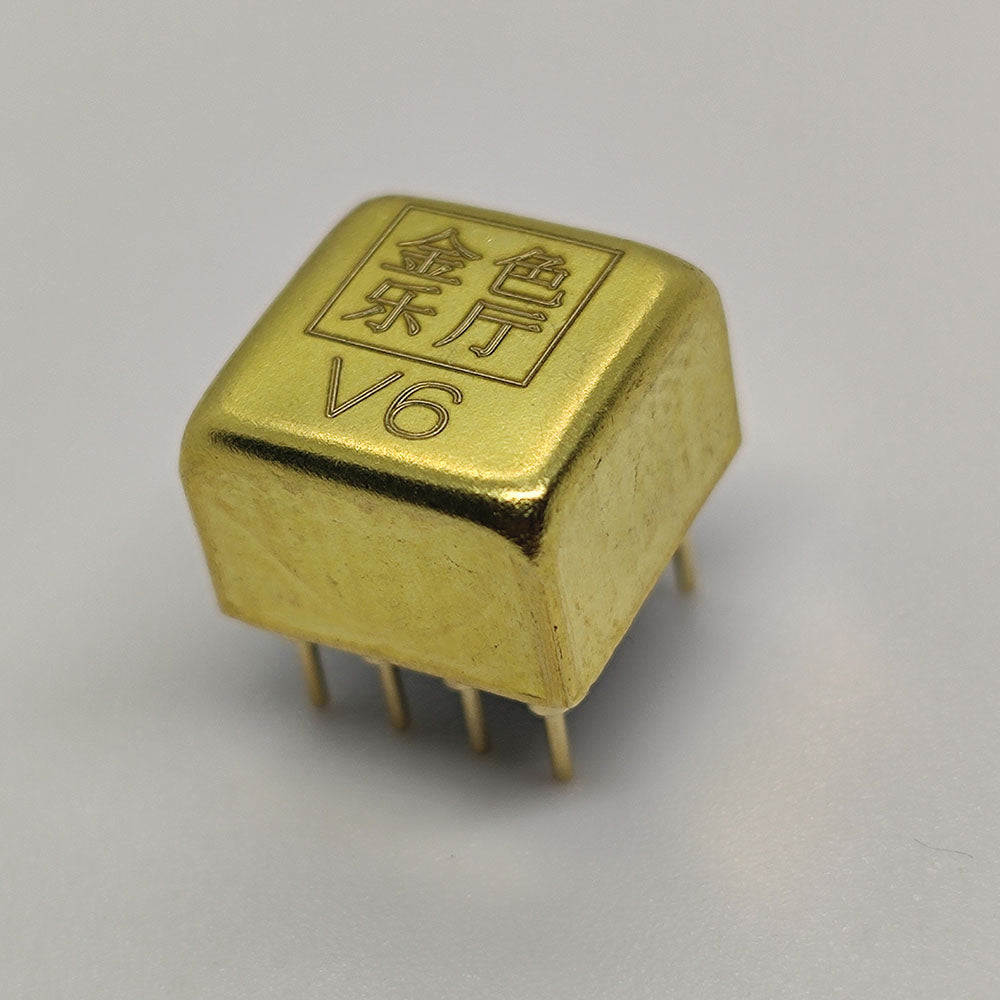

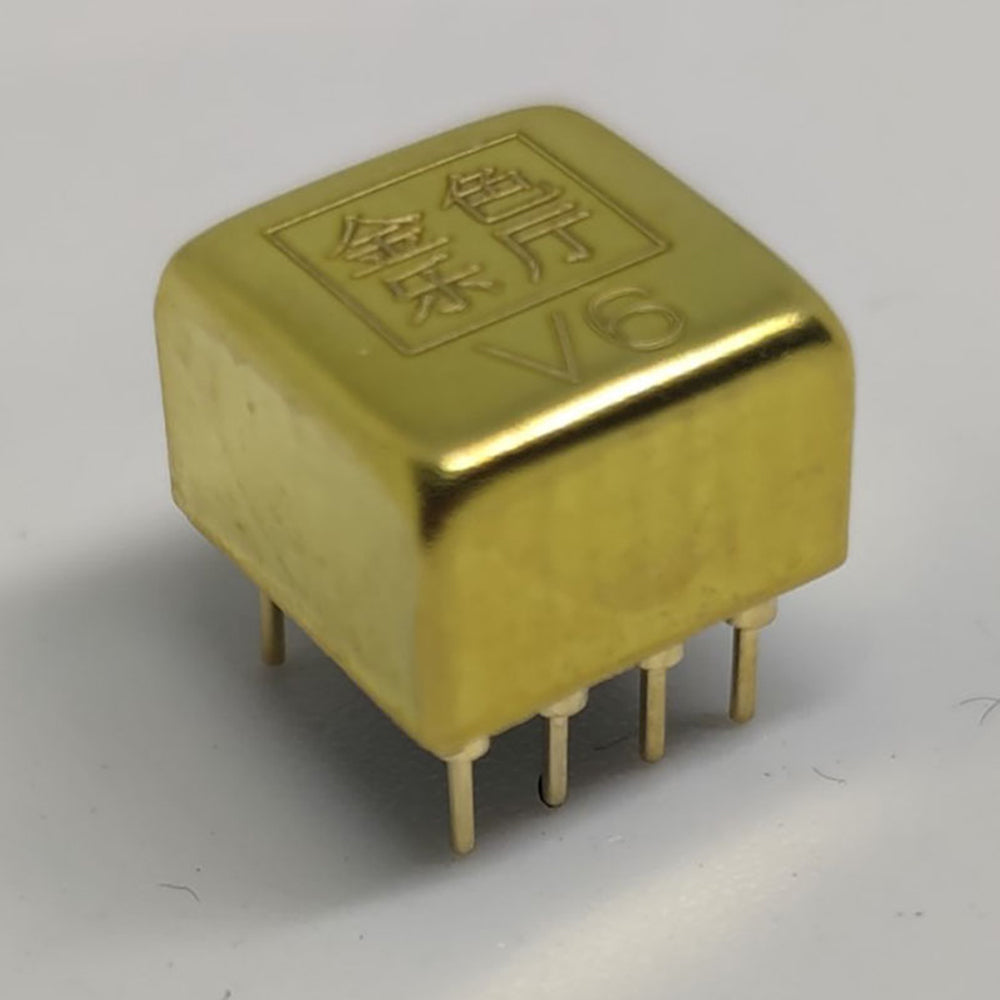

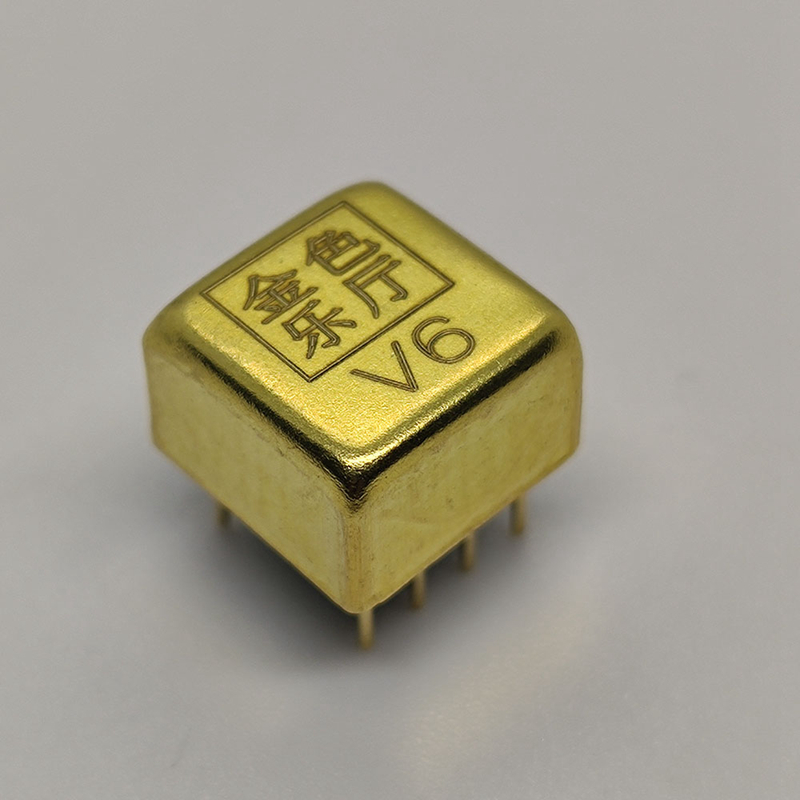

V6 Dual Op Amp to Upgrade V5i-D Vivid Classic Gold Seal SS3602 MUSES02 MUSE01 for DAC Headphone Amp
Couldn't load pickup availability
V6 Dual Op Amp to Upgrade V5i-D Vivid Classic Gold Seal SS3602 MUSES02 MUSE01 for DAC Headphone Amp
Description:
The V6 dual op amp is a member of a dedicated op amp and is a state-of-the-art flagship dual op amp. It is suitable for hifi fans to improve sound quality in one step, and upgradeable to replace v5, V4, AMP9922AT, AMP9920AT, MUSES02, MUSES01, AD827, SS3602, OPA2604, NE5532, LME49720, etc.
The v6 sound is warm and hydrated, and the tri-band is smooth and compliant. The background sounds very quiet and ear. The sound quality is very high and emotional. Its details dynamics can also be accurately expressed, the air is excellent, and the sound is very clean, transparent and sweet.
Indicator Characteristics:
- Amplifier type: audio dedicated
- Amplifier channel number: Dual op amp
- Rated voltage: ±3 to ±16V
- Conversion rate: 9V/μs
- Bandwidth: 18MHz
- Low noise: 2.5nV/√HZ at 1KHZ
- Low distortion: 0.00003% at 1KHZ
- Current-input bias: 450nA
- Voltage-input offset: 290μV
- Working temperature: -40°C to 85°C

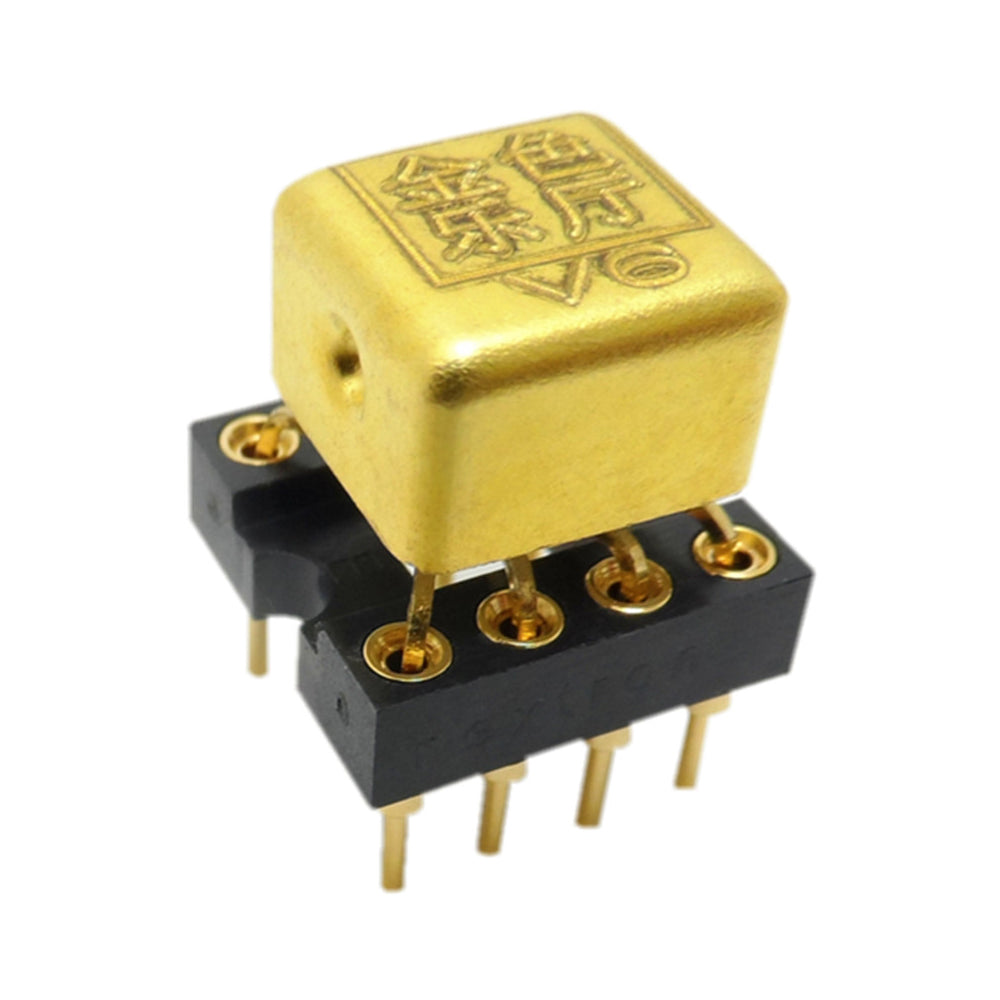

- Installation type: Dual in-line module (for replaceable standard inline DIP8 package)
Package Included:
- 1 x Op Amp Module
