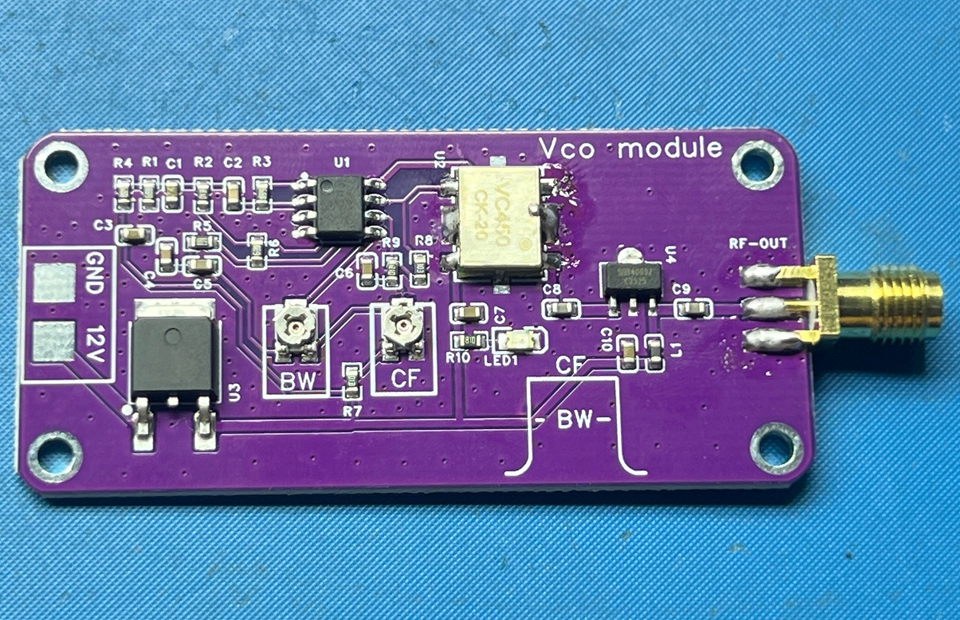

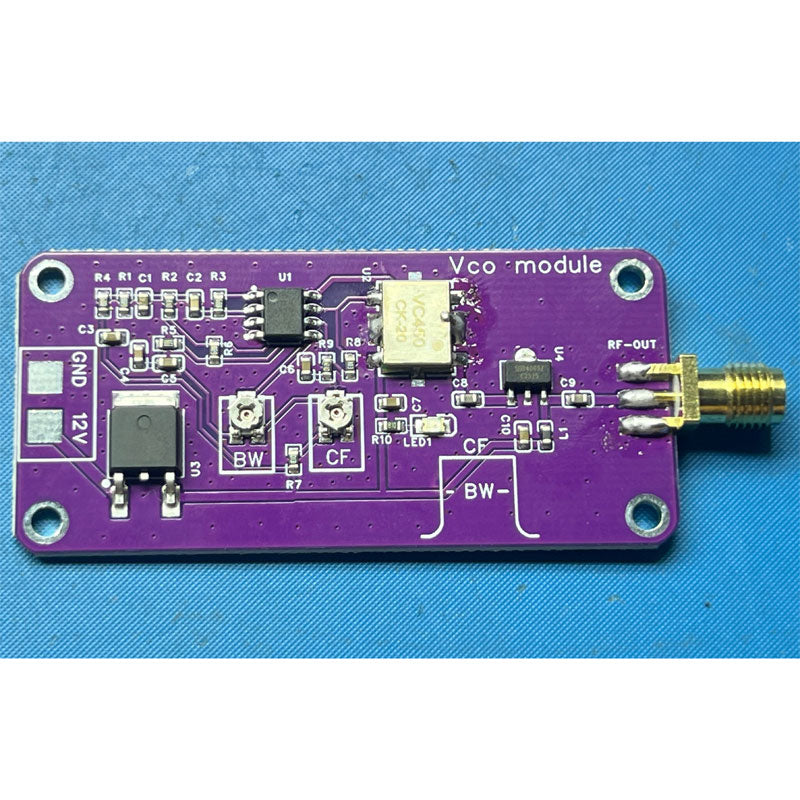

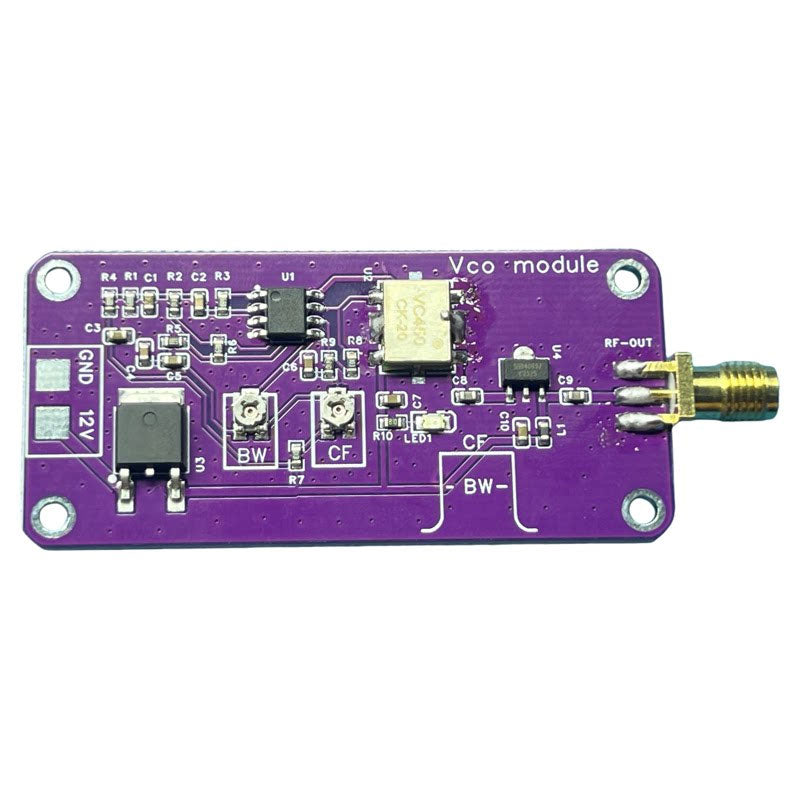

VCO Module RF Signal Source Wideband Voltage Controlled Oscillator with SMA Female Connector

Specifications:
- Power supply: 9 - 12V (it is recommended to use low noise linear power supply)
- Working current: 45mA
- Output frequency range: 400 - 500MHz/850 - 960MHz/2.2 - 2.4GHz (optional)

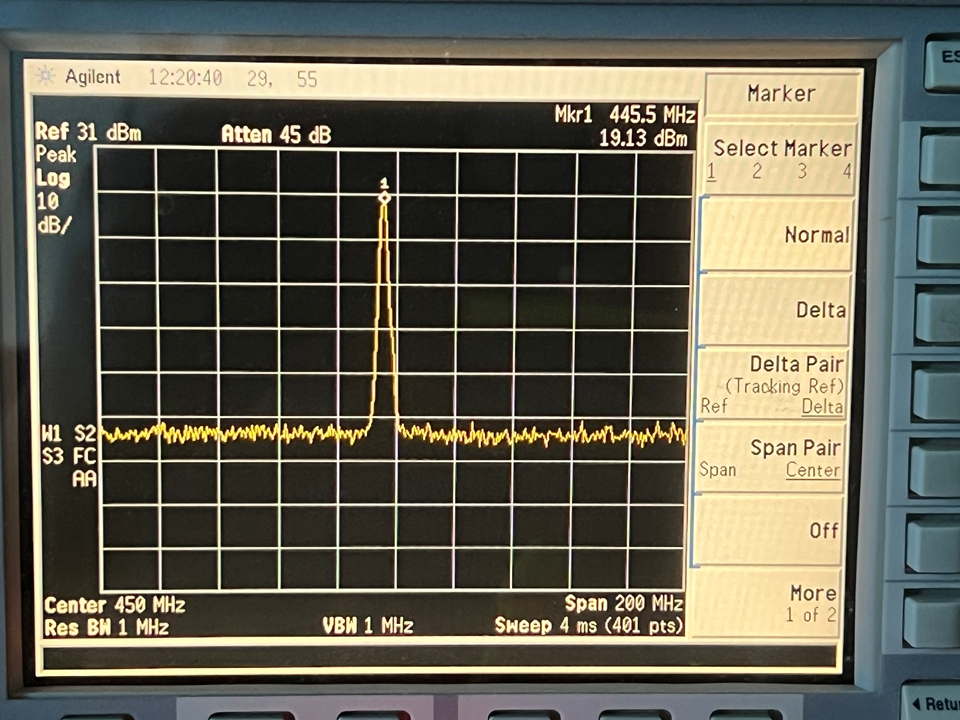

- Output power: +19dBm

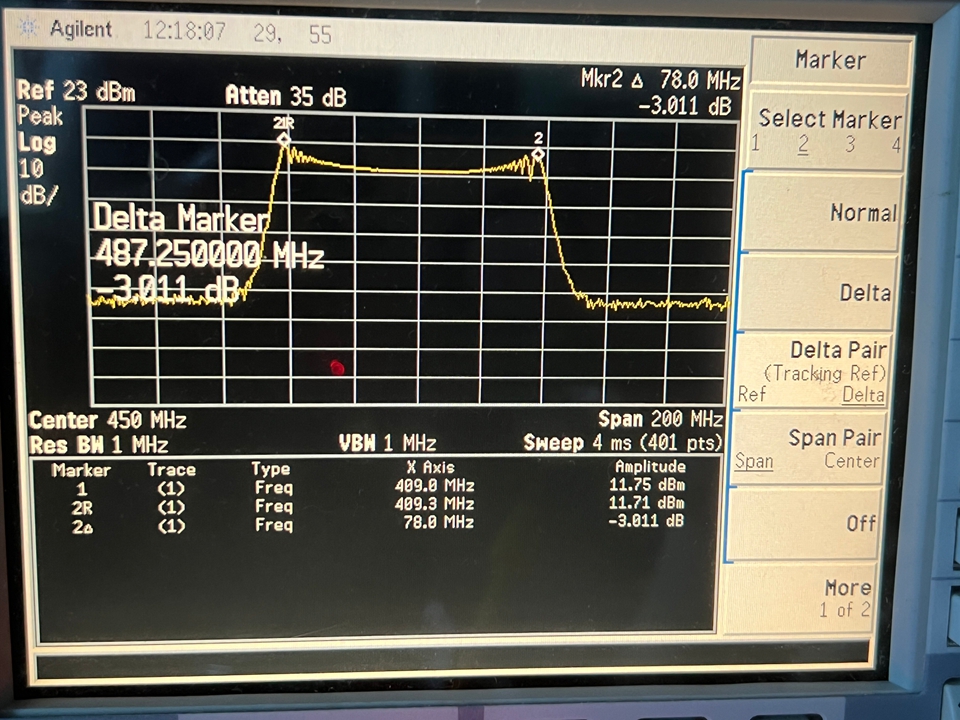

- Sweep bandwidth: ≥80MHz
- Output waveform: non sinusoidal wave (To output a sine wave, a low pass filter is required.)
- Second harmonic suppression: ≥4dBc
- Output impedance: 50 ohm
- Input and output interface: SMA female connector
- Module size: 60 x 29mm (excluding the SMA connector length)

Package Included:
- 1 x VCO Module
