WYDZ-LNA-10M-8G-8dB RF LNA 50ohms Wideband Low Noise Amplifier with SMA Female Connector

WYDZ-LNA-10M-8G-8dB RF LNA 50ohms Wideband Low Noise Amplifier with SMA Female Connector

Description:
- It is an ultra wideband amplifier with full frequency range 10M-8000M, noise coefficient ≤ 4.5, gain 8dB, which has very good flatness in the entire frequency range, 5V power supply, can be used as an input low noise amplifier for broadband receivers, and can also be used as a driving stage for local oscillator signals in mixers.

Specification:
- Working frequency: 10MHz - 8000MHz
- Working voltage: 5V/70mA

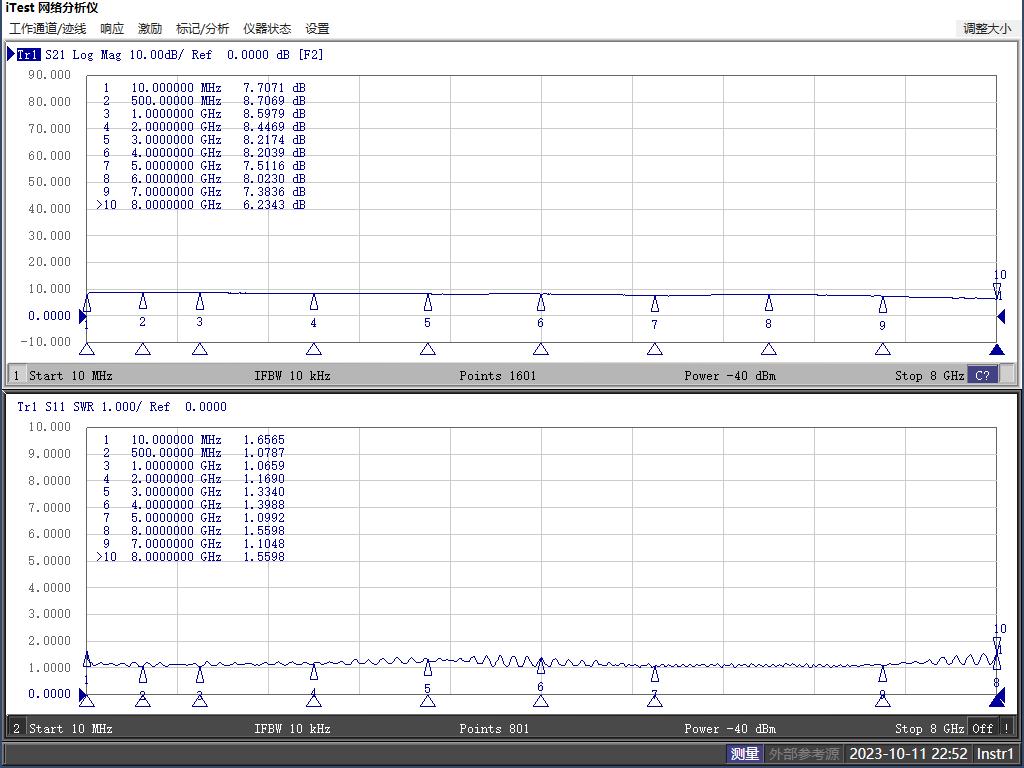

- Gain: 8dB at 10M-8000M
- NF: 4.5dB at 4000M
- P1dB: 13dB at 4000M

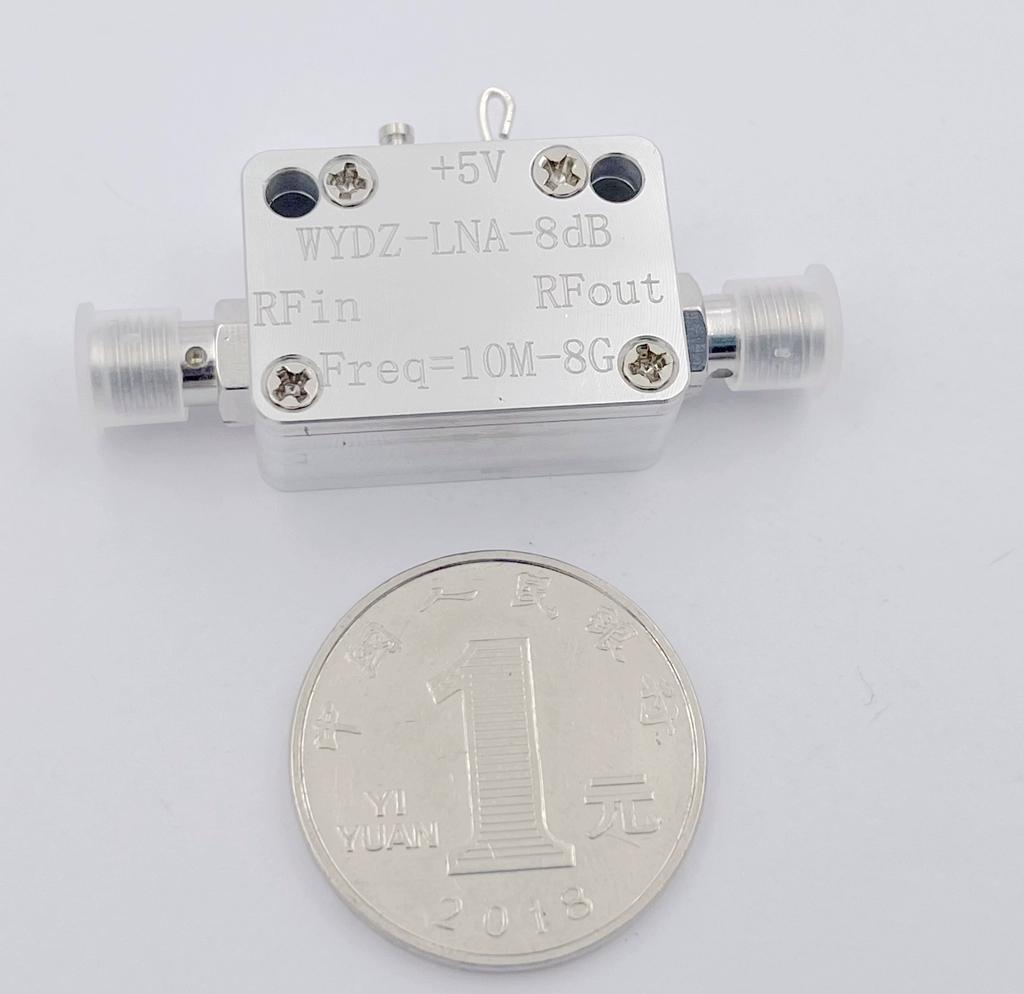

- Dimension: 26 x 18 x 12mm (excluding the length of connector)

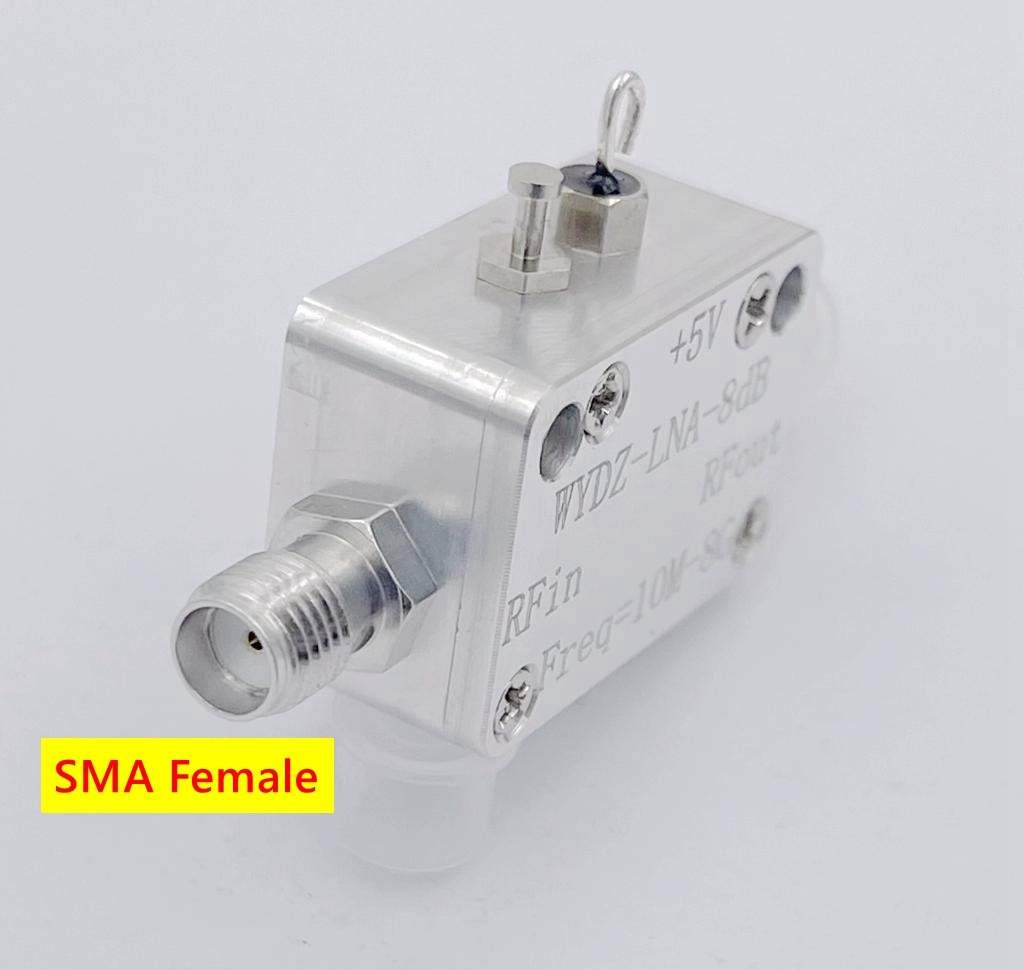

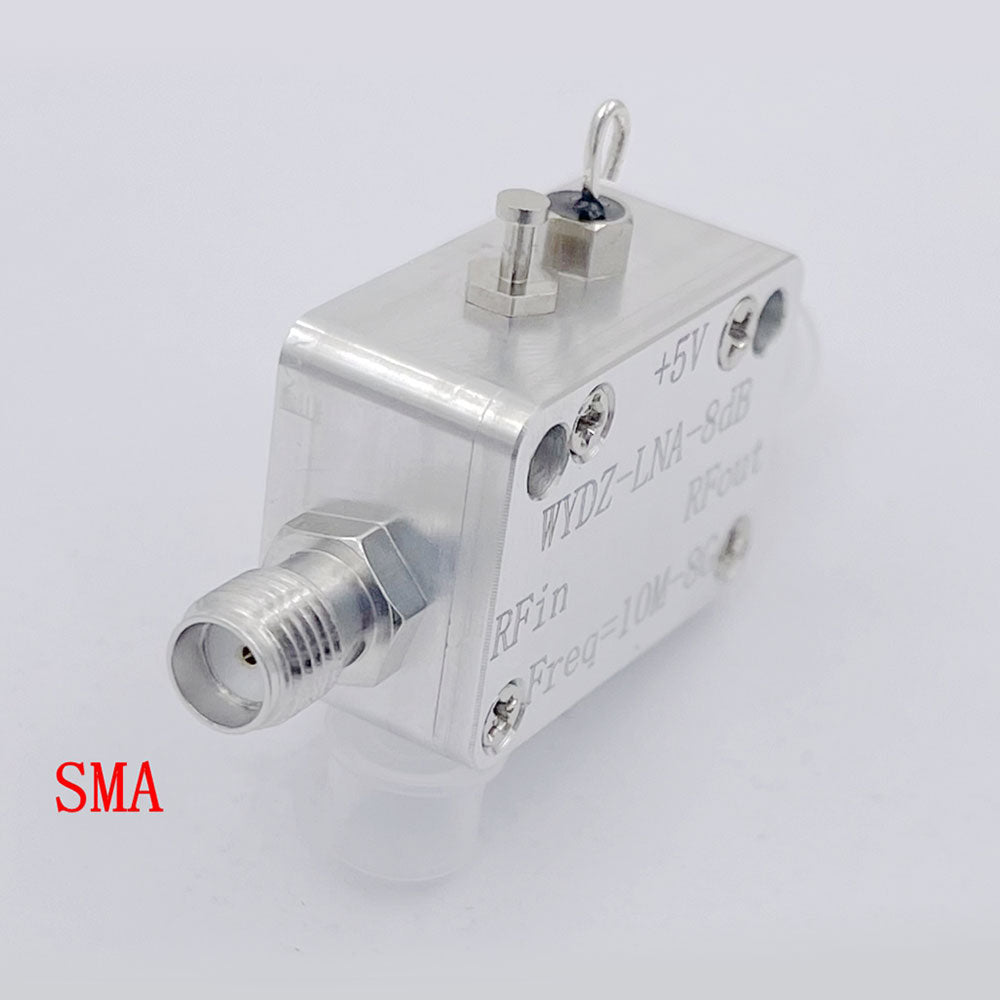

- Connectors: 3.5mm SMA female connector
- Impedance: 50 ohms

Package Included:
- 1 x LNA
