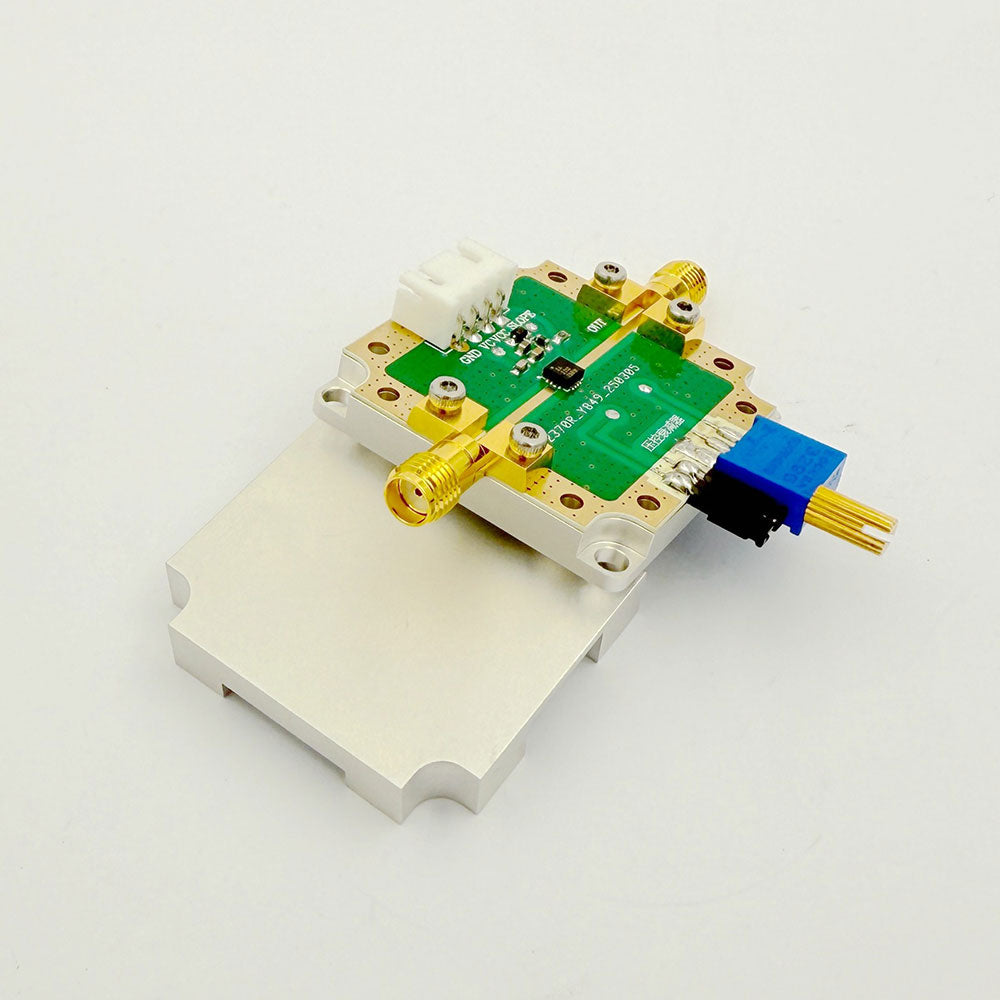

WYDZ-RFSA2113-30DB-ATT 1MHz-8GHz 0-2.5V Voltage Controlled RF Attenuator Module with SMA Female Connector

Specification:
- Product size: 3.5 x 3.5cm
- Input and output connector: 3.5mm - SMA female connector
- Frequency range: 1MHz - 18GHz
- Power supply: +3V to 5V
- Control voltage range: 0 to 2.5V
- Attenuation dynamic range: 0 to 30DB
- RF terminal power: +29dBm

Package Included:
- 1 x RF Attenuator Module
- 1 x External Silicon DuPont Wire

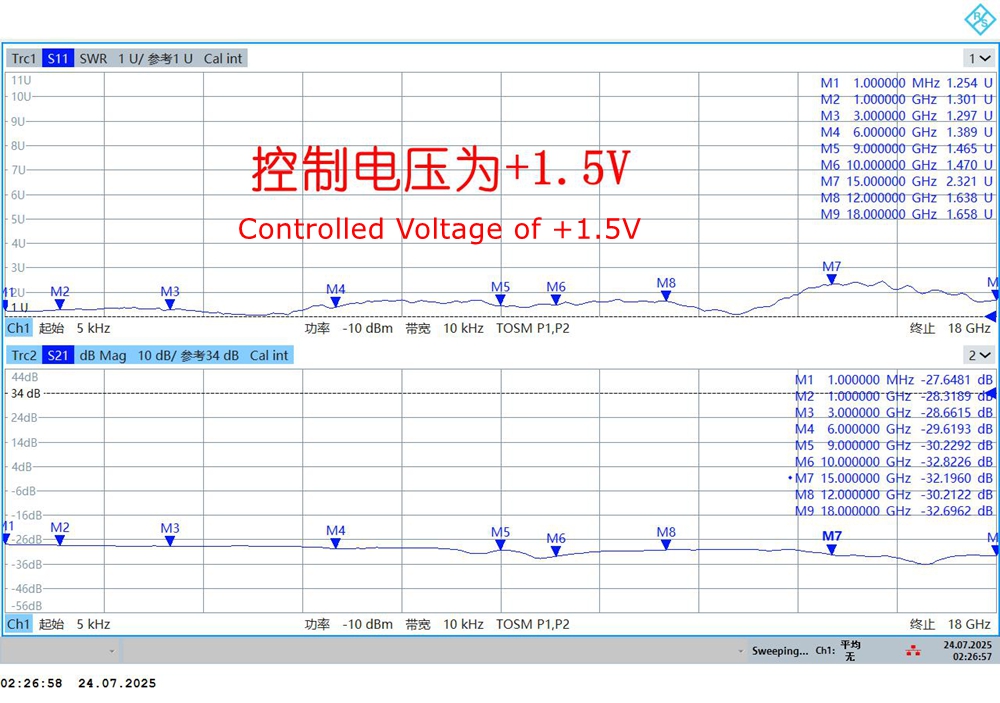

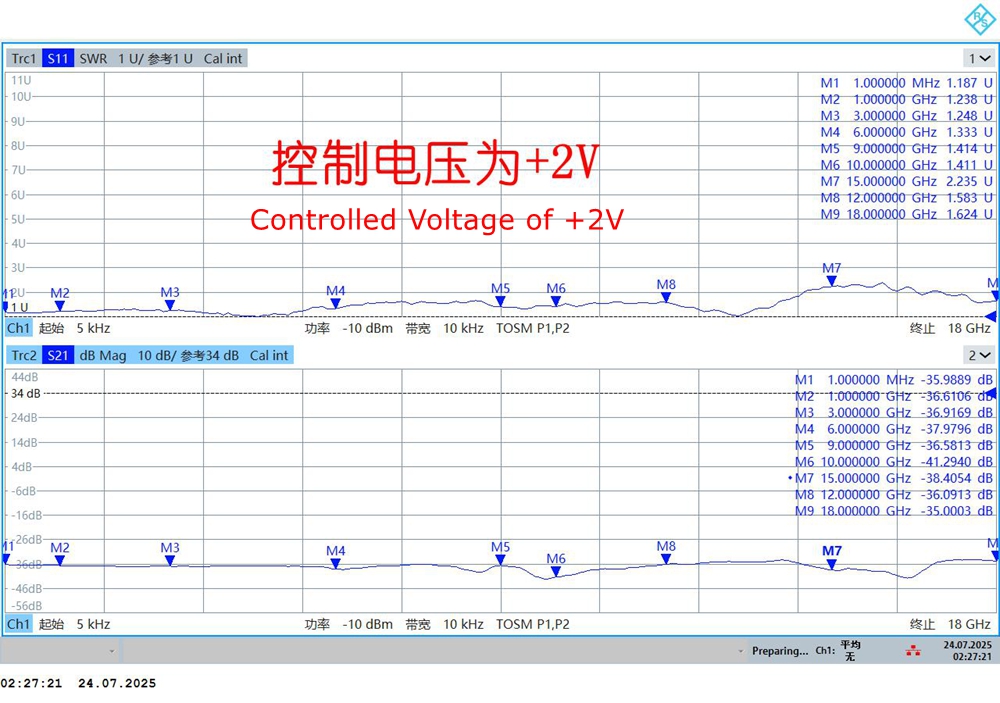

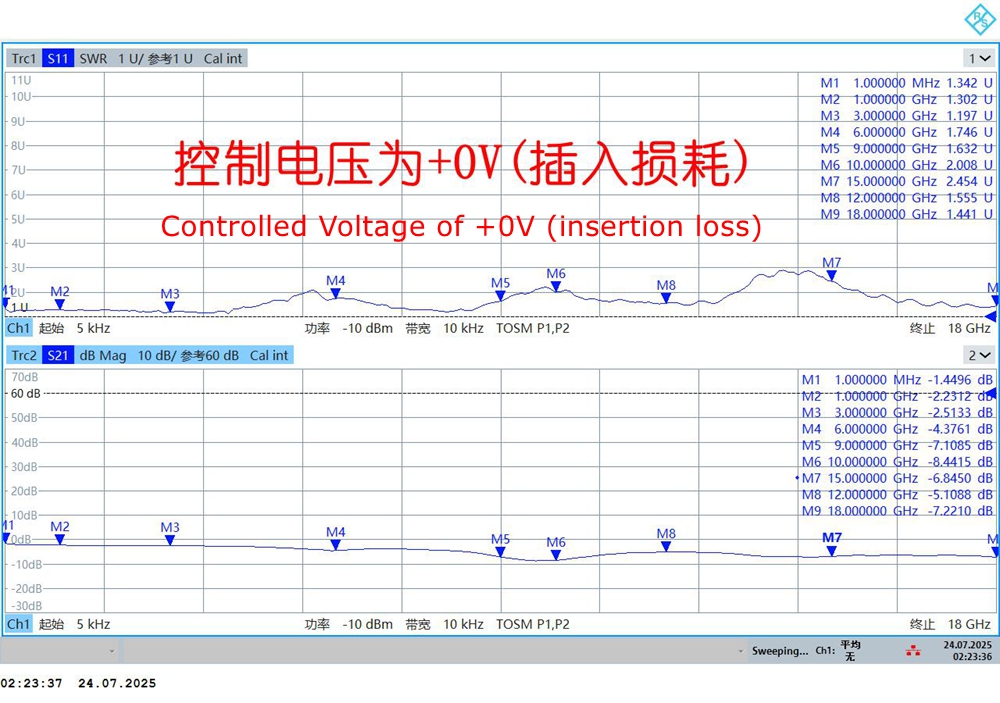

Actual Measurement of S-Curve (S-curve under different controlled voltages):
