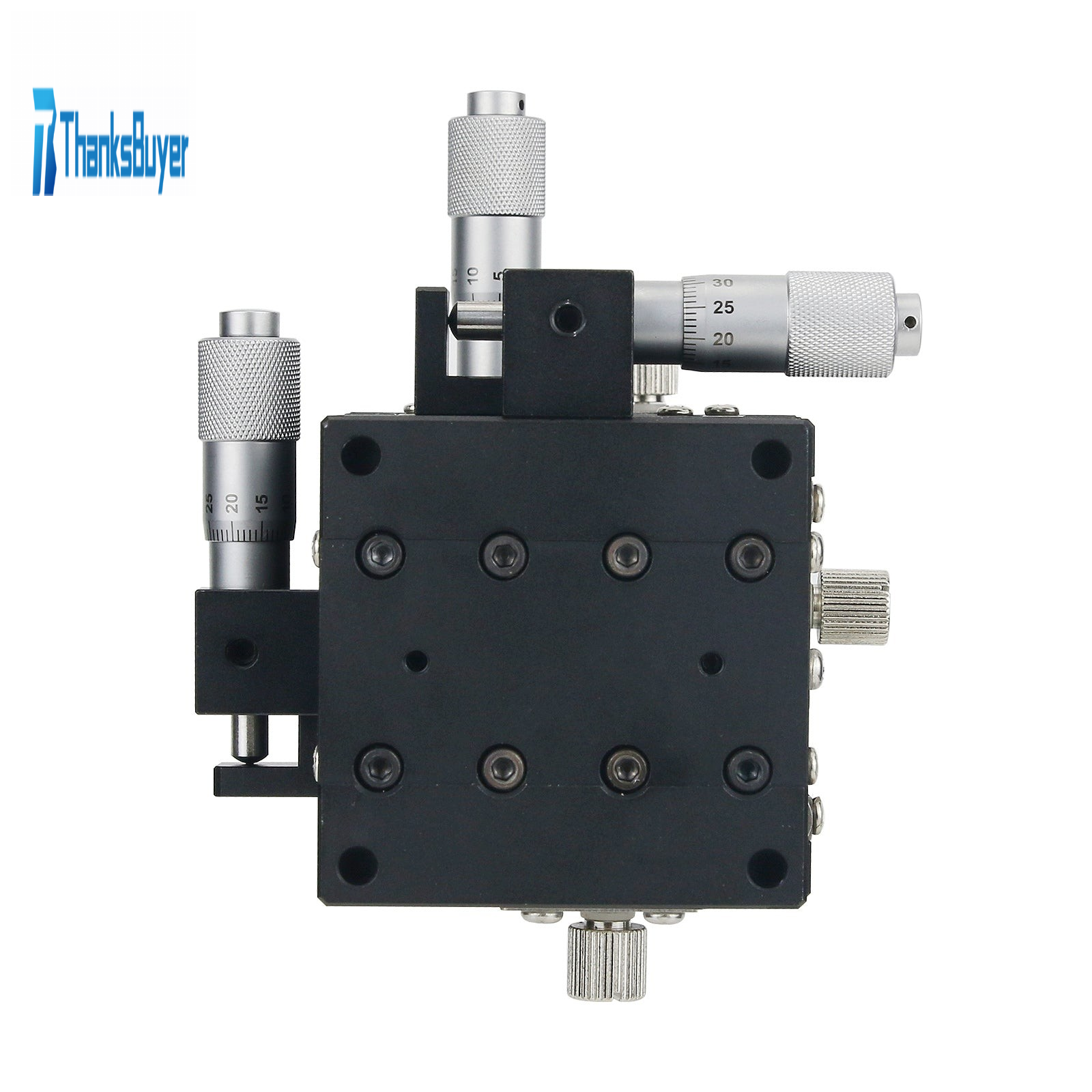

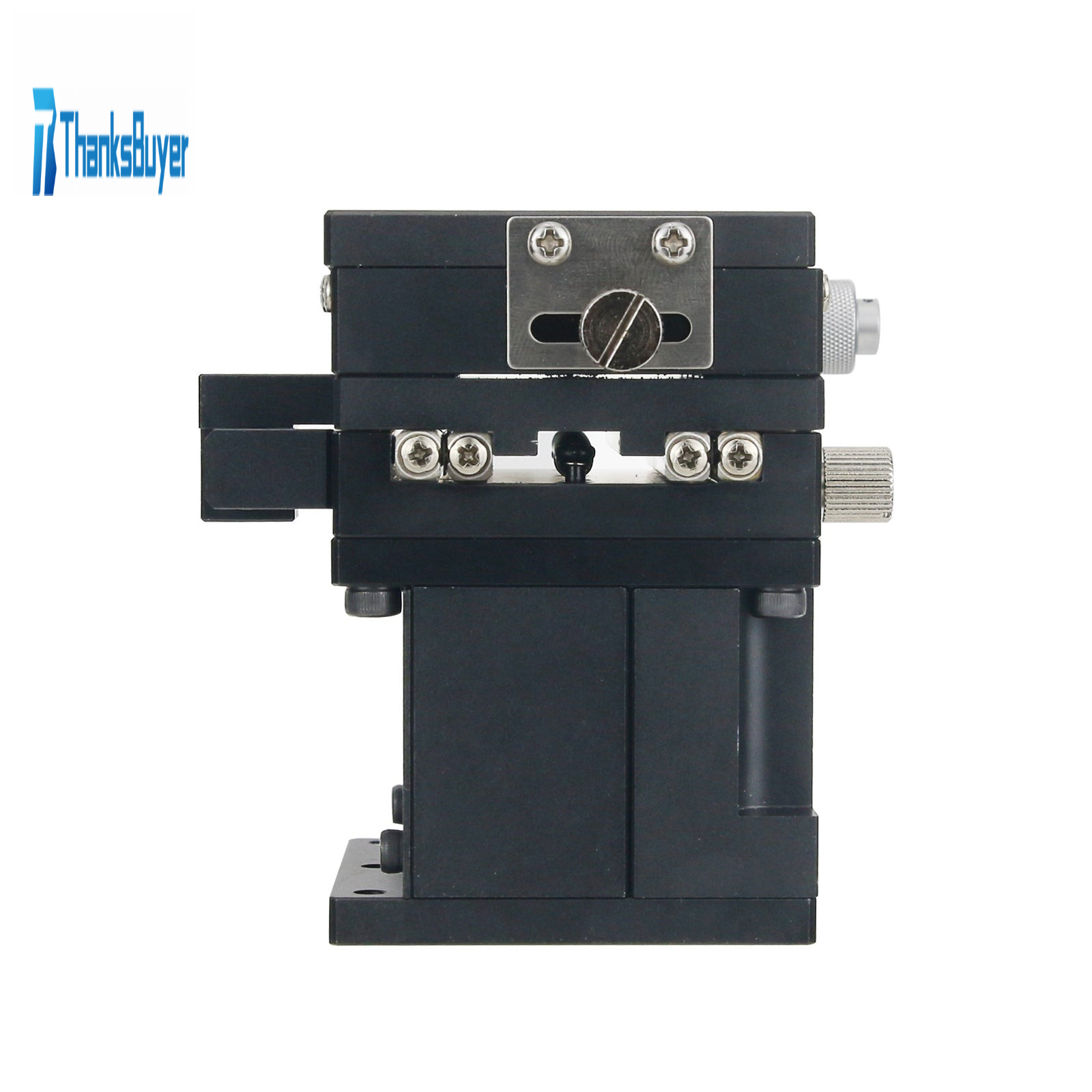

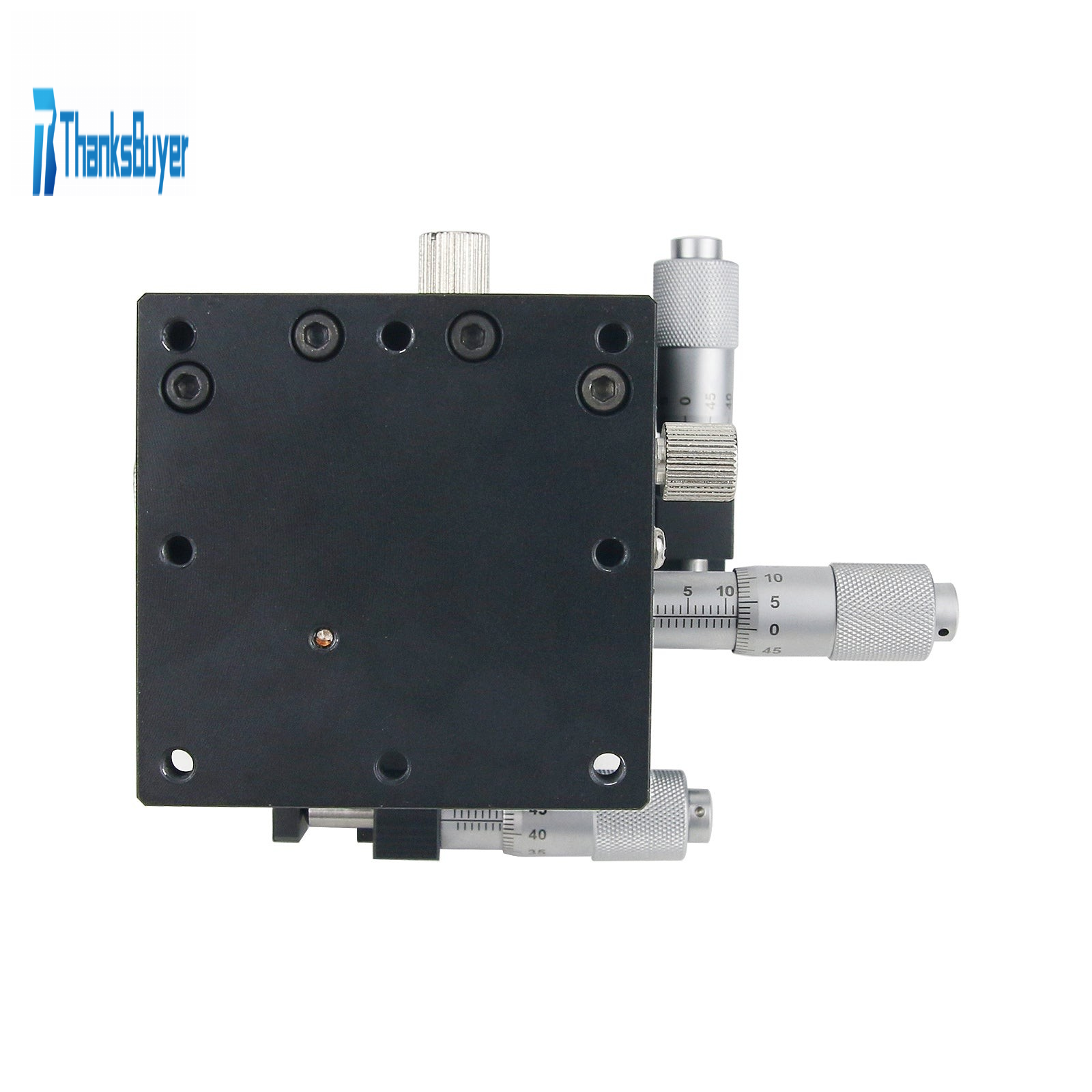

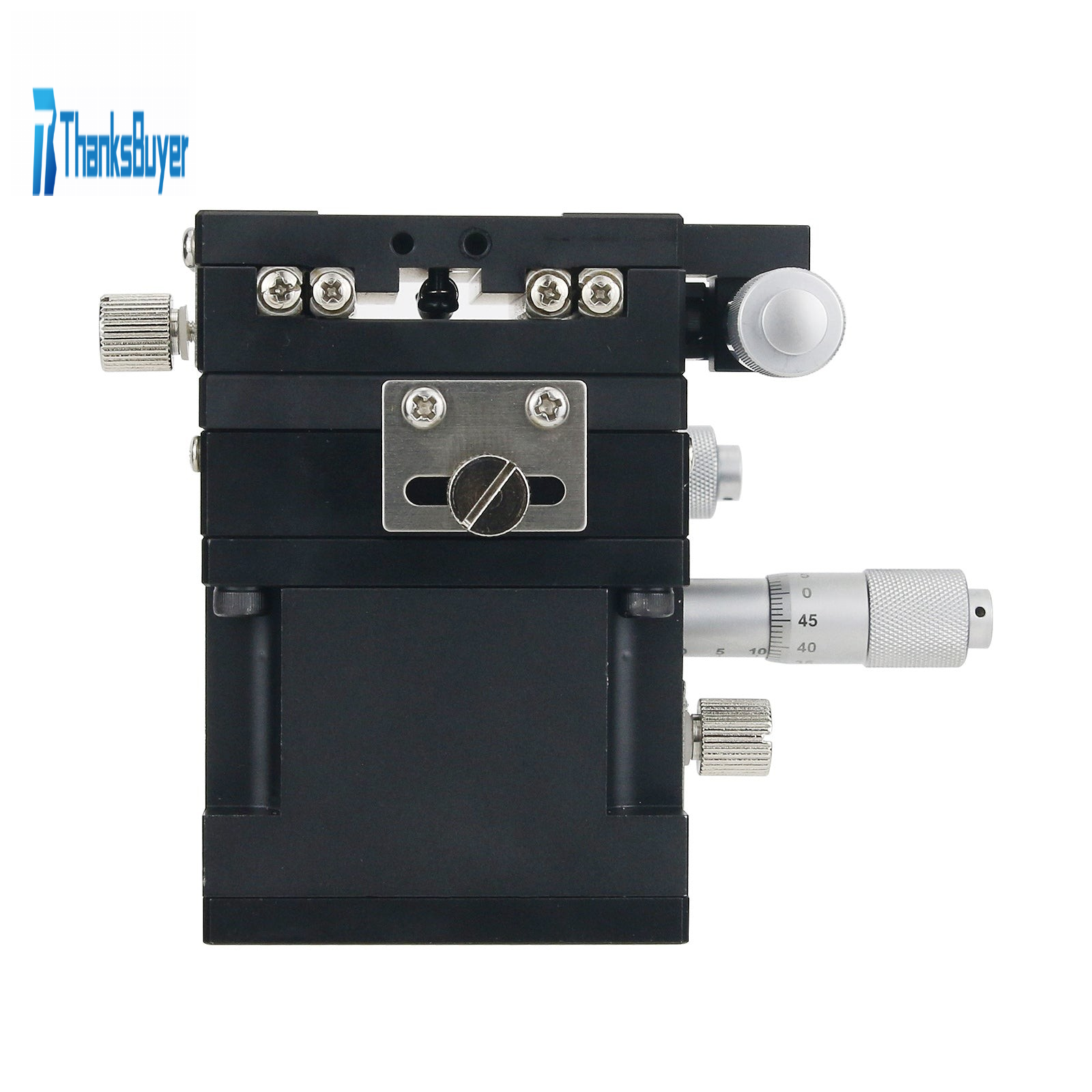

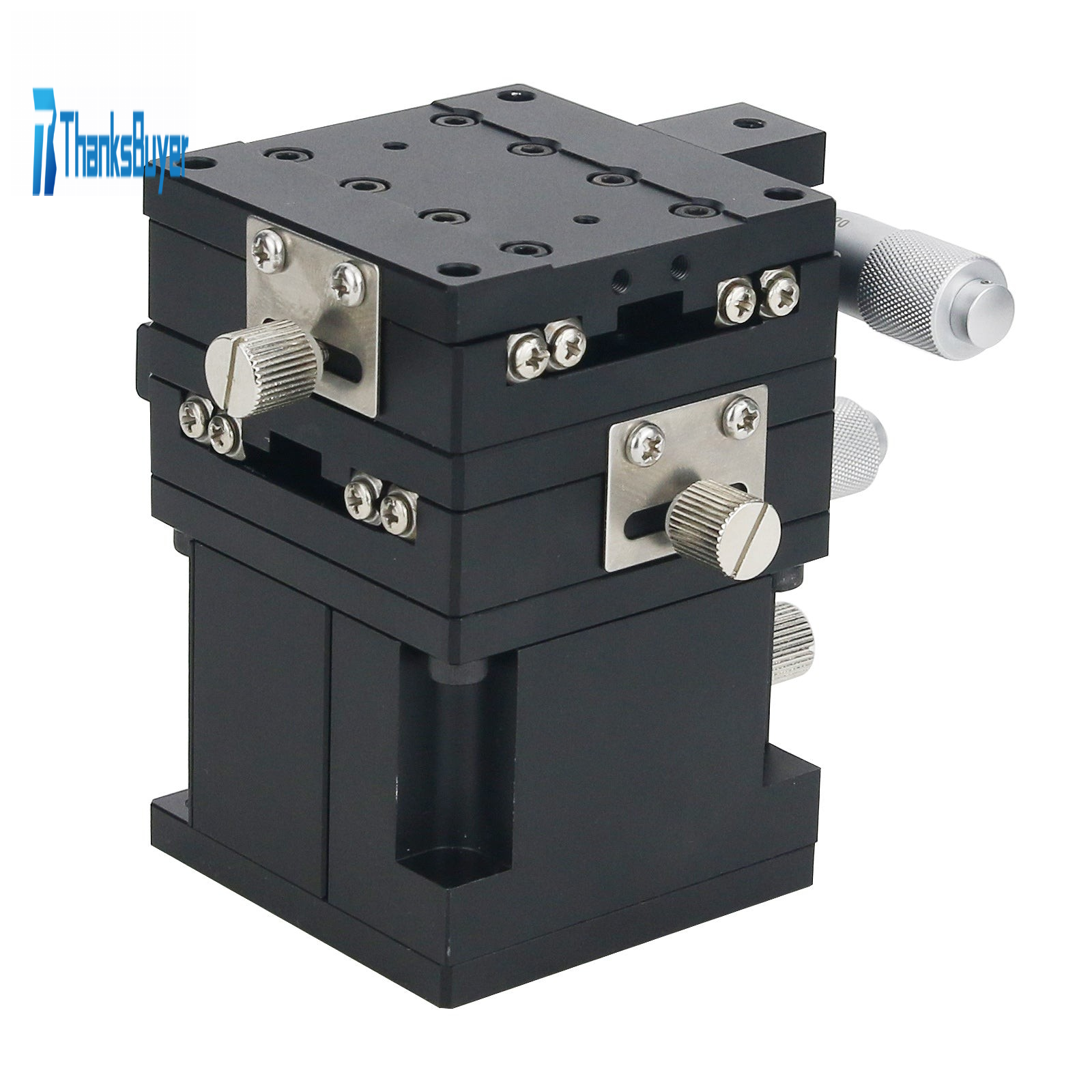

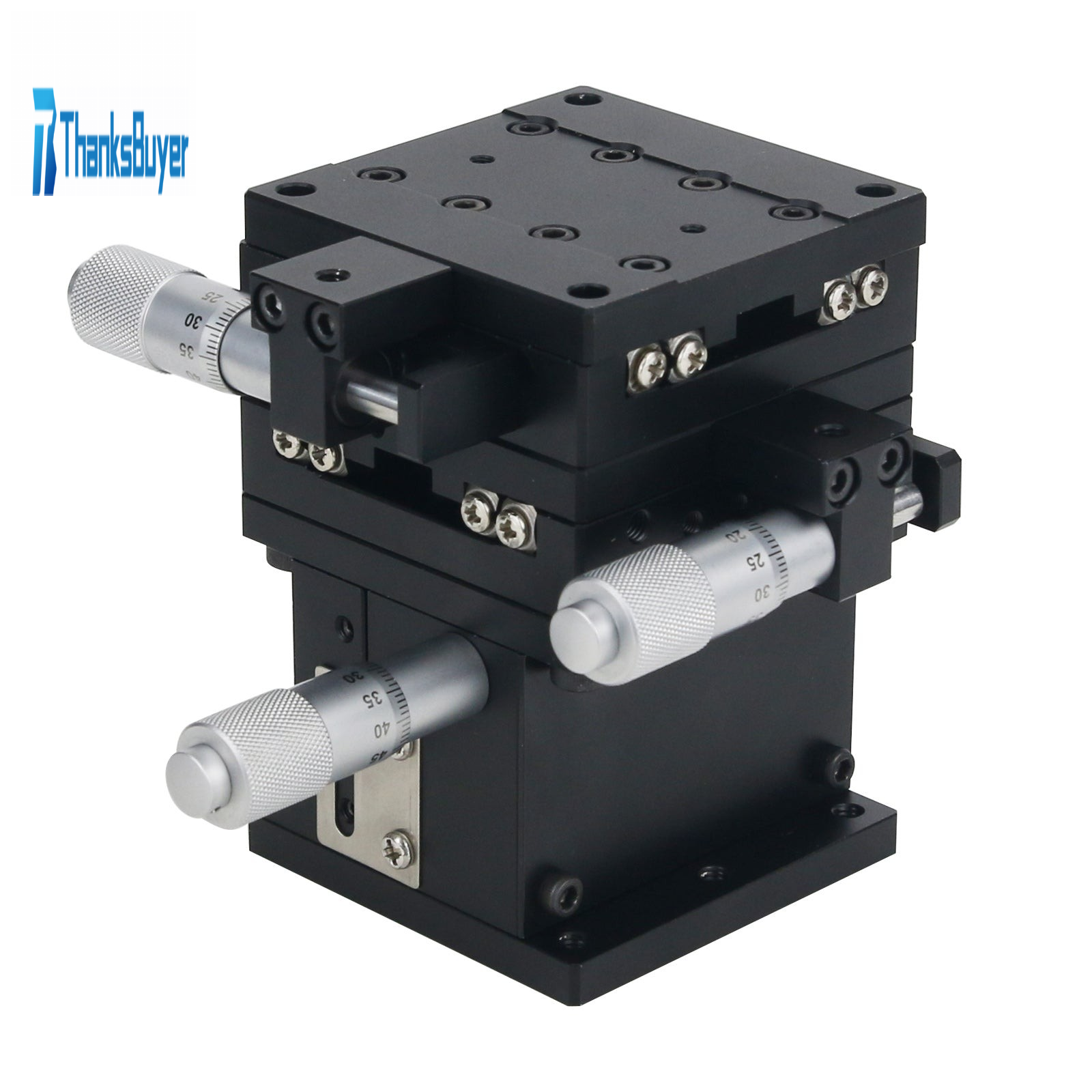

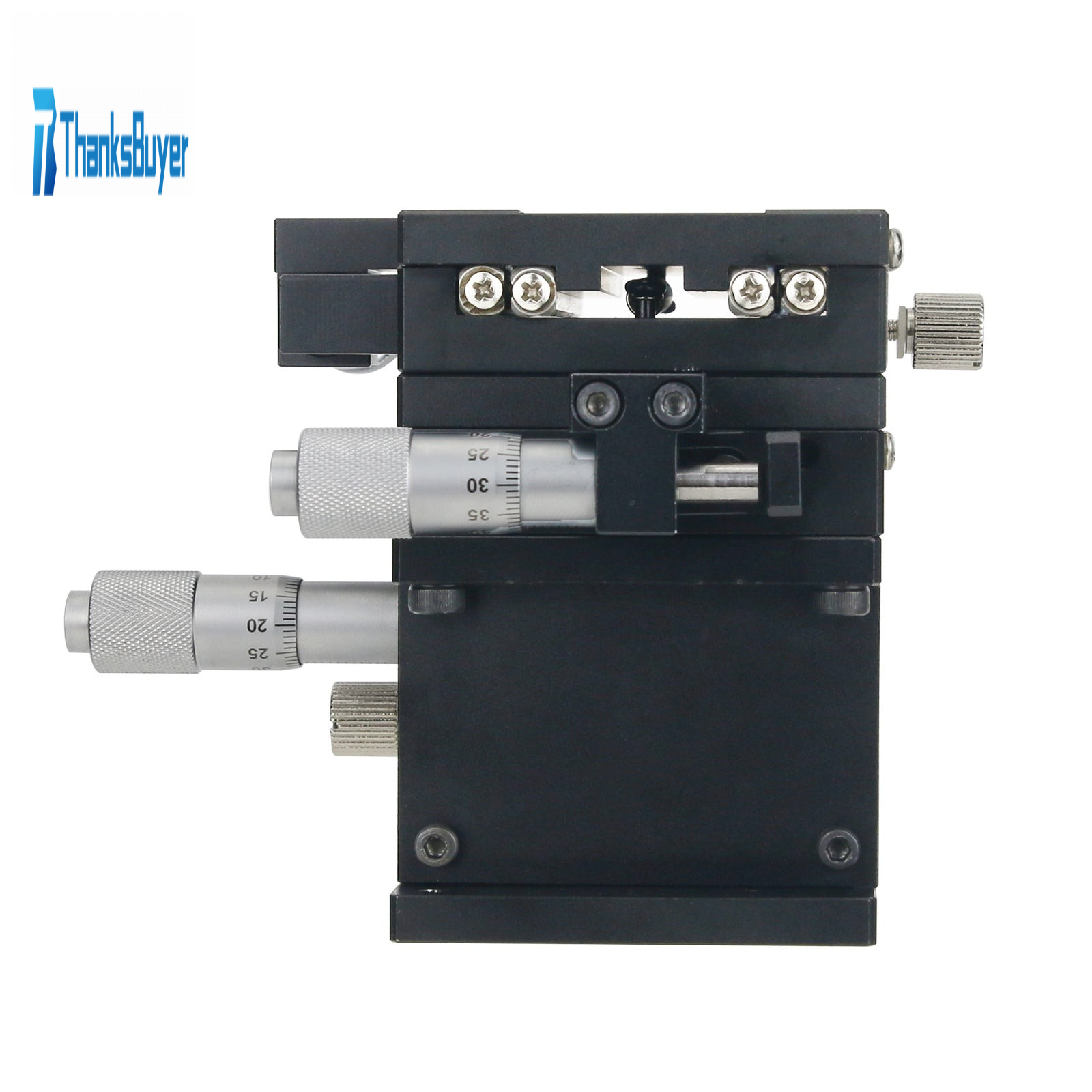

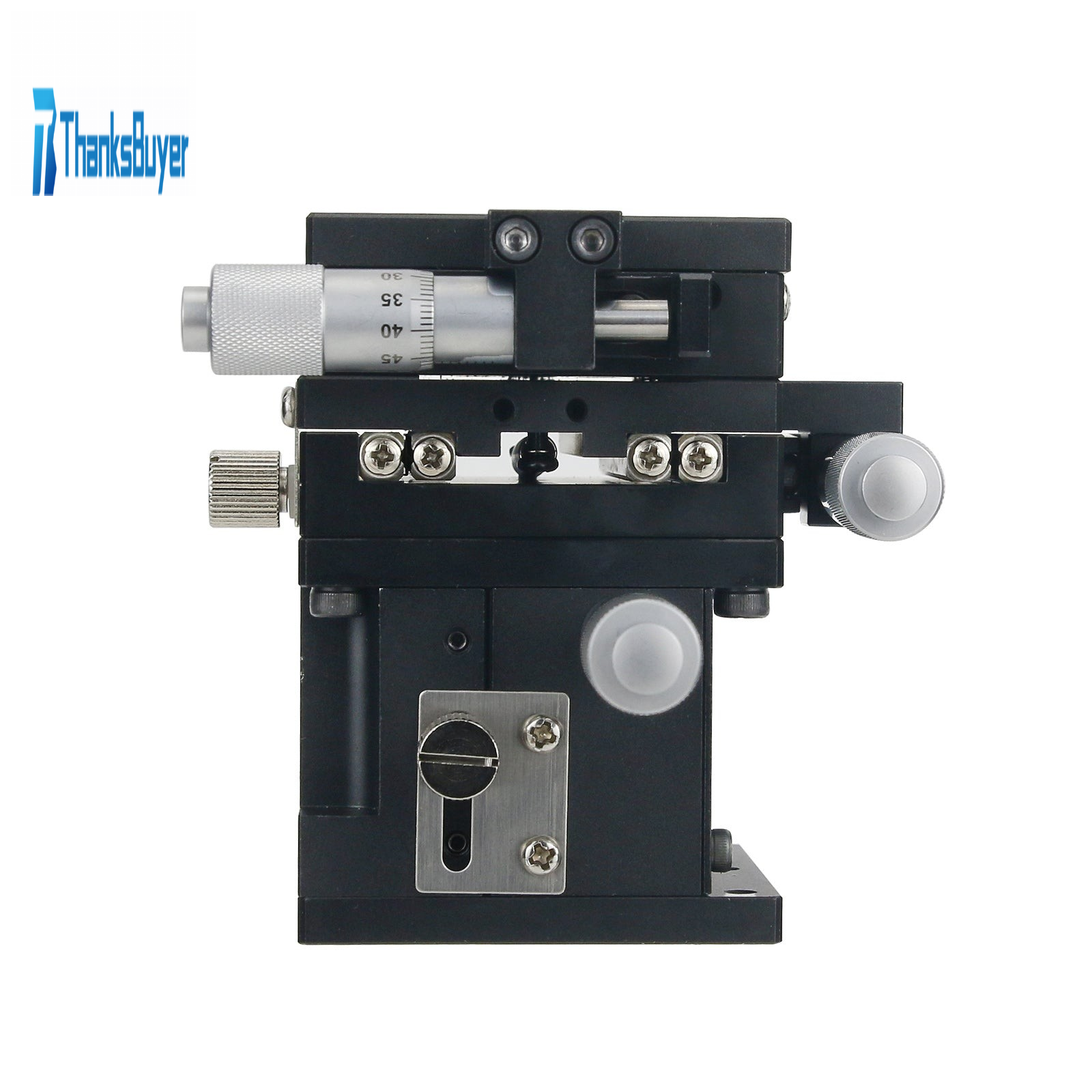

XYZ 3-Axis Manual Linear Stage 60x60mm Micrometer Linear Stage w/ Crossed-Roller Bearing SEMXYZ-60

XYZ 3-Axis Manual Linear Stage 60x60mm Micrometer Linear Stage w/ Crossed-Roller Bearing SEMXYZ-60

Features:
- 100% brand new and high quality
- Accuracy: 3Axis linear stage w/ micrometer head for accurate position
- Durability: Made of aluminium alloy material with black anodized surface
- Precision: Adopting cross roller guide for higher precision and smooth movement
- Application: Widely used in production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement, etc.

Specifications:
- Model: SEMXYZ-60
- Table Size: 60x60mm
- Height: 90mm
- Type of Guide Rail: Crossed-Roller Bearing
- Load Capacity: 57.5N (5.5kgf)
- Length of Travel:
  For X & Y Axis: ±6.5mm;
  For Z Axis: ±13mm.
- Accuracy: 0.01mm
- Parallelism: 80μm
- Mobile Parallelism: 10μm
- Straightness: 3μm
- Material: Aluminium Alloy(Black Anodized Surface)

Package Included:
- 1 x XYZ 3-Axis Linear Stage
