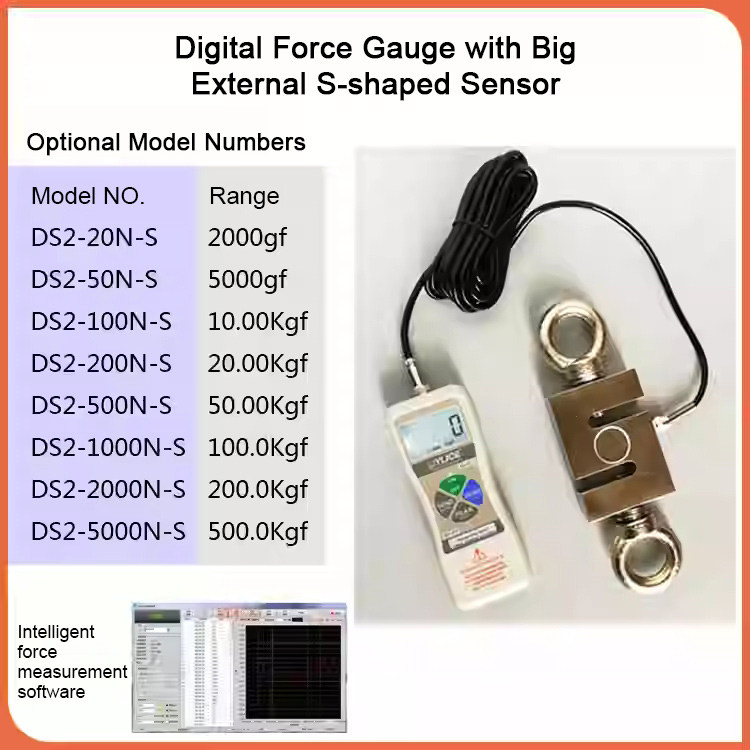

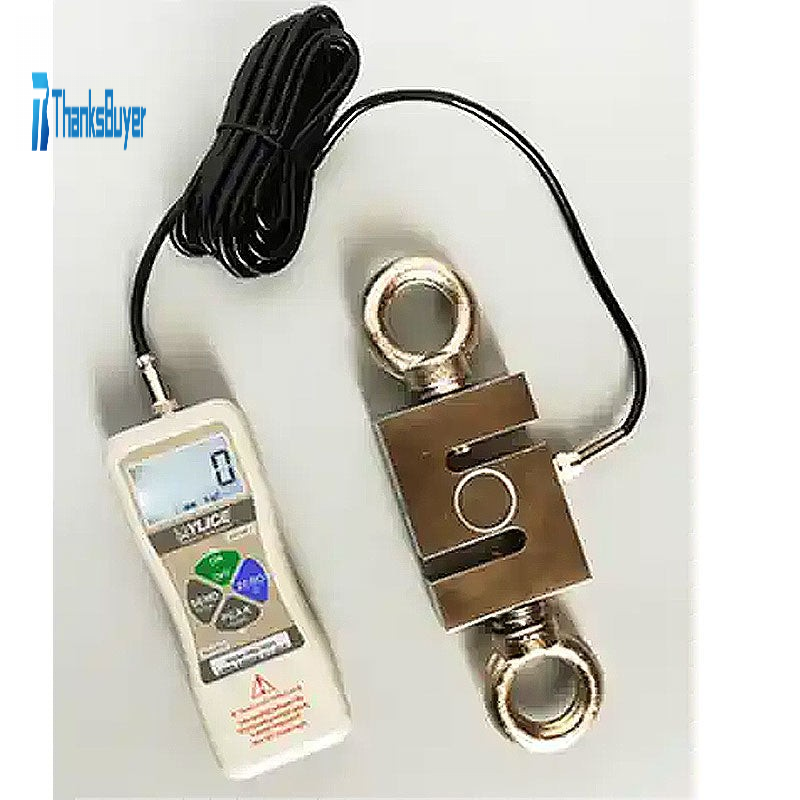

YLICE DS2 Digital Force Gauge Push Pull Scale with Big External S-shaped Sensor (20-5000N Optional)

Features:
- Digital force gauge
- Usage: Tension and compression
- Optional range: 20-5000N
- Sampling speed: 1000Hz
- Measurement modes: Track and Peak
- Units of measurement: N, Kgf/gf and Lbf
- Accuracy: ±0.5%F.S, ±1 digit
- 4-digit LCD with large fonts supports flip display
- Built-in safe and environmentally friendly lithium battery with a large capacity
- Ultra-low power consumption and ultra-long standby time
- The push pull gauge with a thickened aluminum alloy body
- Reliable and durable to use

Sensor Size:
- Plug: GX12-4 with 4 pins
- Cable length: About 2m/6.6ft

Measurement Software:
- Our DS2 series digital force gauges can be automatically recognized for data acquisition and analysis.
- Users can control the tester online to reset to zero, change units and switch modes.
- It supports online continuous measurement and automatic data storage. Users can review the sampled data.
- Excel, Txt reports and Bmp graphs can be exported. You can connect it to a printer to print the graphs directly.
- Sampling speed of the software is 5pcs/sec.
- Software functions can be customized.

Package Included:
- 1 x Main unit
- 1 x Instructions
- 1 x Warranty card
- 1 x Factory report
- 1 x Charger
- 1 x Sensor (external type)

Packaging Details:
- Weight: 1kg

Note:
- Please select the appropriate range according to the force measurement range. Do not use it beyond the range!
