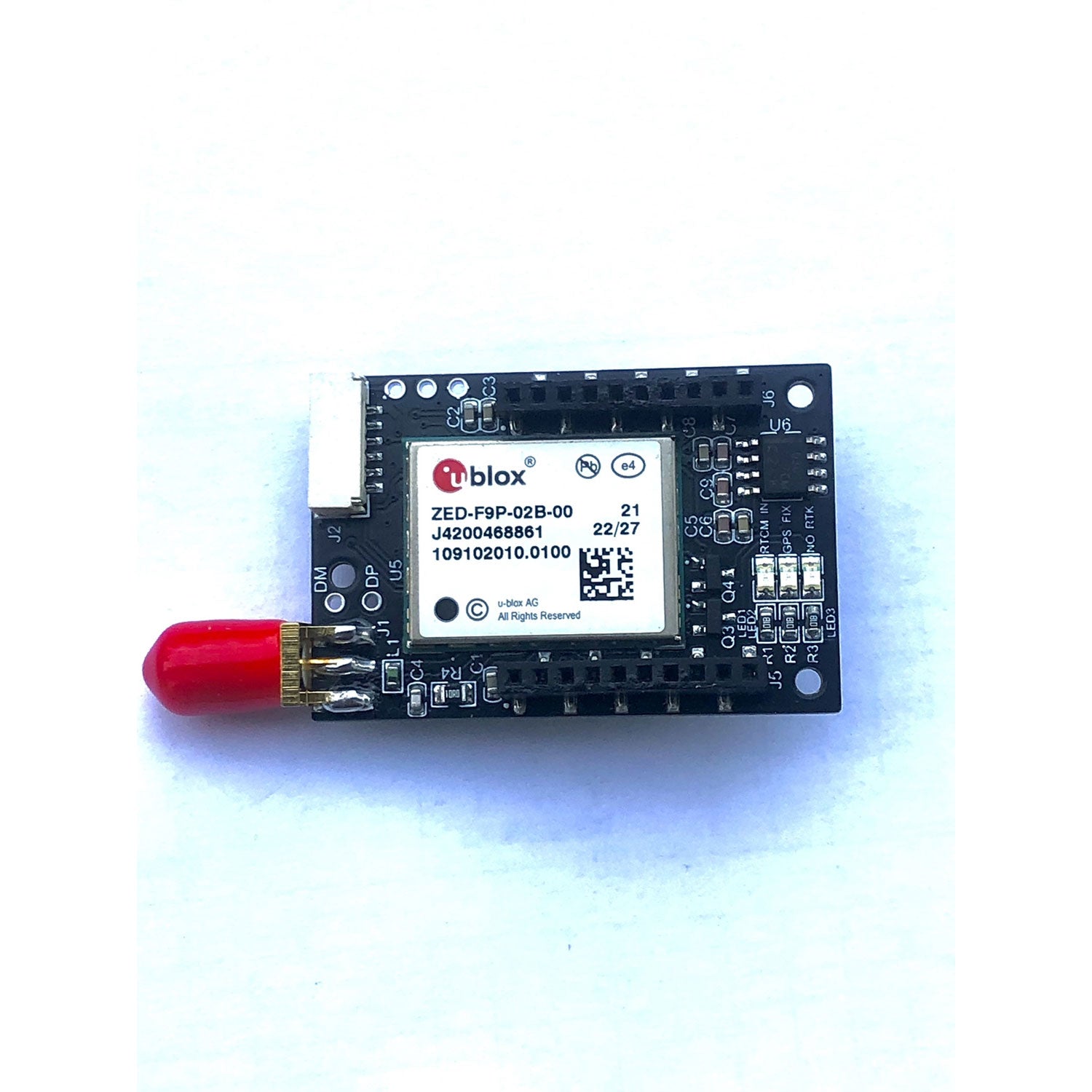

ZED-F9P-02B-00 High-precision RTK and Heading Board RTK Module Integrated GPS Module for Drones

ZED-F9P-02B-00 High-precision RTK and Heading Board RTK Module Integrated GPS Module for Drones

Description:
The ZED-F9P-02B-00 is a high-precision GNSS-based RTK and heading board designed for accurate positioning and navigation. It supports Real-Time Kinematics (RTK), providing centimeter-level positioning accuracy. The device is compatible with multiple global satellite navigation systems (GNSS), such as GPS, GLONASS, Galileo, and BeiDou, making it ideal for applications like autonomous driving, robotics, and precise surveying.

Specifications:
- Model Number: ZED-F9P-02B-00
- Type: GNSS Module
- Product name: Affordable RTK GNSS receiver and GPS board for GPS/BDS/GLONASS/GALILEO
- Accuracy: Horizontal: 10mm + 1ppm; Vertical: 15mm + 1ppm
- System: GPS: L1/L2/L5; GLONASS: G1/G2; BDS: B1/B2; GALILEO: E1/E5b; QZSS
- Working mode: RTK, dual antennas, and post-processing
- Heading: 0.2°/m RMS
- Application: Surveying, Mapping, UAVs, Driving tests, CORS, Deformation Monitoring
- Type: GPS Receiver
- Weight: 28g
- Frequency: 1Hz, 5Hz, 10Hz, 20Hz, and 50Hz
- Dimensions: 71mm x 46mm x 11mm

Package Included:
- 1 x Board

Packaging Details:
- Weight: 0.2kg
