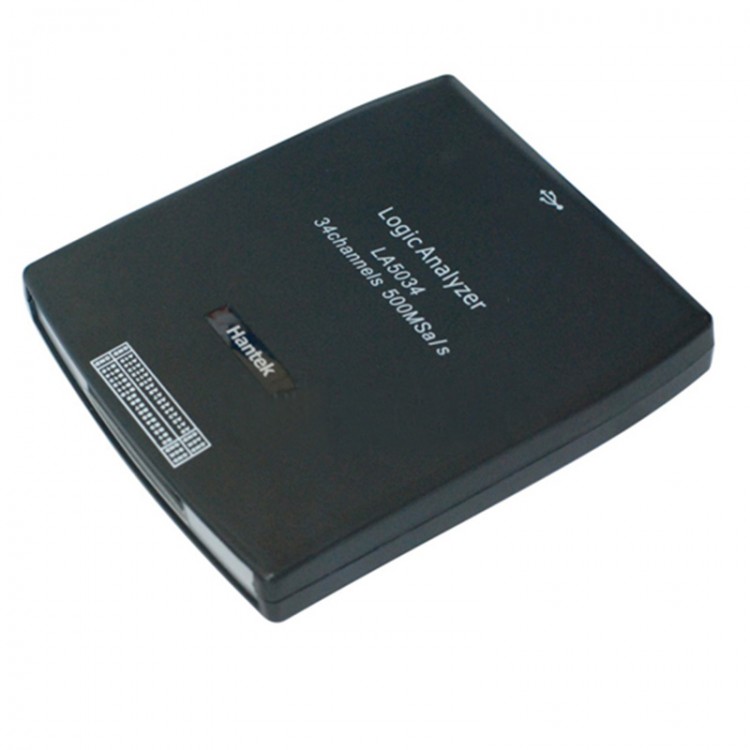

Professional Hantek LA5034 34CH 500MHz USB PC Digital Virtual Logic Analyzer CAN I2C SPI RS232

Description:
The LA5034 is a 500MHz, 34-channel logic analyzer for test, diagnostics, and analysis of digital circuits. It has the features of the multi-channel oscilloscopes and other expensive bench type instruments. The adoption of advanced large-scale integrated circuits, the integrated USB 2.0, CPLD, FPGA, the high-frequency digital circuit, the embedded systems, and the other advanced technologies, make the LA5034 portable, easy-to-use and good for extension. It is your best choice in pc-based logic analyzers. The LA5034 is very suitable for electronics engineers and college students in scientific research and development.

Features:
- Up to 34 data input channels.
- High speed operation, 500MHz Timing-Mode (Internal Clock), 200MHz State-Mode (External Clock).
- Continuously variable pre/post trigger position, Advanced Multi-Level Triggering.
+6V to -6V Adjustable Logic Threshold.
- CAN, I2C, SPI and RS232 Interpreters.
- Built-in 250MHz Frequency Counter.
- USB 1.1 and 2.0 Compatible.

Specifications:
- Channel: 34
- Input Impedance: 200K (C=10p)
- Input Voltage Range: -60V~60V
- Voltage Threshold Range: -6V~6V
- Max. Sample Rate: 500 MHz
- Max. Input Signal Bandwidth: 150 MHz
- Min Time Resolution: 2ns
- Sample Depth: 2KSample
- Memory Depth: 68Kbits
- Compatible Input: TTL, LVTTL, CMOS, LVCOMS, ECL, PECL, EIA
- Electrostatic Protected Area: 15KV
- Interface: USB Port
- Voltage Range: 4.5V~5.5V
- Power: Max. 3.5W
- Temperature Range: Operation: -10°C~60°C; Storage: -40°C~60°C
- Operating System: WinXP/2000/Win7
- Analyzer Size: 150 * 165 * 25mm
Analyzer Weight: Approx. 224g

Package List:
- 1 * Logic Analyzer
- 1 * USB Cable
- 1 * Set of Test Clips
