PS010 60W 40KHZ Ultrasound Cleaner Circuit Board Oscillator Kit Ultrasonic Generator DIY Simple Cleaning Machine Moving Vibration Box

Availability: In stock, usually dispatched in 1 business day

  • Price:$47.96
  • Price in reward points: 480 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $47.00 $46.04 $44.60 $42.68 Contact US
Quantity:

PS010 60W 40KHZ Ultrasound Cleaner Circuit Board Oscillator Kit Ultrasonic Generator DIY Simple Cleaning Machine Moving Vibration Box


A/B Glue not included

Specification:
- Frequency: 40KHZ
- Ultasonic total power: 60W
- Input voltage: 220V (or 110V, need to specify)


Description:

- Ultrasonic circuit board vibration sub-set:

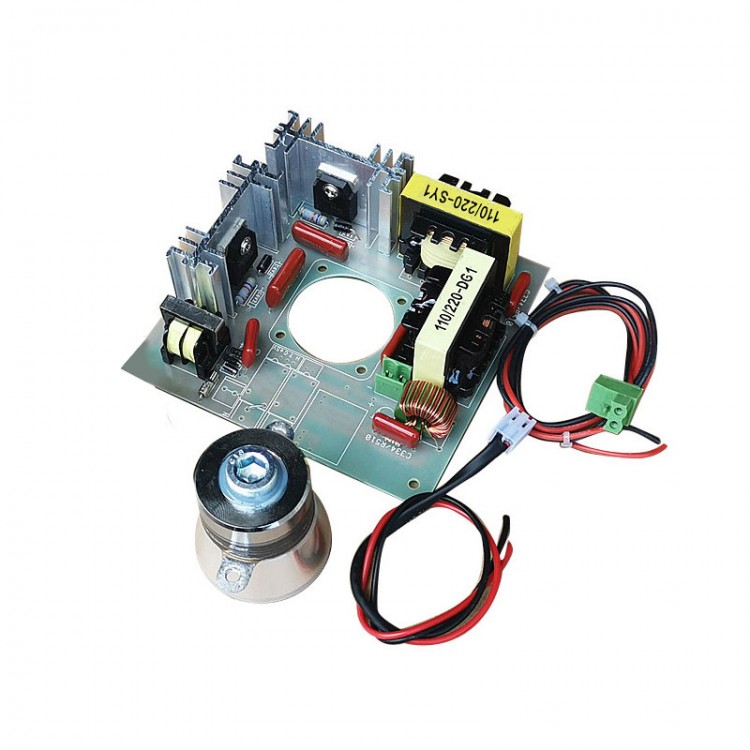

- This set includes: ultrasonic motherboard, shocker, shocker nail

Note: This ultrasonic kit is a special part for ultrasonic cleaning machine. It is for DIY cleaning machine

- Friends prepared, the main function is cleaning, do not have other functions of the purpose. The accessories
- Can be mounted on 304 stainless steel in various shapes for a simple and practical cleaning
- A vibrator or moving vibrator box. (The shop only sells kits, no schematic circuit board drawings are provided.)
- This kit is a live naked product. It is not suitable for washing dishes and dishes at home
- This kit should not work for long periods of time and should not exceed 30 minutes at a time.
- During the working period, the circuit board and vibrator will be heated, and the temperature will rise with the working time.
 - This set is a semi-finished product, once installed and used, it does not support return or replacement, please buyers


Warning:
Ultrasonic vibrators can only be cleaned by mounting on a stainless steel bowl.
Be sure to read the instructions before you install it. Vibrator is not
Never, ever electrify test while installing on the basin.

Specification:
60W suit accessories are suitable for basins of 15*15cm, 120W suit basins of 25*15cm. 180W
Suits for 30*15cm basin, 240W suits for 30*25cm basin, 360W suits for
35*30cm basin, the size of the basin should not be too large. Otherwise, the cleaning effect will be poor. everyone
After the installation test comes out the vibration force effect is a little different, this with the choice of stainless steel basin material
Size has a relationship, (pro had better buy the corresponding size of 304 stainless steel number basin).
Ultrasonic cleaners are not a panacea, but also have great limitations, there are many things to wash

No, like clothes, shoes, stains. General to metal, glass, circuit board
Hard products have a good effect, for different stains to add the corresponding cleaning agent.


Installation instructions for oscillators

1. Prepare a stainless steel basin with a thickness of 0.8~1.5mm, and set the installation position of the oscillator.
























2. The rougher the surface is polished on the mounting surface of the vibrator, the better the bonding firmness will be.
























3.In good polishing paste special welding oscillator on the surface of screw, really unconditional weldingPick up screws, can need not welding. (there areVibrator, weld screws installation, better vibration, low failure rate)The surface is clean.















4..Ready to oscillator, AB glue. Take a suitable amount of AB glue according to the proportion of 1:1 mix, besmear to oscillator paste noodles, note: screws are installed on basin, oscillator in the hole can not coated with glue, otherwise the vibrator twist into the screw. No installation of nail, oscillator hole to with glue.
























5.Screw the glue-coated vibrator into the screw and tighten it to the surface of the basin without leaving any gaps with the basin surface.If no nails are installed, press the vibrator hard until it is fully attached to the surface of the basin and then fix it with adhesive tape.(Note: from mixing THE AB glue to installing the vibrator, the time should not exceed 2 minutes. The glue is fixed very fast.)
























6.After 24 hours of solidification, shakers can be connected to the vibrator line. The vibrators can be divided into positive and negative poles. When wiring, the negative pole can't be connected backwards according to the black line and the red line.Coupling of two oscillators















7. Prepare a three-pin plug wire with ground wire and connect the wire as shown in the drawing, then power the test machine.(Note: when connecting the circuit board with the oscillator, the positive and negative boards should be on the right side.The ground wire must be connected to the metal case.
