PUZU PZ-D480 Car DSP Amplifier Bluetooth Car Amp 4x180W 8 Channel Output Digital Audio Processor

PUZU PZ-D480 Car DSP Amplifier Bluetooth Car Amp 4x180W 8 Channel Output Digital Audio Processor

Advantages:
- 8x31 segment 4x180W high-power car audio DSP digital audio processor original car audio upgrade amplifier
- Support for Nissan, Toyota, Honda, Volkswagen, etc.
- 8x31 segment EQ floating-point high-precision tuning system
- High and low pass filter
- Adjustable sound field delay, realize space editing
- Gain control, phase control
- Joint debugging function
- Limiting function
- For Android, computer software (multi-language support)/WeChat mini programs
- Internal Bluetooth supports mobile phone to play lossless music
- 6 stored modes

8 Core Advantages:
- 8 channels full frequency
- Bluetooth 4.2
- Support for Android app, WeChat mini programs
- Computer software supports multi-languages
- Digital USB input
- 4 RCA inputs, 8 RCA outputs
- AE algorithm
- Non-destructive mating, easy installation

Features:
- 4 input 8 output car lossless DSP power amplifier, built-in boost, high-power output
- Built-in power 4x180W at 4-ohm; 4x220W at 2-ohm
- Dedicated car amp, non-destructive mating, easy to install
- 8 channels full frequency, can be used as active system
- Support for Android phones, WeChat mini programs, computer software
- Support computer/mobile phone/for WeChat mini programs. Support multi-language computer software: English/Chinese/Korean/Russian/Spanish/Portuguese/French
- Built-in class AB high-power amplifier, its sound is sweet and smooth. 31-band EQ floating-point high-precision tuning system. High and low pass filters can adjust the sound field delay to realize spatial editing. Gain control/phase control/joint modulation function/limiting function. Built-in Bluetooth supports mobile phone to play lossless music. Support U disk to play lossless music. Built-in 6 stored modes
- Support optical input/USB sound card playback/8x31 segment EQ. Lossless playing supports formats FLAC, APE, WAV, MP3, WMA, etc. Support external controller playing (optional)
- DSP built-in AE intelligent algorithm, the sound quality is beyond your imagination
- Aluminum body / gold-plated RCA terminals / high-resolution capacitor poles / pure copper wire
- With a mini body, it can be placed in your co-pilot storage box. The length of the non-destructive installation cable is 1.5m. Keep the original car as it is, without changing any lines of the original car, it is safe and reliable to use
- Your mobile mixer, enjoy your journey

Specifications:
- Frequency response: 20Hz~20KHz
- Dynamic range: >88dB
- Signal to noise ratio: >94dB
- Signal output range: 0.05Vrms~10Vrms
- Rated power: 4x55W at 4ohm, THD<0.1%, 4x110W at 2ohm
- Bluetooth version: V4.2 (built-in 6 storage modes)
- Working temperature: -30℃ to 70℃
- Working voltage: 10V~17V
- Resolution: ≥70dB
- DSP chip: For American ADI
- 4-core 32-bit processing chip, built-in power amplifier IC: TDA7851L
- Product size: 180x132x46MM

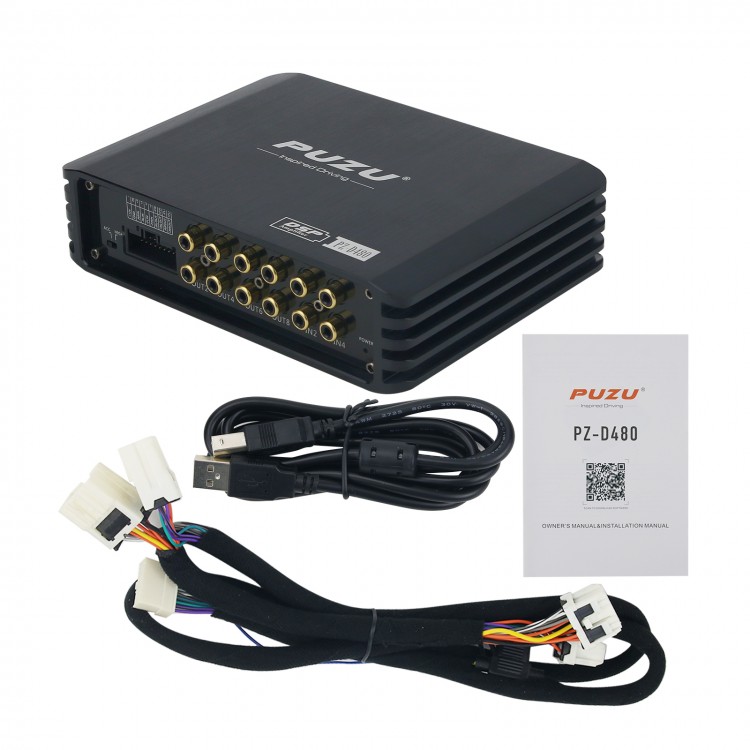

Package Included:
- 1 x Set of Car Amp

Download User Manual & Tuning Software:
/https://www.puzuaudio.com/ProductDetail/4452030.html

Note:
- Please confirm your model and car year with the customer service before placing an order, so that we can send the corresponding special car wiring harness. Thank you!

Installation Steps:
1. Disassemble original car host
2. Take out the host
3. Unplug the audio cable of original car host
4. Connect DSP dedicated cable to the original car audio
5. Connect DSP
6. Finish installation
