PW-05 Precision Power Supply Linear Regulated Power Supply w/ Transformer for TALEMA & 15V 1A Output

PW-05 Precision Power Supply Linear Regulated Power Supply w/ Transformer for TALEMA & 15V 1A Output

Attention:
* Due to the use of imported components in some parts of the machine, supply shortages may occur frequently under the influence of international conditions. Therefore, material or design changes may be made without prior notice.
* The length of the DC power cable and the grounding point of the instrument can have a significant impact on ripple test parameters.
* The USB port and the DC port have different voltage outputs. The USB port outputs a fixed 5V and is not adjustable, while the DC port provides adjustable output voltage.
* Due to the accuracy limitation of the voltmeter, the displayed voltage may fluctuate. This is a normal phenomenon and does not affect functionality. (For example, when the actual voltage fluctuates by 0.01V, the voltmeter may show a change of 0.04V because its display accuracy is 0.04V.)
* When the connected device draws high current, it is recommended to slightly increase the output voltage of the power supply to compensate for voltage drop in the power cable.

Features:
* The USB port provides a fixed 5V output and is equipped with ceramic capacitors for filtering and decoupling.
* The rectifier uses imported Schottky diodes, and the filter capacitors are high-frequency, high-temperature-resistant capacitors for Panasonic, with a total capacity of 23,100μF.
* A built-in switch allows conversion between 110V and 220V input voltages.

Specifications:
* Transformer: for TALEMA
* Input Voltage: 110V/220V
* Output Voltage: 15V
* Static Power Consumption: 0.5W
* Filter Capacitor Capacity: 23100μF, high-frequency low-ESR (high-temperature resistant)
* Output Current: DC 1A and USB 1A
* Output Interface Type: USB port + DC 5.5/2.1
* Overheat Protection: With
* Over-current Protection: With
* Output Voltage Fine Adjustment: With
* Dimensions: 173 × 140 × 55 mm

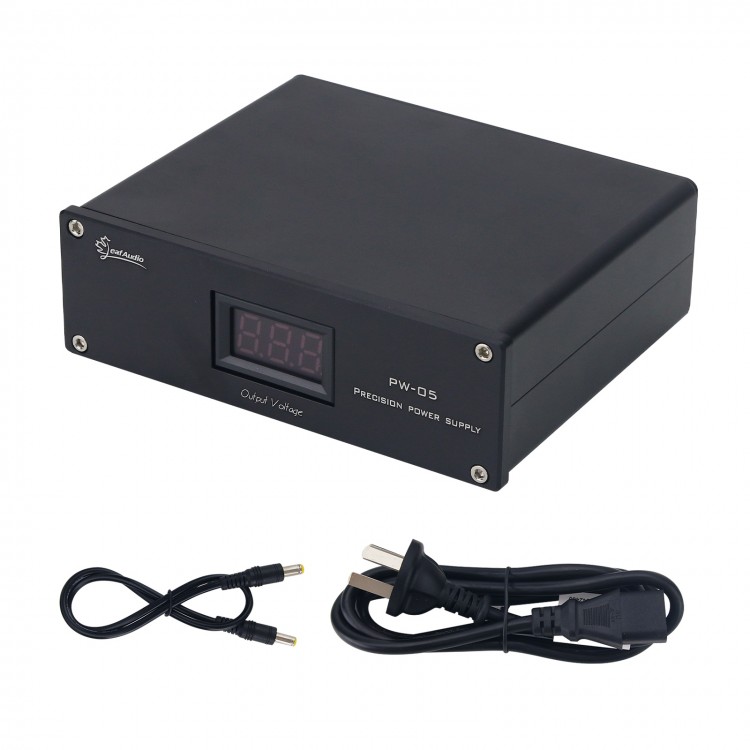

Packing List:
* 1 x Power supply
* 1 x Power cable
* 1 x DC cable

Packaging Details:
* Weight: 3kg
