Features:
1)Image of LCD graphic symbol
2)Simple button operation
3)Automatic Identification System Voltage level
4)Intelligent PWM charge mode
5)Automatic Temperature Compensation
6)Adjustable charge-discharge control parameters
7)Settable Operating mode of Load
8)Overload, Short Circuit Protection
9)Remote monitoring and control function (custom)
10)Battery reverse-discharge protection
11)Battery Low Voltage Disconnection (LVD)
12)Battery reverse connection protection
13)Accumulated function of charge and discharge Ampere hours
Specifications:

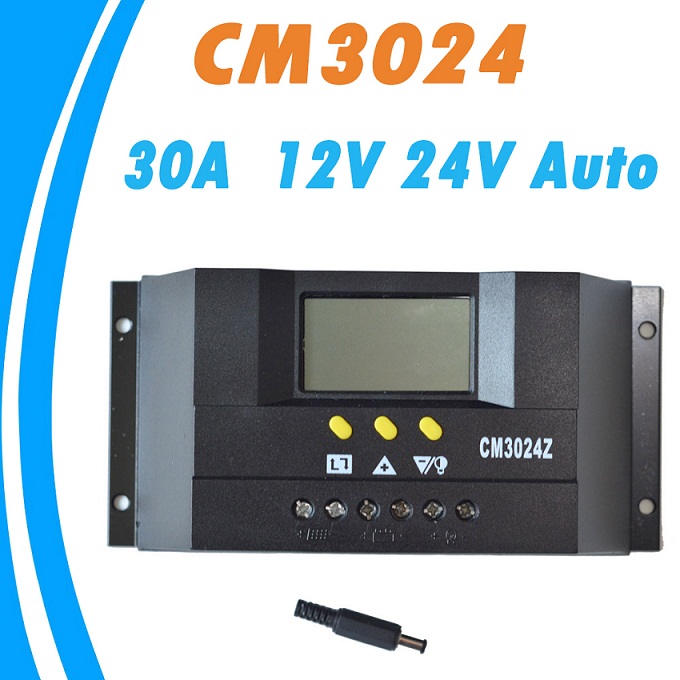

- Rated Voltage: 12V / 24V ( Auto Switch )
- Rated Current : 30A
- Max Input Solar Panel Power: 720W , Connect 24V Battery ( Connect 12V Battery, Max solar Panel Power: 360W )
- Open Voltage of Solar Panel : ≤ 50V
- Over-charging Protection : 13.8V / ( 27.6V )
- Low Voltage Disconnection / LVD: 10.7V / ( 21.4V )
- Low Voltage Reconnected / LVR: 12.5 V / ( 25V )
- No Load Loss: ≤ 30mA
- Loop Voltage Drop: ≤170mV
- Charging Mode: PWM mode
- Temperature Compensation: -4mV / Cell / °C
- Installation Cable area: ≤ 7# AWG (16 mm,2; )
- Operating Temperature: -10-60 degree Centigrade
- Storage Temperature: -30-70 degree Centigrade
- Humidity Requirements: ≤ 90% , no condensation
- Dimensions: 90 x 188 x 48 mm
- Mounting Hole Spacing: 60 x 178 ---φ5 mm
