• QCC5125 Bluetooth 5.1 Lossless Decoder Board DAC Bluetooth Receiver Support for LDAC with Dynamic Boost Circuit

QCC5125 Bluetooth 5.1 Lossless Decoder Board DAC Bluetooth Receiver Support for LDAC with Dynamic Boost Circuit

Availability: In stock, usually dispatched in 1 business day

  • Price:$24.70
  • Price in reward points: 247 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $24.21 $23.71 $22.97 $21.98 Contact US
Quantity:

QCC5125 Bluetooth 5.1 Lossless Decoder Board DAC Bluetooth Receiver Support for LDAC with Dynamic Boost Circuit

Specification:

- Bluetooth receiving solution: QCC5125
- Bluetooth protocol: Bluetooth 5.1
- Sound effect strengthening solution: Dynamic boost circuit
- Output operational amplifier: TL072
- Power port: Type-C
- OCB size: 61 x 60mm

Highlights:
- Bluetooth 5.1, support for ATPX-HD 24Bit transmission and LDAC
- Dynamic boost circuit greatly improved the dynamic and details of the output circuit
- High fidelity operational output chip
- Excellent resistance-capacitance: FW audio capacitor for Nichicon, FC high-speed filtering for Panasonic, for WIMA of German, earphone socket for Foxconn, etc.

Features:
- Built-in headphone amplifier chip, differential amplification circuit, 180mW high power output
- It adopts Bluetooth 5.1 chip with faster transmission speed, more stable signal and connection and lower power consumption.

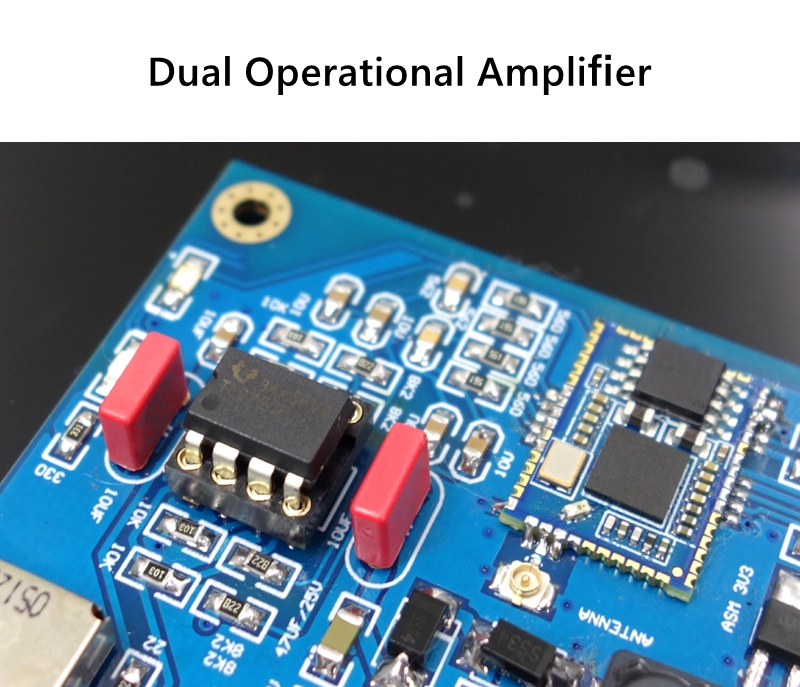

- Dual operational amplifier socket, which can upgrade any dual operational amplifier
- Dynamic boost circuit, which increases the voltage by 5 times more than a typical Bluetooth board with a single 5V input

Package Included:
- 1 x Decoder Board
