Qianli Macaroon Max Spot Welding Machine Pulse Spot Welder for Mobile Phone Battery Soldering Repair

Qianli Macaroon Max Spot Welding Machine Pulse Spot Welder for Mobile Phone Battery Soldering Repair

Features:
All-in-one Design
- No need to connect a separate external expansion board. The design is simple and the operation is more stable.
- Spot weld seat buckle: The buckle is stable and firm.
- The solder joints are made of pure copper and are wrapped on three sides to prevent the components of battery protection board from being burned out.
- Exposed on one side for easy side welding.
- High temperature resistant silicone table: silica gel has better stability.

Dual Pulse Spot Welding
- Multi-segment pulses make spot welding stronger.
- It outputs a preheating pulse first, and then outputs the main pulse for spot welding at intervals, enabling strong, stable and reliable solder joints.
- Preheating pulse: Cleans the surface oxide layer and reduces spark spatting.
- Pulse again: It effectively improves the reliability of welding and make the solder joint firm.

Color Screen Displays All Parameters
- The color screen can display spot welding parameters in real time, preheating, pulse, connection and interval. Physical buttons are designed to adjust the spot welding parameters as needed.
- Main function panel: users can view the power supply, current voltage, and temperature of the spot welding machine. The equipment supports double pulse wave simulation display, welding current display, and can display spot welding machine information: including preheating, interval, pulse and connection.

One-piece Spot Welding Pen
- Copper nibs, stronger conductivity, and heat insulation sleeves for protection.

Non-slip Silicone Pad Resistant to High Temperature
- More stable maintenance spot welding operations are enabled.

Expansion of Automatic Burn-in
- This function is an extended function and needs to be used by maintenance personnel who have a thorough understanding of the burn-in principle. In order to protect the motherboard layer, the burn-in output is limited to 3V 3A MAX. Please use it with caution, and all consequences caused by improper use shall be borne by the user.

Specifications:
- Product name: Macaroon Max All-in-One Spot Welding Machine
- Battery type: Rechargeable polymer lithium battery
- Battery capacity: 4000mAh/65C
- Output current: 650A (MAX.)
- Input interface: Type-C charging port
- Input parameter: 5V

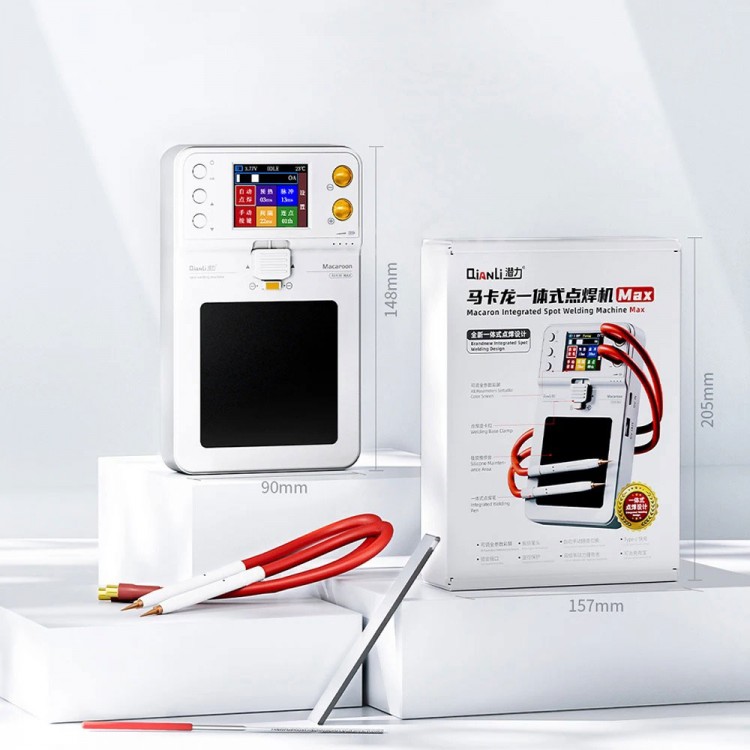

- Size of main unit: 148mm x 90mm/5.8" x 3.5"

Package Included:
- 1 x Spot Welder
- 2 x Spot Welding Pens
- 1 x Nickel sheet
- 1 x File

Packaging Details:
- G.W.: 0.5kg

Attention:
- Beware of potential electrical safety hazards. Special operation qualifications are required for the use of the tool.
