QLMH-25 Miniature Load Cell Sensor (100KG) + QLHB-C 5-Digit Display with 2 Alarm Output Channels

QLMH-25 Miniature Load Cell Sensor (100KG) + QLHB-C 5-Digit Display with 2 Alarm Output Channels

Features of the Load Cell:
* The miniature load cell is a reliable sensor.

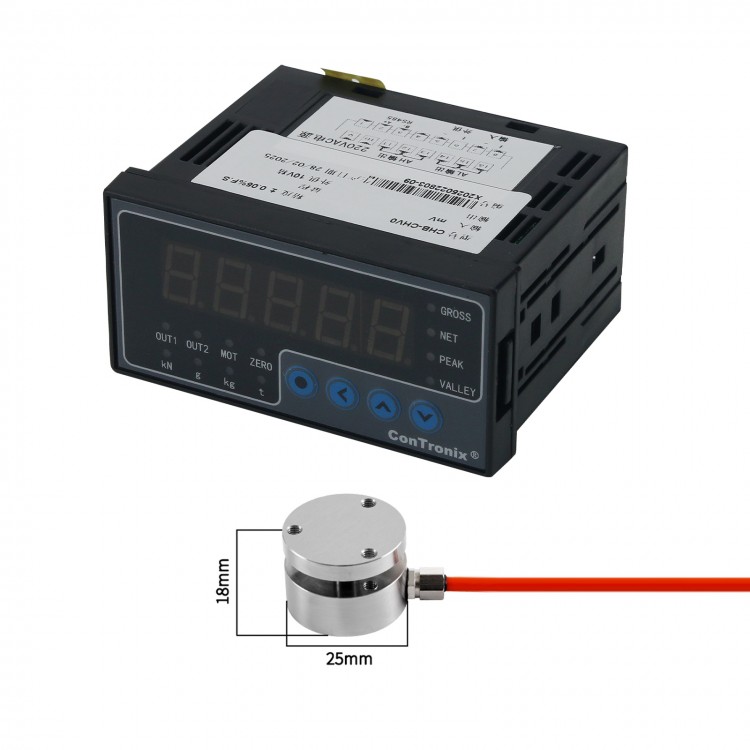

* The sensor has a diameter of 25mm and a height of 18mm.
* As a miniature sensor, it has a low height, small deformation, a cylindrical shape, and is bi-directional (tension and compression).
* Made from alloy steel, it is primarily used in push-pull force meters, various industrial force measurement and weighing systems, and other applications.
* It is also suitable for hopper scales, platform scales, testing machines, industrial automation, mixing stations, and belt scales.

Features of the Display:
* High-precision Display: It is a 5-digit display screen. It is equipped with 2 alarm output modules and accurate display. The screen supports automatic zeroing at startup.
* Good Heat Dissipation with Ventilation Grilles: Multiple ventilation grilles are designed to enhance airflow, providing excellent heat dissipation performance.
* Clear Terminal Labeling: Clearly marked terminals make installation easy and efficient.
* More Features: The display screen adopts a 24-bit A/D converter and works with various sensors and transmitters to measure, display, alarm, monitor, collect, and record physical parameters such as pressure, flow, level, component analysis, force, and mechanical quantities.
* Application: Suitable for industrial automation measurement and control systems used in force measurement, weighing detection devices. Suitable for hopper scales, platform scales, testing machines, industrial automation, mixing stations, and belt scales.

Specifications of the Display:
* Power Supply Voltage: AC power 100–240V AC, 50/60 Hz
* Power Consumption: Less than 7VA (AC power)
* Allowable Voltage Variation Range: 90%–110% of the power supply voltage
* Insulation Resistance: More than 100 MΩ (based on 500VDC MEGA)
* Withstand Voltage: 2000V AC for 1 minute at 50/60Hz, IEC61000-4-2 (electrostatic discharge), level III
* Interference Resistance: IEC61000-4-4 (electrical fast transient/burst), level III; IEC61000-4-5 (surge), level IV
* Protection Rating: IP65 (front part of the product)
* Ambient Environment: -10°C to 55°C; storage temperature: -25°C to 65°C; humidity: 35–85%RH; storage: 35–85%RH
* Measurement Control Speed: 10 times/second
* Basic Error: ±0.05% F.S.
* Display Range: -19999 to 45000. When overloaded, it will display "OL". It supports ratio measurement and is compatible with 4-wire strain sensors.
* Input Signal: Suitable for 0.8–2.5mV/V

Packing List:
* 1 x Load Cell Sensor
* 1 x Display Screen

Packaging Details:
* G.W.: 1.5kg
