QM-PD011020N 1-1000M RF Power Divider One Input Two Output RF Power Combiner Power Splitter for 433M

Description:
A RF power divider is a device that divides the energy of one input signal into two or more outputs of equal or unequal energy. When used as a power combiner, it can also synthesize multiple signal energies into one output.

The module adopts N-type high-frequency connector, covering typical application frequencies such as FM, 315M, 433M, 486M, 868M, and 915M.

Due to its compact size, it can be integrated with equipment.

Technical Parameters:
- Model: QM-PD011020N
- Operating frequency: 1-1000 MHz
- Typical insertion loss: 0.5dB
- Typical isolation of branch port: >20dB
- Maximum carrying power: 28dBm
- Standing wave for input and output ports: ≤1.2
- Input and output impedance: 50Ω
- Interface: N-F (female connector)
- Module size: 53 x 30 x 22mm/2.1 x 1.2 x 0.9" (without the size of connectors)

Package Included:
- 1 x RF Power Divider

Pictures of Measured Parameters:
1. Input port to output port loss


2. Port isolation test

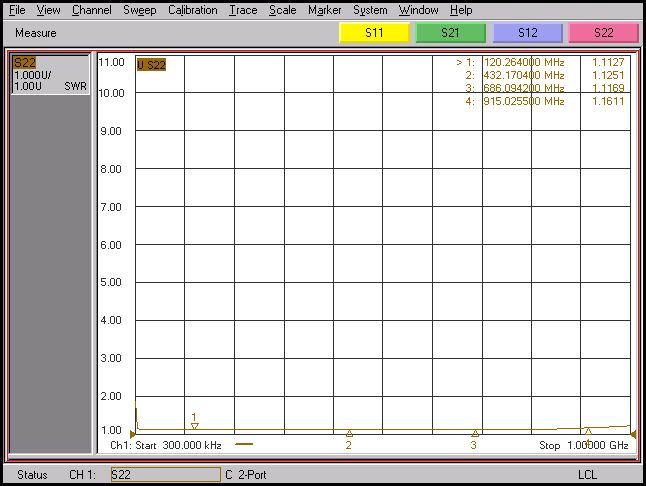

3. Input and output port standing waves:
