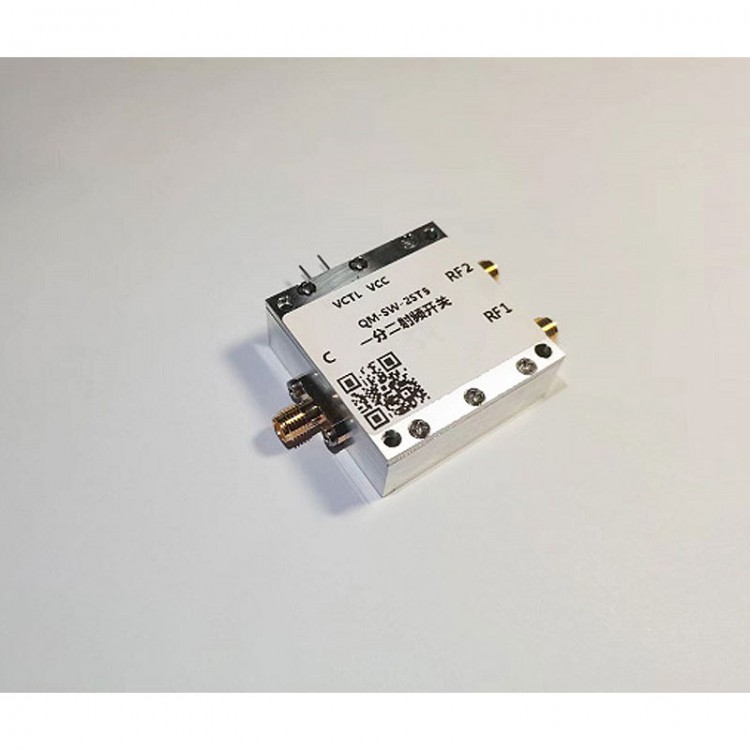

QM-SW-2ST5 DC-5G RF Switch Low Insertion Loss RF SPDT Switch Used in Communication Systems
Description:
Microwave switch, also known as RF switch, controls microwave signal channel conversion. This module adopts SPDT mode, covering the DC-5GHz broadband frequency to realize the switching of two signals. Due to low insertion loss, wide frequency band, and high isolation, it is widely used in communication system equipment. The module CNC housing package makes it have good electromagnetic shielding performance.
Specifications:
- Model: QM-SW-2ST5
- Working frequency: DC-5GHz
- Working mode: SPDT
- Typical insertion loss: 1.5dB (typical)
- Port isolation: ≥45dB
- Impedance: 50Ω
- Power supply: +3.3 to +5V
- Input and output interface: SMA (female connector)
- Module size: 40 x 40 x 14mm/1.6 x 1.6 x 0.6" (not including the size of connectors)
- With mounting holes
- Weight: 80g/0.2lb
Package Included:
- 1 x RF Switch

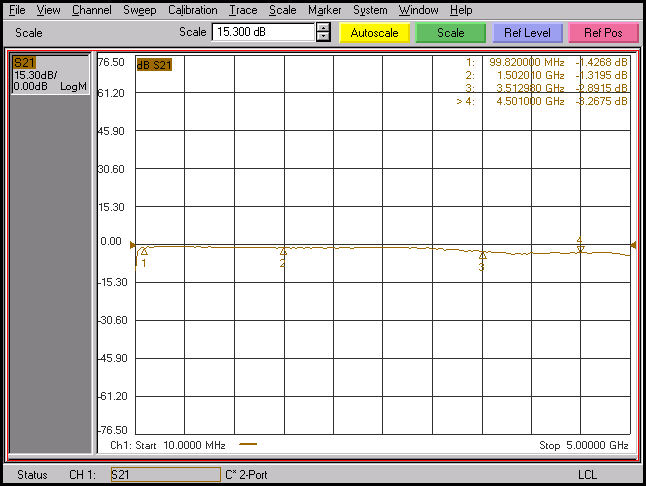

Insertion Loss Curve:

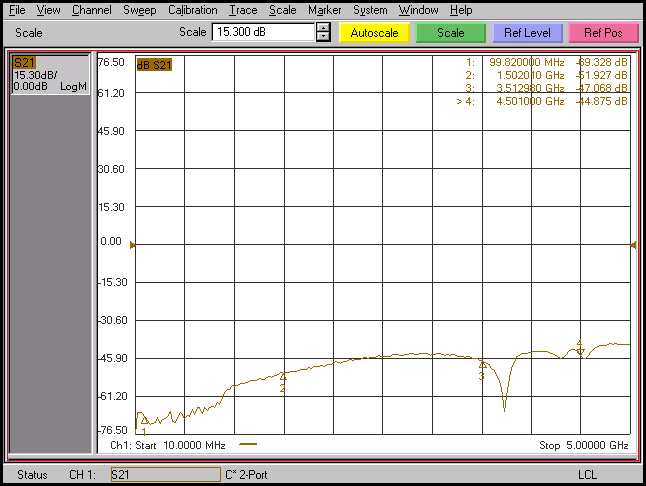

Port Isolation Test:

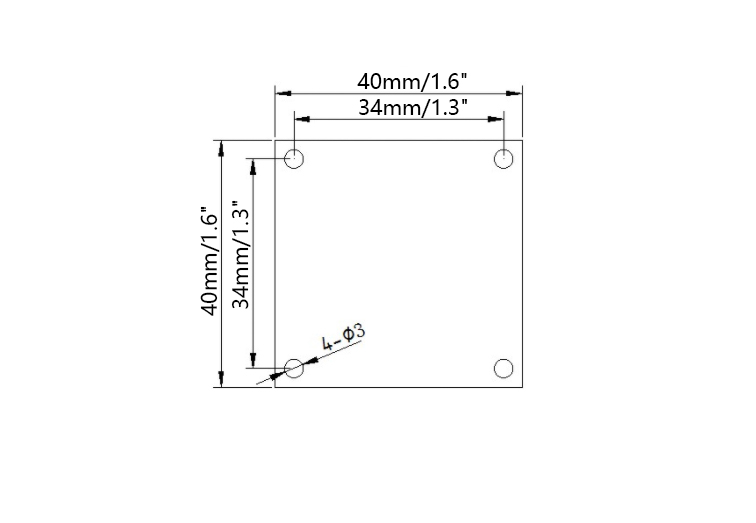

Module Installation Dimensions:
