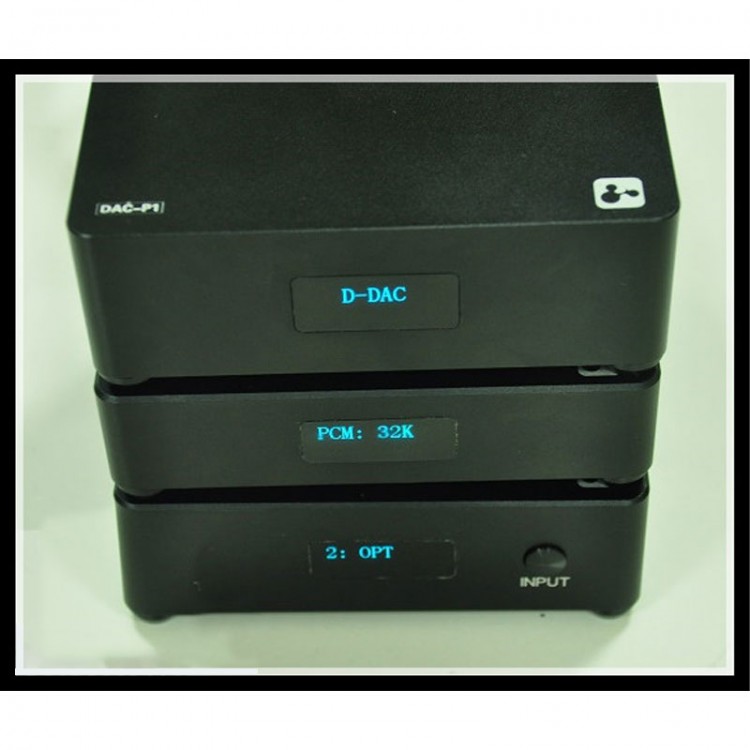

R2R DSD PCM DAC Fully Discrete 64Bits Audio Decoder Direct Decoding Multiple Signal Input with OLED Display
Description:
- This product completely decodes DSD and PCM directly, instead of converting DSD to PCM and decoding it, it directly converts DSD files to digital analog through R2R discrete network. Its performance and function exceed the existing DAC integrated chip.
Features:
- Appearance size:
POWER:130 × 125 × 40mm; System power supply
DAC:130 × 125 × 30mm; R2R decoding
SW:130 × 125 × 40mm; Signal input selection
- Special independent discrete power supply design, intelligent power supply design. Three-way dual voltage output 5V, 9V, 12V.
- R2R decoder output interface: single-ended XLR output, differential output;
- SW signal input interface: optical fiber, coaxial, AES, USB, HDMI, RJ45 (IIS), Bluetooth (4.0);
- 32/64-bit decoding circuit design, perfect support for DSD&PCM two audio formats
PCM format: 32k, 44.1k, 48k, 88.2k, 96k, 176.4k, 192k, 352.8k, 384k
PCM supports 32-bit, 24-bit and 16-bit audio data formats.
DSD supports formats: DSD64, DSD128, DSD256, DSD512, DSD1024
- 0.01% high-precision low temperature drift resistance is adopted to ensure consistency.
- Independent power supply: R2R decoding and signal input are independently powered.
- It uses special FPGA to realize: software filter, decoding and other algorithms to restore the true original sound.
- Automatic recognition: automatic PCM and DSD audio format and real-time display.
- Integrated shell design: It is made of pure aluminum processed by CNC, with a super beautiful appearance.
- OLED screen display: real-time display of playback audio type format.
Package Included:
-1 x Host
