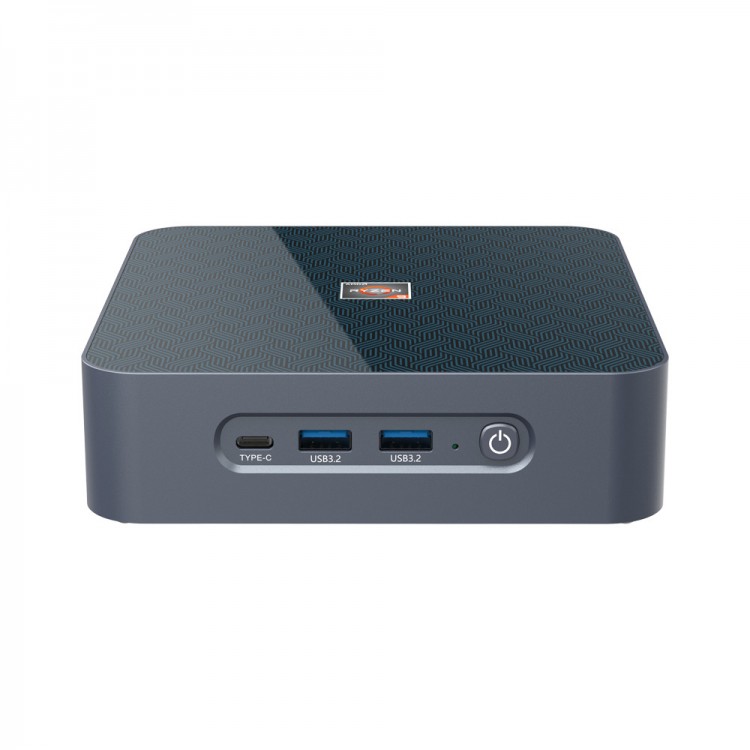

R3 5400U Mini PC Mini Desktop Computer 2*DDR4 3x4K HD Display Supports 2*M.2 SSD For Games Offices

R3 5400U Mini PC Mini Desktop Computer 2*DDR4 3x4K HD Display Supports 2*M.2 SSD For Games Offices

Highlights:
- Onboard high-end 5000 series 7nm processor (for AMD Ryzen) with powerful computing performance
- Onboard VEGA graphics (for AMD Radeon) with fast graphics processing capabilities for gaming and 3D design
- 2xSODIMM DDR4 ram slot up to 64GB, large capacity and high frequency memory improve work efficiency and give you a smooth experience
- Support HDMI2.0, DP1.4 and Type-C for 3x4K at 60Hz video display synchronously and asynchronously
- Support 2xM.2 2280 SATA/PCIE/for NVMe SSD + 1x2.5'' SATA HDD/SSD
- Support 2.5G & 1G Dual RJ45 LANs+M.2 2230 2.4G & 5G WiFi/Bluetooth 5.0
- Full featured Type-C, support 4K at 60Hz display, PD3.0 15W fast charge, USB3.2
- Onboard a powerful copper fan for heat dissipation, keep the computer stable working 7x24 hours
- Support TPM2.0, PXE, RTC, Wake on LAN, Automatic power on
- Support for Windows/Linux and other systems
- M.2 2280 SATA/PCIE/for NVME. Sequential read up to 7000MB/s; sequential write up to 5000MB/s IOPS; random read up to 1000K IOPS; random write up to 1000K IOPS
- Built-in cooling fan
- Suitable for offices, home theaters, games, command centers, factories, hospitals, shopping malls, etc.

Specifications:
Basic Information:
- CPU: For AMD Ryzen 3 5400U (4-core; 4-thread; CPU frequency 2.7GHz; Dynamic acceleration frequency 3.7GHz)
- TDP: 15-25W
- Motherboard: 144 x 141mm/5.7 x 5.6" customized size
- Graphics card: For AMD Radeon Graphics
- Memory: 2 x SODIMM-DDR4 Slot; DDR4 UP To 3200MHz, LPDDR4 UP To 4266MHZ
- Storage: M.2: 2 x M.2 2280 SATA/PCIE/NVMe SSD, up to 2TB; SATA: 1 x SATA3.0 slot for SATA HDD or SSD
- OS: Support for Windows10 (pre-installed by default)/Windows10 pro/Windows11/Ubuntu/Linux
- Video equipment: supports 4K decoding, supports 3D full HD, shared video memory up to 1536MB, HDMI DP can synchronize dual displays
- Audio output: HDMI output can support multi-channel, 7.1 home theater can be set up; SPK output can be connected to ordinary computer speakers
- Network: 2pcs for Realtek RTL8168/8111/8112 Gigabit Ethernet Controller

Power Supply:
- Input: 100-240VAC/50-60Hz
- Output: 19V/4.74A, 5.5/2.5mm
- Operating Temperature: -10 to 60℃
- Storage Temperature: -20 to 70℃
- Relative Humidity: 0%~90% (non-condensing)

Input/Output Port:
- Switch: 1 x Power On/Off Switch
- Power: 1 x 19V DC In
- Type-C: 1 x Type-C (Support DP/USB 3.2) (4K 60Hz) (PD3.0/60W/20V-3A)
- USB: 2 x USB3.2, 4 x USB2.0
- Display: 1 x DP1.4, 1 x HDMI2.0, 1 x Type-C
- LAN: 2 x RJ45 LAN
- LED: 1 x LED
- Audio: 1 x Audio (MIC & SPK)

Product Dimensions & Details:
- Size: 150 x 145 x 40mm/5.9 x 5.7 x 1.6"
- Net Weight: 0.6kg/1.3 lb
- Shell: Aluminum Alloy+ABS
- Cooling Mode: Power Cooling Fan
- Functions: TPM2.0, PXE, RTC, Wake on LAN, Automatically power on

Package Included:
- 1 x Set of Mini PC

Note:
- It comes without memory or hard disk, but with dual memory channels for DDR4.
- Optional functions: dual-band Wifi and Bluetooth; dual-band Wifi without Bluetooth. If it is needed, please contact us.
