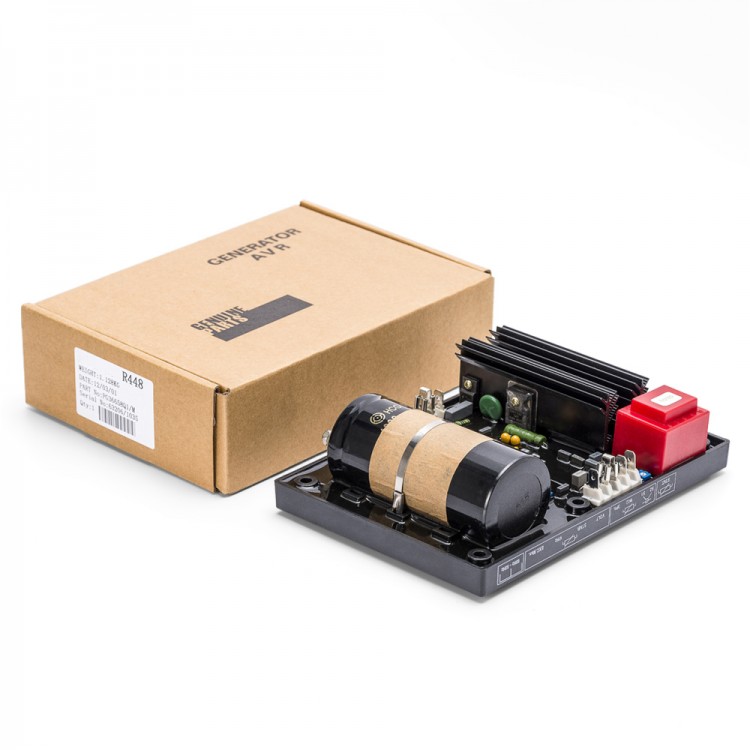

R448 AVR Generator Automatic Voltage Regulator Brushless Diesel Generator Voltage Regulator
Specification:
Normal AVR supply power: 2 auxiliary winding
Shunt supply: 150V - 50/60Hz
Rated overload current: 10A,10s
Electronic built-in (overload, short circuit, and loss of sensing) protection: If excitation current raises over 10 Amps for more than 10 seconds, excitation current will drops automatically to about 1A.
To reset AVR protection, generator must be stopped (or by cutting supply voltage to the AVR).
Protection of power inputs by fuses F1
Voltage sensing 5VA insulated transformer with input voltages taps at:
Terminals 0-110V=95-140V
Terminals 0-220V=170-260V
Terminals 0-380V=340-520V
Package List:
1 x R448 AVR
