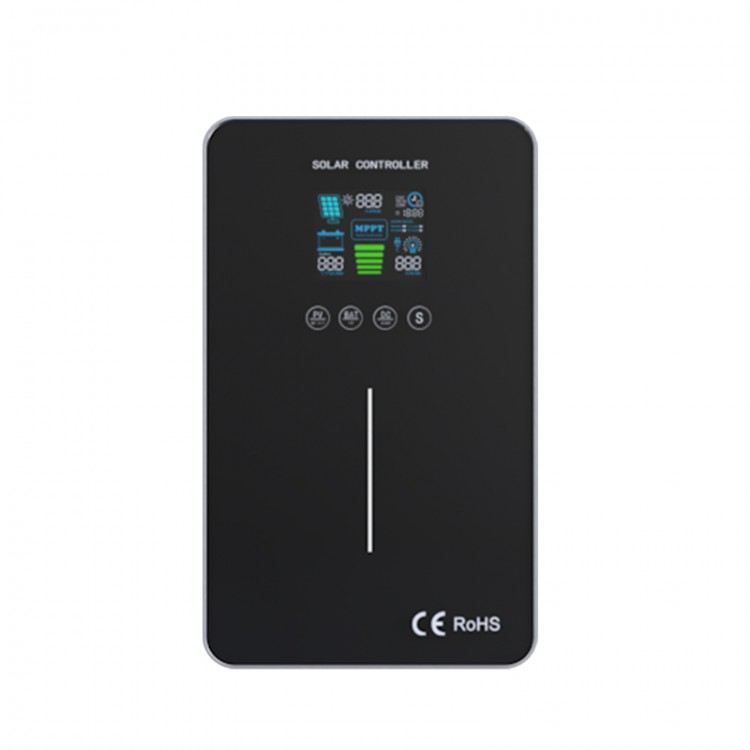

R4860 MPPT Solar Controller 60A DC12V / 24V / 36V / 48V Automatic Identification (RUNNER-60A)

Availability: Out Of Stock

  • Price:$201.60
  • Price in reward points: 2016 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $197.57 $193.54 $187.49 $179.42 Contact US
Quantity:

R4860 MPPT Solar Controller 60A DC12V / 24V / 36V / 48V Automatic Identification (RUNNER-60A)

Attention:

- The product is not equipped with a communication cable.
- Batteries are not included in the package.
- RS485 to USB communication cable and WIFI module (APP) can be additionally purchased.

Features:
● Efficient MPPT controller algorithm, MPPT efficiency is not less than 99.5%, the conversion efficiency of the whole machine is up to 98%.
● Charging method: Three-stage charging (constant current, constant voltage, floating charge) can effectively extend the life of the battery.
● LOAD mode has normally open / normally closed mode, light control mode, dual time control mode, light control-fixed time control mode.
● Automatic identification of battery system voltage.
● Customers can choose to charge three types of commonly used batteries (sealed lead-acid batteries, colloidal lead-acid batteries, open lead-acid batteries), and self-defined parameters to charge other types of batteries.
● With current limit charging function, when the power of the user's battery board is too large, the controller automatically maintains the charging power, and the charging current will not exceed the rated value.
● You can view the device operating data and working status, and at the same time can support the modification of the controller display parameters.
● RS485 communication, which can provide communication protocol to facilitate customers' integrated management and secondary development.
● Support PC software monitoring, support WIFI module expansion to realize app cloud monitoring.
● Products have passed CE, ROHS, FCC certification; can cooperate with customers to pass various certifications.

Parameters:


Package Included:
- 1 x MPPT Controller
- 1 x User Manual
- 1 x Mounting Backboard
- 4 x Screws
- 1 x Temperature Cable

Note: Batteries are not included.
