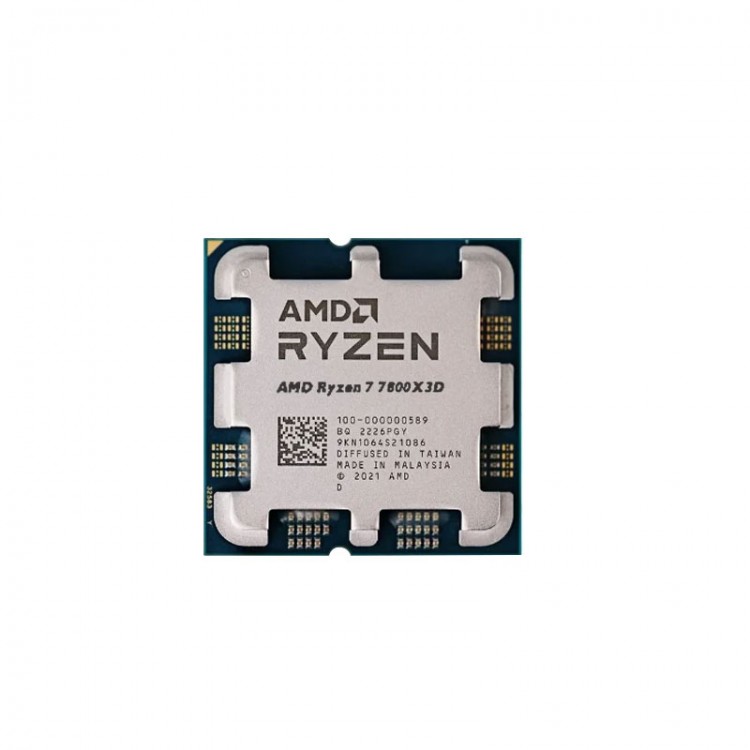

R7 7800X3D Brand New CPU Gaming Processor 8-Core 16-Thread 5NM 96MB 120W TDP for AMD RYZEN

R7 7800X3D Brand New CPU Gaming Processor 8-Core 16-Thread 5NM 96MB 120W TDP for AMD RYZEN

Features:
- R7 7800X3D processor for AMD RYZEN.
- Amazing gaming processor with technology for AMD 3D V-CACHE: The technology delivers absolute gaming performance which exceeds the highest expectations.
- Technology that saves you time: With time-saving connectivity features and technologies, like PCIe 5.0 storage support, ultra-fast WiFi 6E wireless, 8 cores/ 16 processing threads, and dedicated video accelerators, elevate your creator experience with a R7 7800X3D processor.
- Upgradeable for years to come: Power, performance and possibility. Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and technology for AMD EXPO to the increased bandwidth with PCIe 5.0, supported through 2025.

General Specifications:
- Name: For AMD Ryzen 7 7800X3D
- Family: For Ryzen
- Series: For Ryzen 7000 Series
- Form Factor: Desktops , Boxed Processor
- Market Segment: Enthusiast Desktop
- Technologies for AMD PRO: No
- Consumer Use: Yes
- Regional Availability: Global
- Former Code-name: Raphael AM5
- Architecture: Zen 4
- # of CPU Cores: 8
- Multi-threading (SMT): Yes
- # of Threads: 16
- Max. Boost Clock: Up to 5 GHz
- Base Clock: 4.2 GHz
- L1 Cache: 512 KB
- L2 Cache: 8 MB
- L3 Cache: 96 MB
- Default TDP: 120W
- Processor Technology for CPU Cores: TSMC 5nm FinFET
- Processor Technology for I/O Die: TSMC 6nm FinFET
- CPU Compute Die (CCD) Size: 71mm²
- I/O Die (IOD) Size: 122mm²
- Package Die Count: 2
- Memory Overclocking Technology for AMD EXPO: Yes
- Precision Boost Overdrive: Yes
- Curve Optimizer Voltage Offsets: Yes
- Master Support for AMD Ryzen: Yes
- CPU Socket: AM5
- Supporting Chipsets: A620 , X670E , X670 , B650E , B650
- CPU Boost Technology: Precision Boost 2
- Instruction Set: x86-64
- Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
- Thermal Solution (PIB): Not Included
- Recommended Cooler: Liquid cooler recommended for optimal performance
- Max. Operating Temperature (Tjmax): 89°C
- *OS Support: For Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity:
- Native USB 3.2 Gen 2 (10Gbps) Ports: 4
- Native USB 3.2 Gen 1 (5Gbps) Ports: 0
- Native USB 2.0 (480Mbps) Ports: 1
- Native SATA Ports: 0
- PCI Express Version: PCIe 5.0
- Native PCIe Lanes (Total/Usable): 28 , 24
- Additional Usable PCIe Lanes from Motherboard: X670E 12x Gen4;X670 12x Gen4; B650E 8x Gen4; B650 8x Gen4
- NVMe Support: Boot , RAID0 , RAID1 , RAID10
- System Memory Type: DDR5
- Memory Channels: 2
- Max. Memory: 128 GB
- System Memory Sub-type: UDIMM
- Max Memory Speed: 2x1R DDR5-5200; 2x2R DDR5-5200; 4x1R DDR5-3600; 4x2R DDR5-3600
- ECC Support: Yes (Requires mobo support)

Graphics Capabilities:
- Graphics Model: For AMD Radeon Graphics
- Graphics Core Count: 2
- Graphics Frequency: 2200 MHz
- USB Type-C DisplayPort Alternate Mode: Yes

Product IDs:
- Product ID Boxed: 100-100000910WOF
- Product ID Tray: 100-000000910

Key Features:
- Supported Technologies: Technology for AMD EXPO and Technologies for AMD Ryzen

Package Included:
- 1 x Processor

Packaging Details:
- G.W.: 0.2kg
