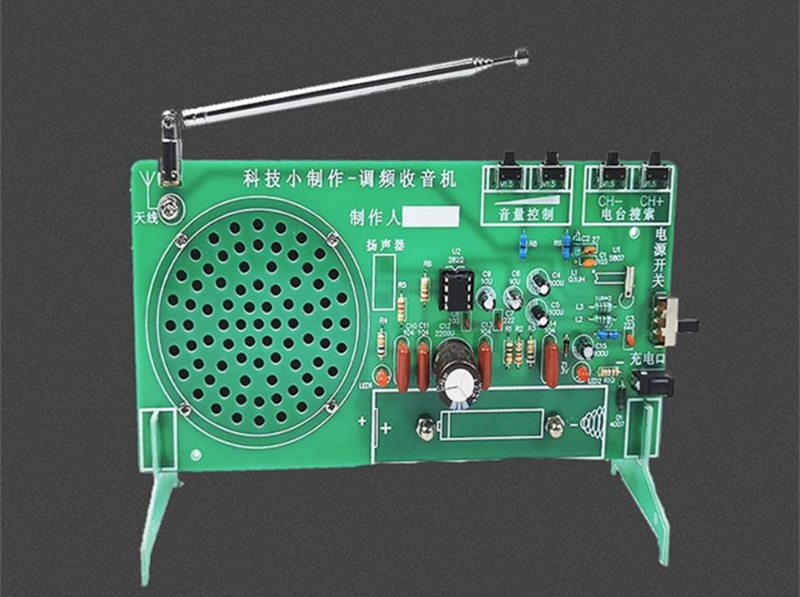

Radio Kit DIY FM Frequency Modulation Radio Kit RDA5807FP Integrated Circuit for Electronic Education Component
Description:
- RDA5807 radio module is used in the radio part of this kit to realize FM radio. RDA5807 module has the effect of 65-108MHz global FM reception band compatibility, and has the functions of noise elimination, soft mute, bass enhancement, high sensitivity, low noise, and strong anti-interference ability, so it is easy to use this module and the system is reliable and stable.
- The power amplifier adopts TDA2822 integration, which has the characteristics of simple circuit, good sound quality and wide voltage range.

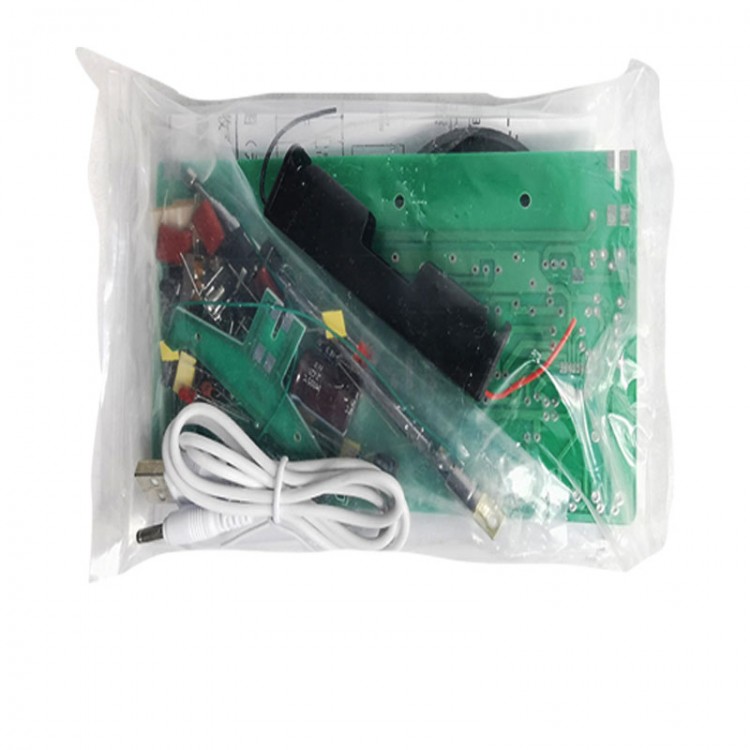

Package Included:
- 1 x Radio Kit
- 1 x Power Cable
Note:
- Battery is not included.
- This product is not welded, you need to finished it by yourself.
- If you need the instruction video, please leave a message after receiving the product.
