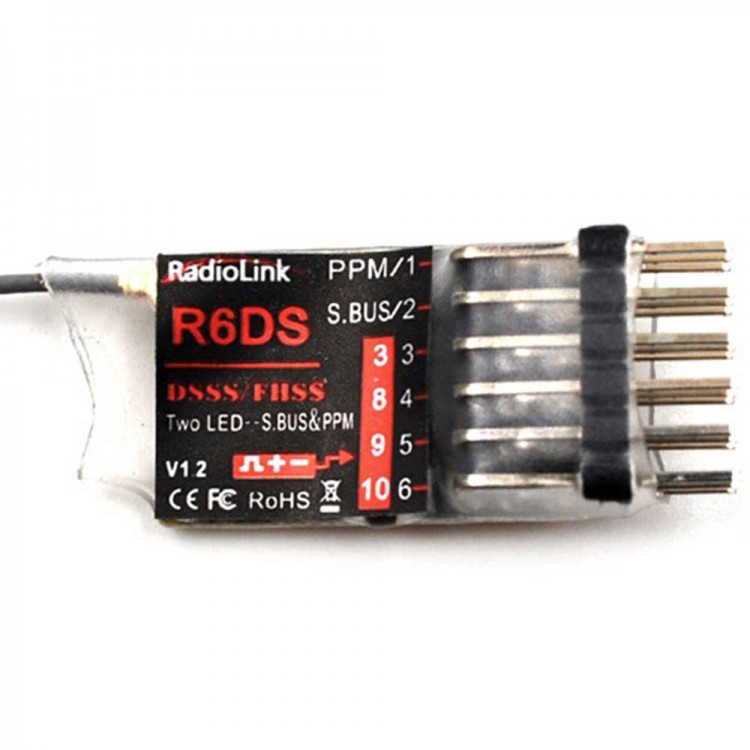

RadioLink R6DS 2.4G 6CH DSSS & FHSS RC Receiver for AT9 AT9S AT10 Transmitter Support SBUS PPM PWM
Description:
R6DS, 2.4G 6CH receiver, DSSS & FHSS used for the item Radiolink AT9, AT10 and AT9S. It is the newest and smallest 6 channels receiver of Radiolink.
Feature:
- DSSS & FHSS technique, super anti-interference and stability
- Top speed response, 3ms for all channels parallel
- Max voltage input is 6V
- Control distance about 600m
- Top precision 4096, 0.25us every bit insure every servo stable
- Mini design for convenient assembling and operating
- Totally weights 3.9g, never burden to your drones
- PPM/SBUS signal can be connected with the flight controller through one cable, easy setting
- R6DS can output SBUS, PPM and PWM three signals simultaneously
- Specially used for light drones, compatible with all flight controllers such as DJI NAZA, ZERO TECH, PIX, APM, MINI APM, NAZE32, and CC3D etc.
Specifications:
- Brand: RadioLink
- Model: R6DS
- Channels: Red LED indicator is for PWM mode. Blue LED for PPM. Purple LED is for SBUS mode.
- Max input voltage: 6V
- Current consumption: 38-45mA (Input voltage: 5V)
- Control distance: About 600m
- Section precision 4096
- Item size: 32 * 15 * 10mm (Without cable)
- Item weight: 3.9g
Package List:
- 1 * Radiolink R6DS Receiver
