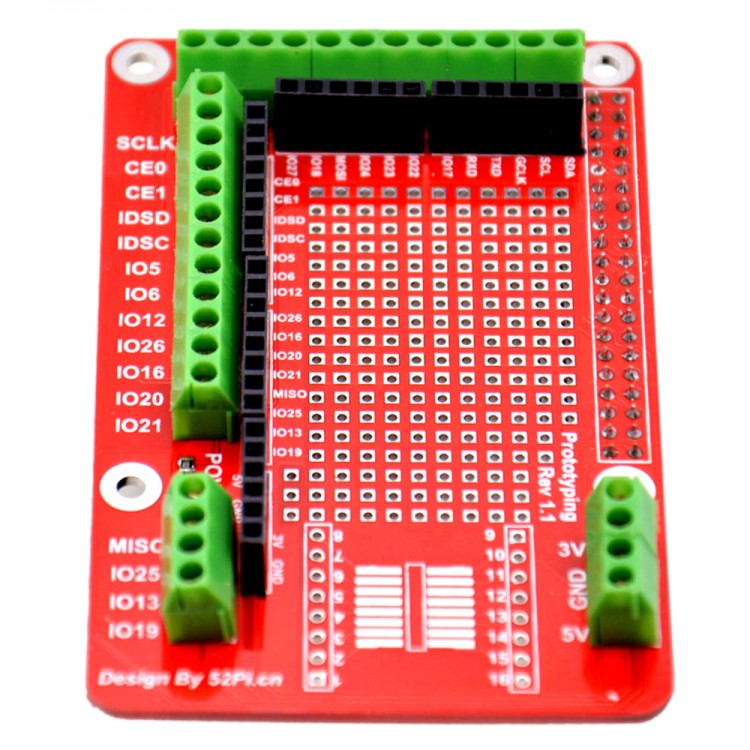

Raspberry Pi Prototype Development Module Board for DIY Hardware Weld Primer
Product Overview:
The Prototype development module is designed specifically for the Raspberry Pi. The module suitable enthusiasts and user can weld peripheral to the module;
The module expand some amphenol connector and some SMT, so the user can finish prototype test easily.
Feature:
- Expand common GPIO through amphenol connector
- Expand common GPIO through Female Header Connector
- Set aside a large amount of welding hole
Port:
- I2C amphenol connector
- Female Header Connector
- SPI amphenol connector
- SPI Female Header Connector
- Serial port amphenol connector
- Serial port Female Header Connector
- 3.3V Vcc
- 5V Vcc
Product Parameters:
- 3.5mm Amphenol Connector
- 2.54mm Female Header Connector
Typical Application:
- Hardware weld primer
- Prototype experiment
- DIY enthusiasts
How to use:
- Insert the Prototype development module to Raspberry Pi, Pay attention don’t make the direction reversed!
- The correct direction of insert module is above the Raspberry Pi’s PCB.
Package includes:
- 1 x Module
