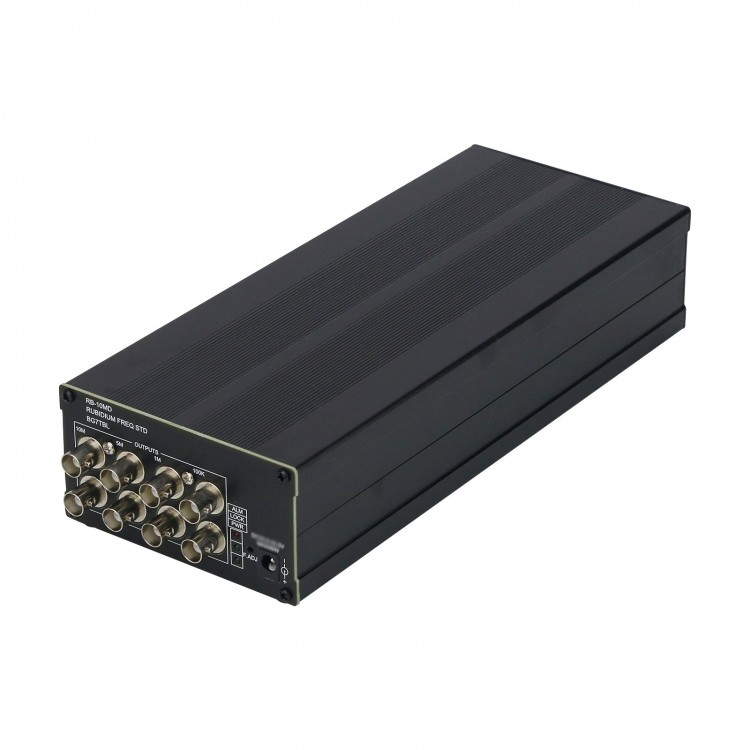

• RB-10MD 10M/5M/1M/100K/1PPS 8-Channel Rubidium Frequency Standard High Precision Built-in SA.22C Rubidium Clock 15V

RB-10MD 10M/5M/1M/100K/1PPS 8-Channel Rubidium Frequency Standard High Precision Built-in SA.22C Rubidium Clock 15V

Availability: In stock, usually dispatched in 1 business day

  • Price:$708.60
  • Price in reward points: 7086 Reward Points: 71
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $694.43 $680.26 $659.00 $630.65 Contact US
Quantity:

RB-10MD 10M/5M/1M/100K/1PPS 8-Channel Rubidium Frequency Standard High Precision Built-in SA.22C Rubidium Clock 15V

Specification:

- Product name: 10M, 5M, 1M, 100K, 1PPS Rubidium frequency standard
- Model: RB-10MD
- Power supply: DC15V; power on≤40W; stable < 15W
- 10M output wave power: 2-channel sine wave; 12dBm±2dB
- 5M output wave power: 2-channel sine wave; 12dBm±2dB
- 1M output wave power: 2-channel sine wave; 12dBm±2dB
- 100K output wave power: 1-channel sine wave; 12dBm±2dB
- 1PPS output wave power: 1Hz, 1-channel square wave, 0 - 5V, duty cycle 50%
- Frequency adjustment range: about 0.05Hz
- Output interface: power supply5.5/2.1 socket; signal output, BNC port
- Indicator:
  ALM: alarming light; light on without 10M signal output
  LOCK: rubidium clock lock light; light on when locked; light off when unlocked
  PWR: power indicator; light on when power on
- Size: W x H x D = 107 x 55 x 275mm (includes the BNC connector)
- Weight: 2.8kg (includes the adapter)

Package Included:

- 1 x Host
- 1 x Power Adapter
