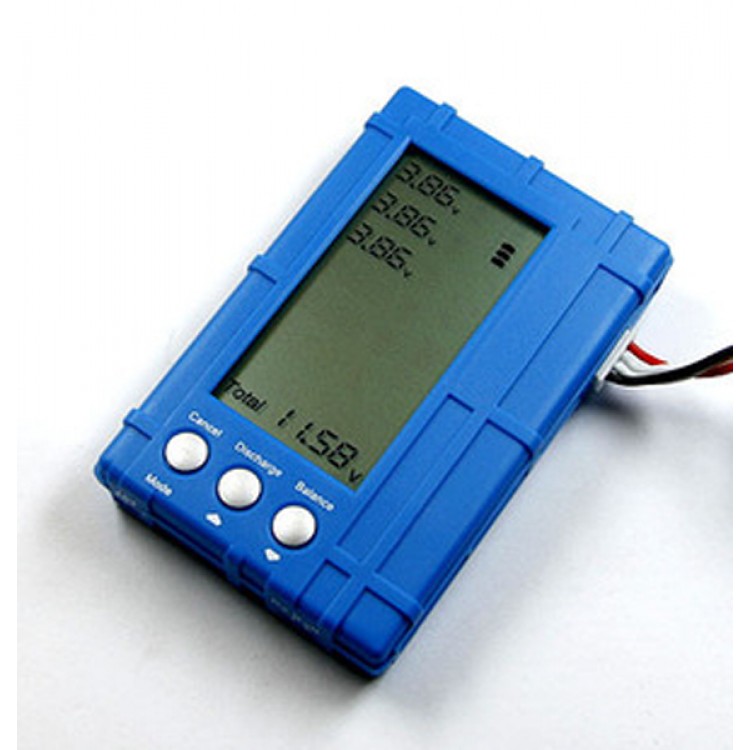

RC Model 3in1 2-6S Max 5W Lipo Li-Po Battery LCD Balancer Display-Blue
Features:
- The Balancer / Discharger is designed for Li-Polymer and Li-Fe battery, it can measure battery voltage precisely and balance cell voltage in battery pack, or discharging battery for long time storage.
- The balance function can be executed before or after battery charged. It also can be done during battery charging process. It makes sure battery pack keeping in excellent condition.
- User could observe all cell voltage in whole battery pack at once. It helps user to find out which cell is abnormal during charging or discharging process.
Specifications:
- Dimensions: 93.5mm x 60mm x 17mm
- Balance Voltage Setting Range (Lower Limit): 2V - 3.9V (pre-setting value 3.3V)
- Discharge Voltage Setting Range (Lower Limit): 3V - 4.2V (pre-setting value 3.9V)
- Max. Discharge Power: 5W
Measureable Battery Type and Amount:
- Li-Polymer / Li-Fe: 2 - 6 Cell
- (standard voltage 7.4V - 22.2V using divided voltage connector)
- Receiver Battery: 1.2V - 12V DC
- (Not limit battery type, but need external power 7.4V - 22.2V, use JST connector)
