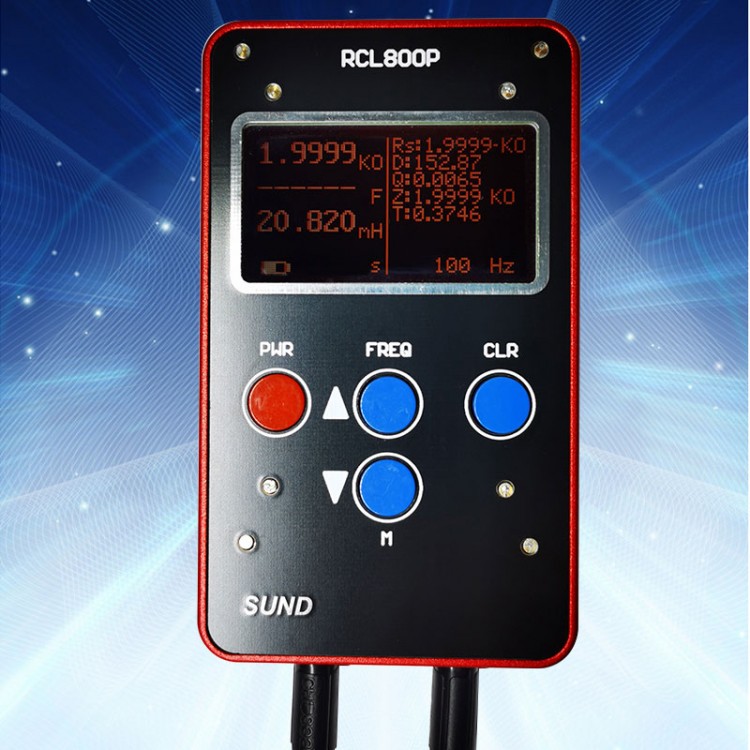

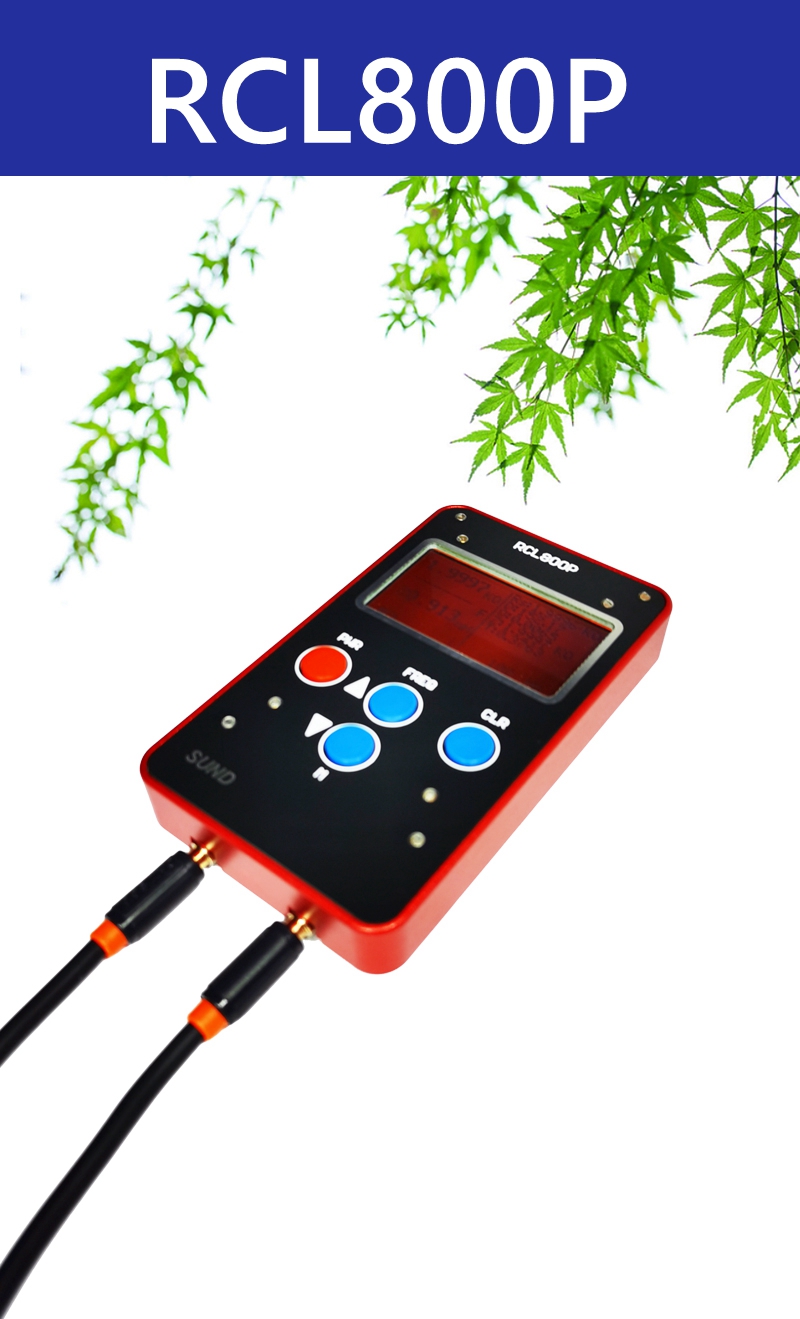

RCL800P Mini Handheld Inductance Meter Ultra-thin Precision Digital Resistance Capacitance Inductance Meter ESR meter

RCL800P Mini Handheld Inductance Meter Ultra-thin Precision Digital Resistance Capacitance Inductance Meter ESR meter

Features:

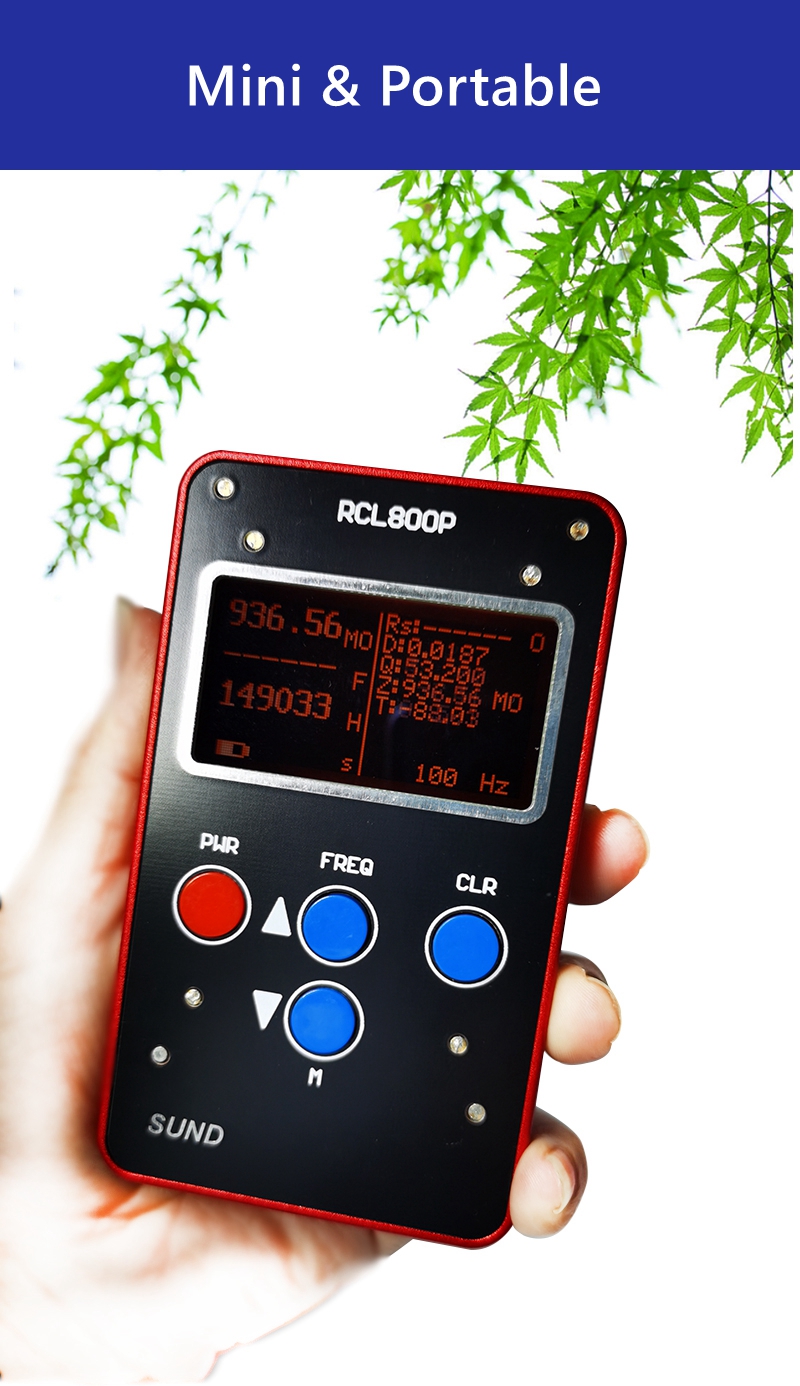

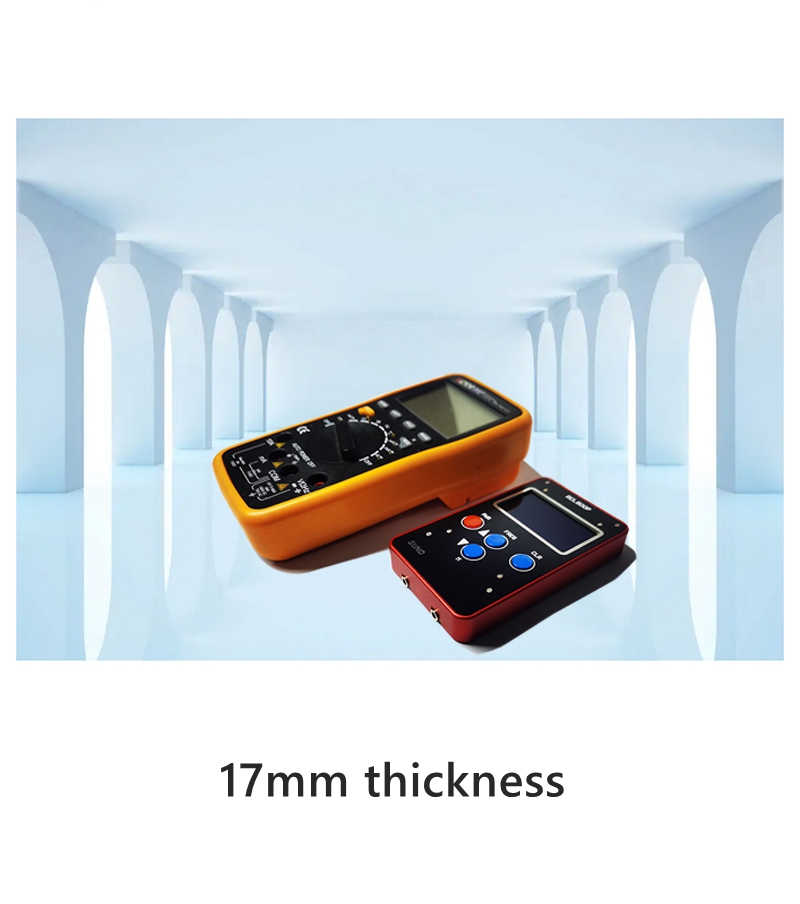

- RCL800P is a mini, thin and portable LCR digital bridge with a thickness of only 17mm.
- RCL800P provides a basic accuracy of up to 0.1% to meet stringent detection applications

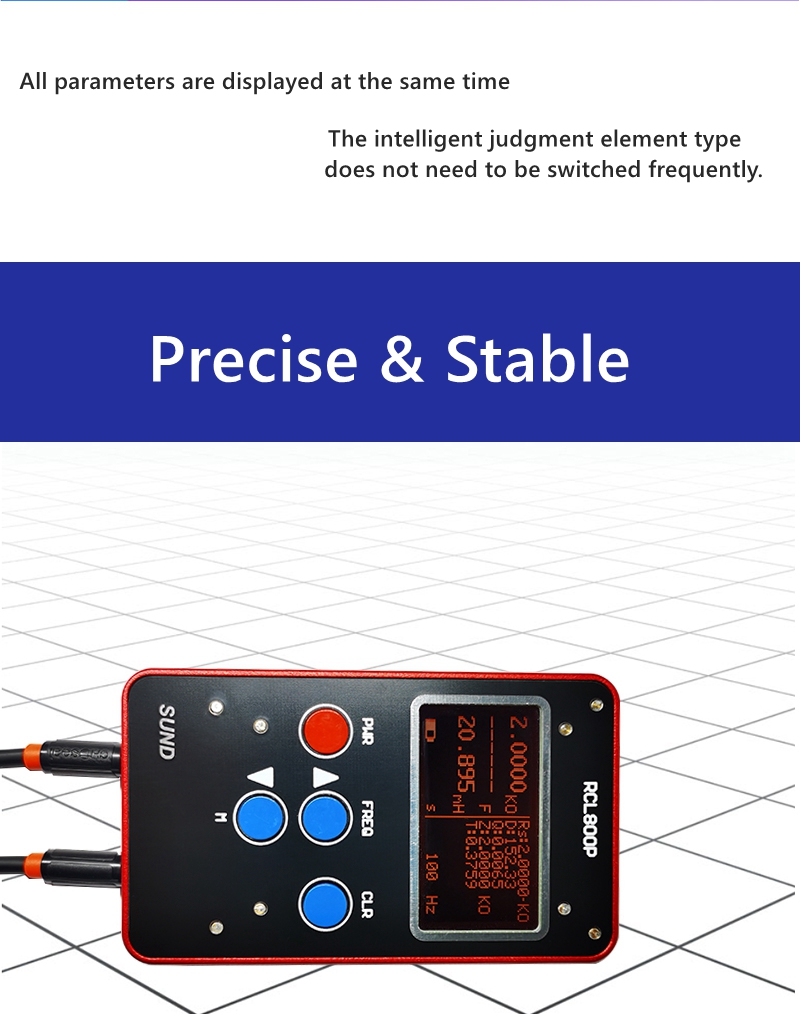

- Display all parameters at the same time, intelligently judge the type of components, without frequent switching

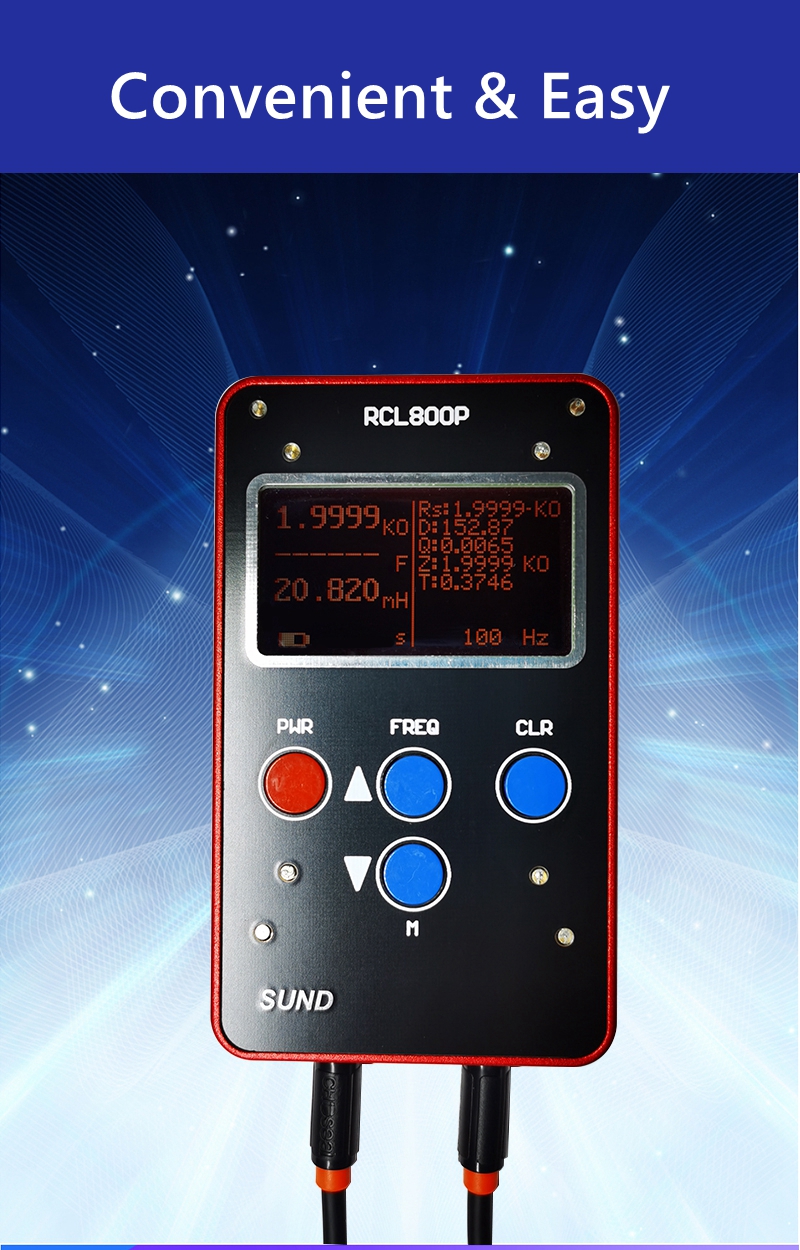

- Easy to use interface
- Automatic gain, automatic range
- RCL800P supports three test frequencies of 100Hz, 1KHz and 10KHz
- Built in battery, supporting USB TYPEC charging
- The RCL800P has been calibrated before delivery, and can be used without calibration, RCL800P also supports user calibration

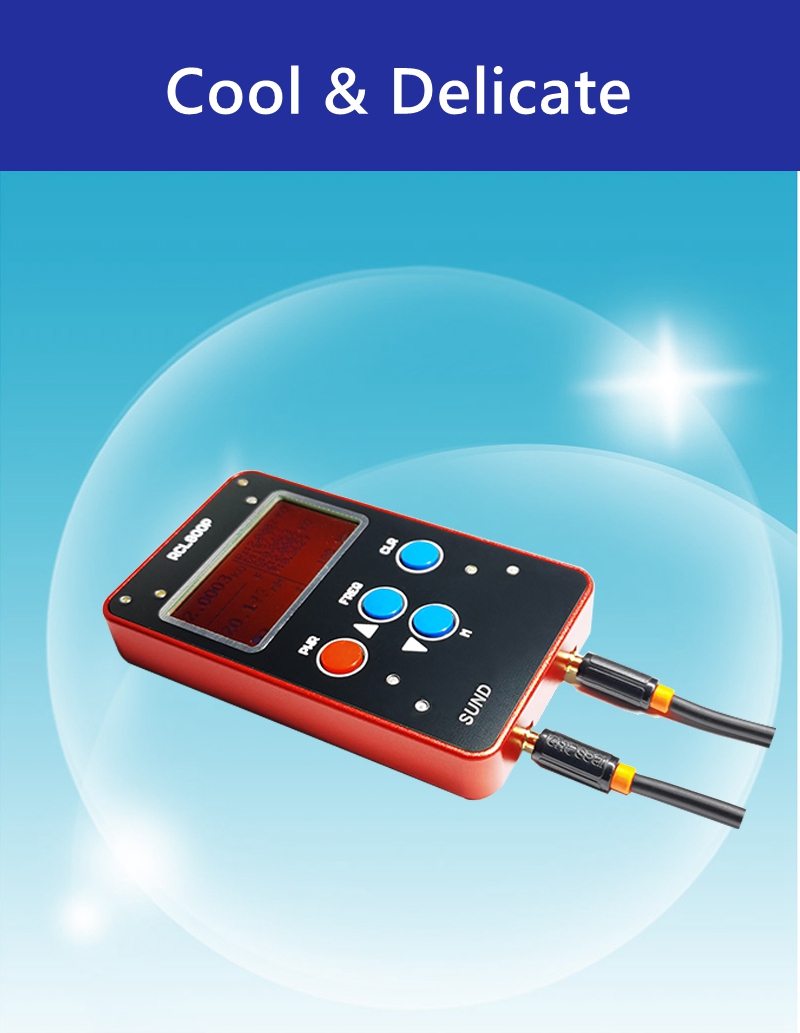

- RCL800P is a rare instrument with beautiful and cool appearance

Specification:
- Measured parameter: L, C, R, D, Q, ESR, θ
- Basic accuracy: 0.1%
- Equivalent circuit: Serial/Parallel connection
- Range mode: Automatic
- Test speed: 2 times/second
- Calibration function: support open circuit calibration and short circuit calibration
- Test end configuration: 4-terminal Kelvin test line
- Display: LCD Display
- Backlight: support
- Power display: support
- Low power shutdown: support
- Battery life: about 3 hours
- Power supply mode: battery power supply
- Charging port: USB TYPE-C
- Test signal frequency: 100Hz, 1kHz, 10kHz
- Test signal level: 2V

Measurement display range:
- R: 0.0001ohm~9999.9Mohm
- C: 0.0001PF~9999.9mF
- L: 0.0001uH~9999.9H
- D,Q: 0.0001~99999

General specification:
- Working temperature: 0℃~40℃
- Working humidity: ≤90%RH
- Power requirement: built-in lithium battery
- Power consumption: ≤0.85W
- Dimension: 116 x 68 x 17mm
- Weight: 150g

Package Included:
- 1 x RCL800P
