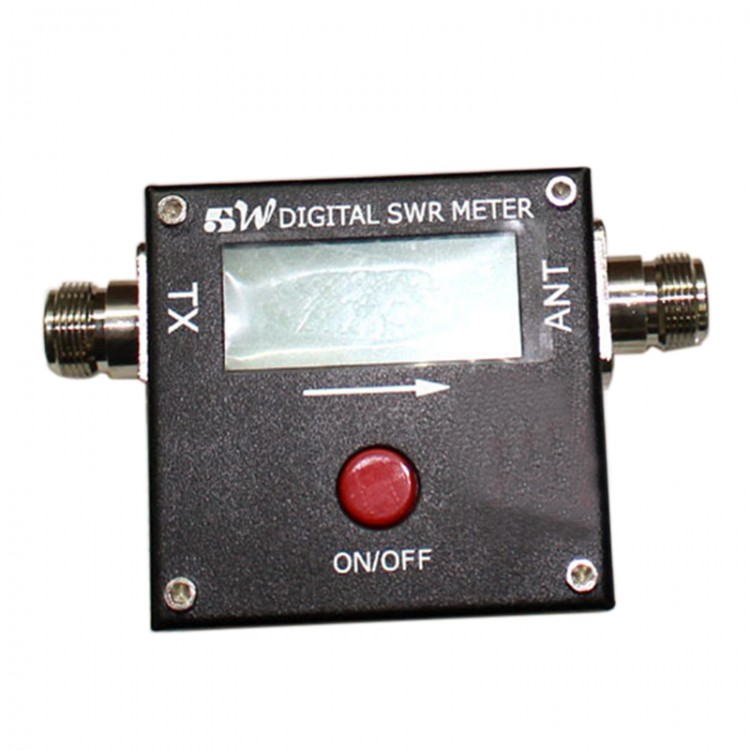

REDOT 1051 (Upgraded 1050) Interphone Standing Wave Table SWR Power Meter UV Segment

Description:
Red dot series portable digital standing wave table/power meter, adopts the three and a half of the LCD display, use the contains A/D conversion of single-chip computer, full automatic measurement process is complete, do not need to like the traditional pointer table, tuning knob school full, dial switch, such as tedious operation, just press the radio emission key, you can directly read the standing wave ratio on LCD. For example, when the body moves near the antenna, the antenna standing wave ratio can be clear at A glance, the influence of some HAM even use it to monitor whether the bird falls on the antenna. Now has become an essential tool for the HAM are handy, the red button, which is a collection of operations, and a highlight of the modelling design, many HAM will directly in the wave table called red dot.

Function index:
1.Reverse power is/P:
 Measuring range: + / - 0.0 ~ + 120 w, error of plus or minus 5%.
 Max power: < 120 w. A minimum of 0.1 W out data. 1 w data more accurate.
2.Voltage standing wave ratio S (but with "5" as the difference between actual display to switch to "Γ") :
 Measuring range: 1.00 ~ 1.99, 2.0~19.9.
 After standing wave coefficient is greater than 19.9 shows: 1. _ _
3.Standing wave: 100 MHZ to 500 MHZ.
 Power: V section (145 MHZ as center), Usection(435 MHZ as the center).
4.Temperature range: 0  ~ 60 deg C
5.Power consumption:
 AAA alkaline batteries: 3 grains
 LCD backlight closed: < 1.3 mA
 LCD backlight open: < 15 mA
6.Size (excluding protrusions) : 67 * 68 * 36 (mm)
7.Joint type: N
8.N.W: 250 g (no battery)

Parameters:
- Max. power:120w
- Standing wave:0-19.9
- Frequency: power145MHz/435MHz;Standing wave100MHz-500Mhz
- Screen: 31/2LCD, blue backlight
- Sampling rate:100/s
- Sampling resolution:12BIT
- RF interface:N-KF (L16)
- Insert consumption: <0.15db (VHF),<0.25DB(UHF)
- Reflection loss: >30db
- Orientation:>30db(VHF),>26db(UHF)
- Battery: AAA*3
- Power consumption:<3mA (Off the backlight );<10mA(On the backlight)
- Size: 67*69*37 (mm)
- Weight: 270g (excluding battery)

Package included:
- 1 x SWR Power Meter
