RF Demo Kit NanoVNA-F RF Test Board For HAM Vector Network Analyzer Tests Filter Attenuator
Features:
- Made of fine quality material, practical, has a long service life.
- Compact and lightweight, easy to operate and use.
- This is a vector network analyzer learner tool.
- Can be used with NanoVNA-F to measure 6.5M ceramic notch filter.
- Can be used with NanoVNA-F to measure homemade low-pass-filter, 3dB bandwidth about 400MHz.
Specifications:
- Material: PCB
- Color: green
- RLC series and parallel circuit 1
- RLC series and parallel circuit 2
- 33 ohm resistance, SWR=1.5
- 75 ohm resistance, SWR=1.5
- BSF ceramic notch filter, center frequency 6.5MHz
- BPF ceramic filter, center frequency 10.7MHz
- RC series circuit
- LC series circuit
- Capacitor
- Inductance
- Homemade low-pass filter, 3dB bandwidth 400MHz
- Homemade high-pass filter, 3dB bandwidth 500MHz
- Short-circuit calibration circuit
- Open-circuit calibration circuit
- 50 ohm load calibration circuit
- Straight-through
- 10dB attenuation circuit
- 3dB attenuation circuit
- Each set of functional circuits

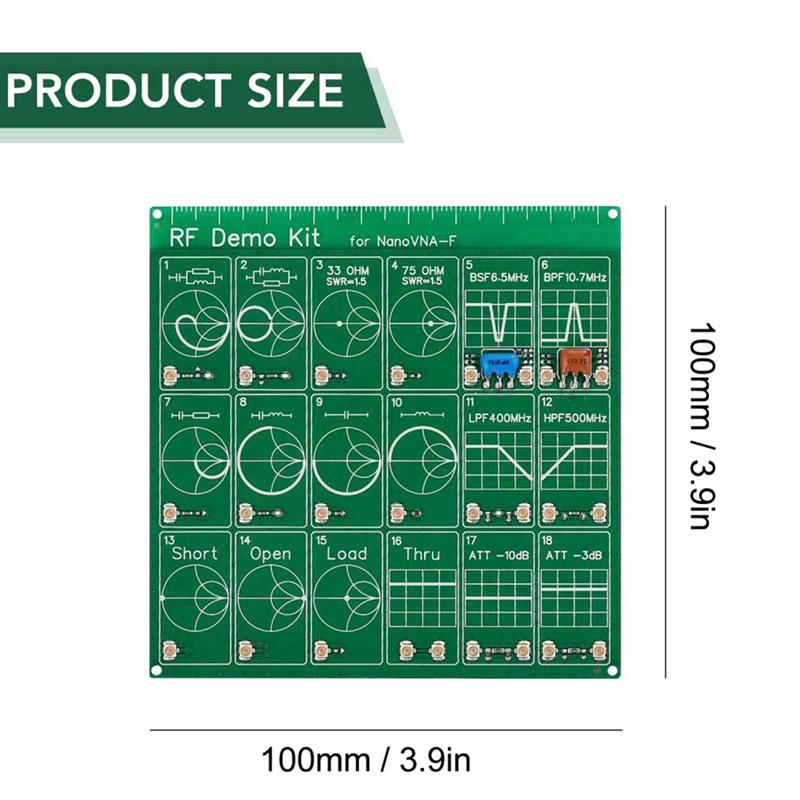

- PCB size: 100 * 100mm / 3.9 * 3.9in
Package Included:

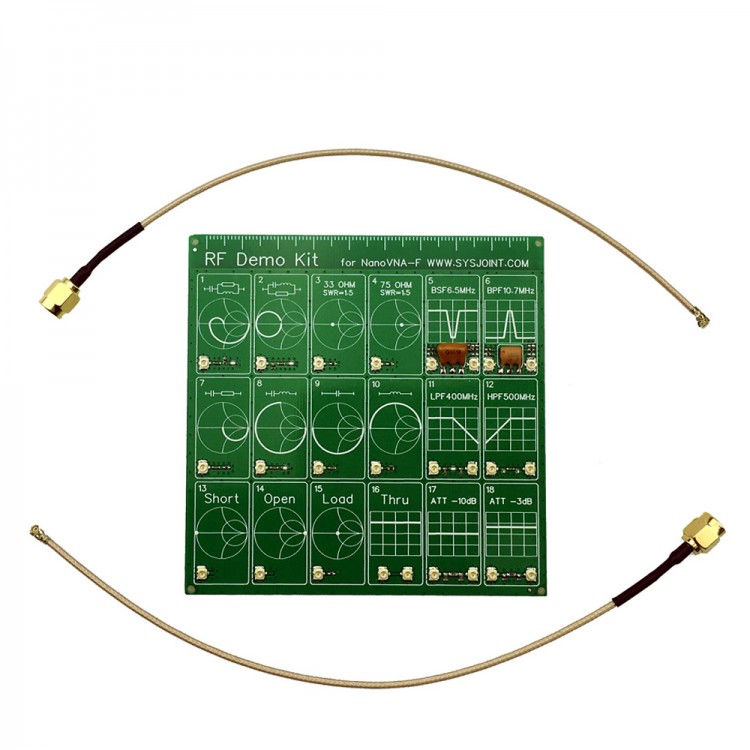

- 1 x PCB For RF Demo Kit
- 2 x Adapter Cables
Note:
- NanoVNA-F analyzer pictured is not included, for demonstration purposes only. Thank you for your understanding!
