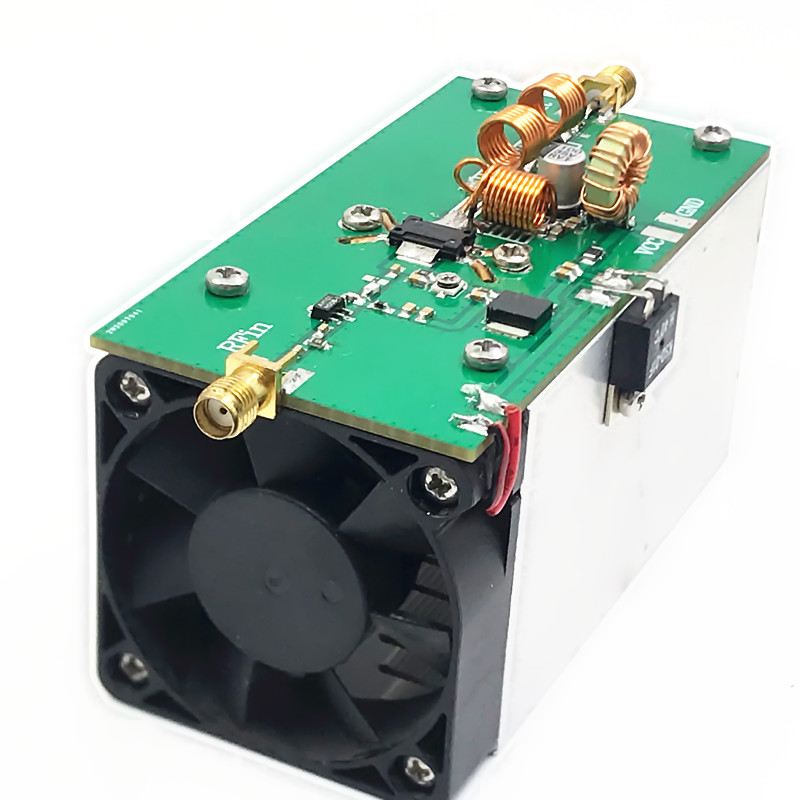

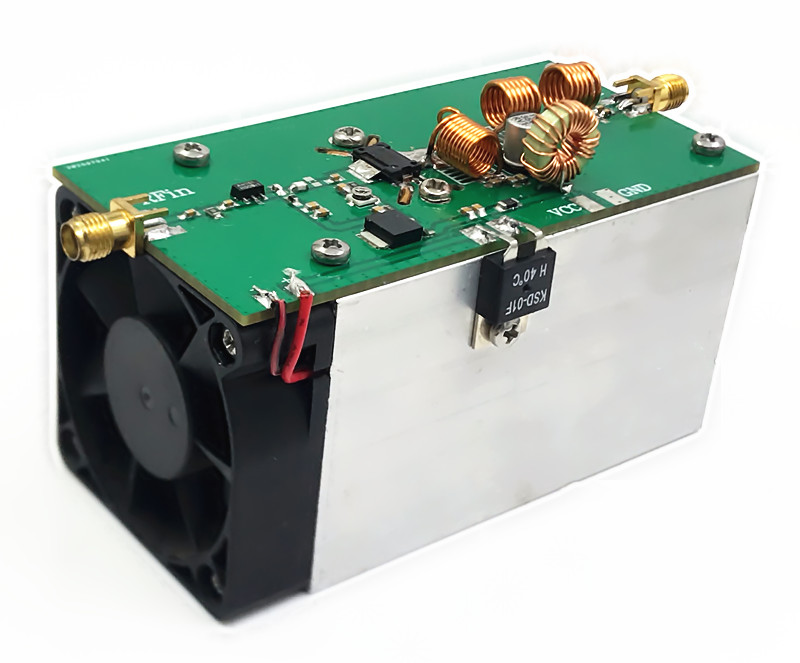

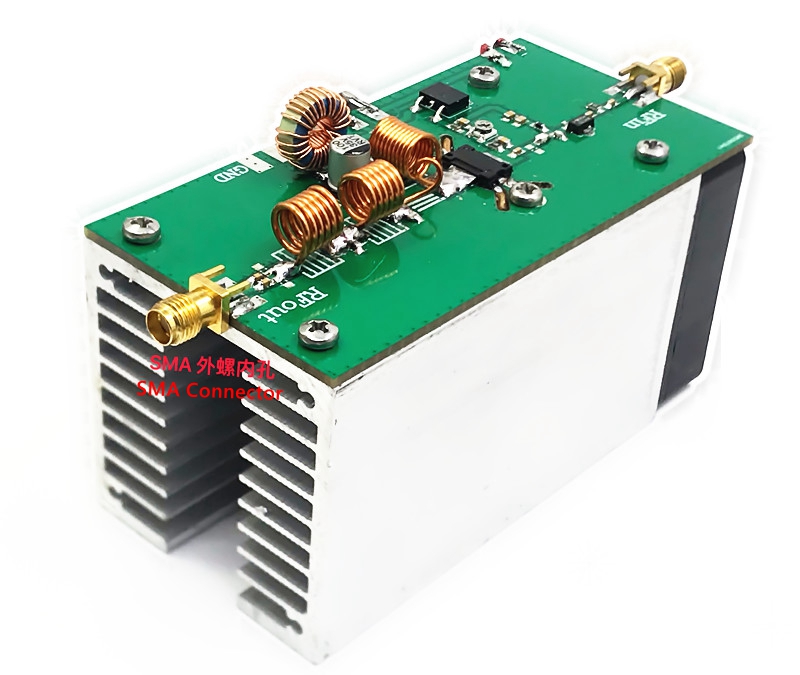

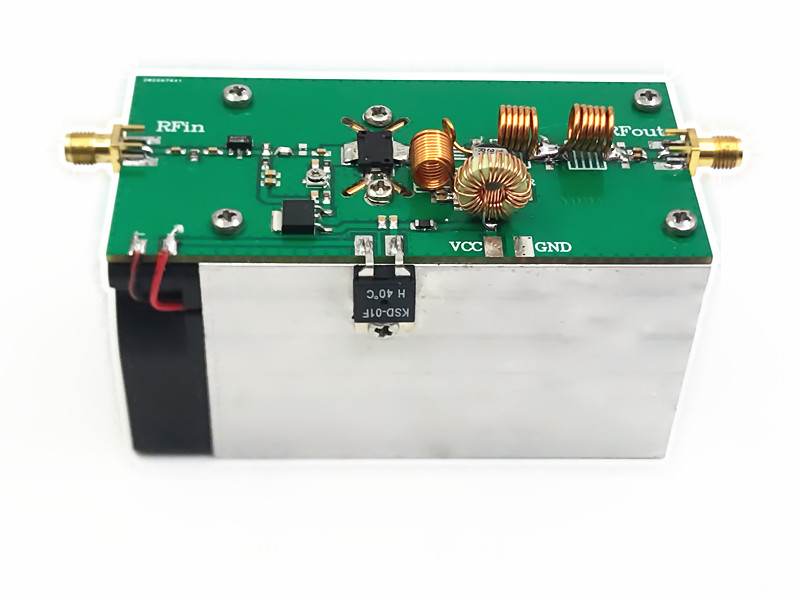

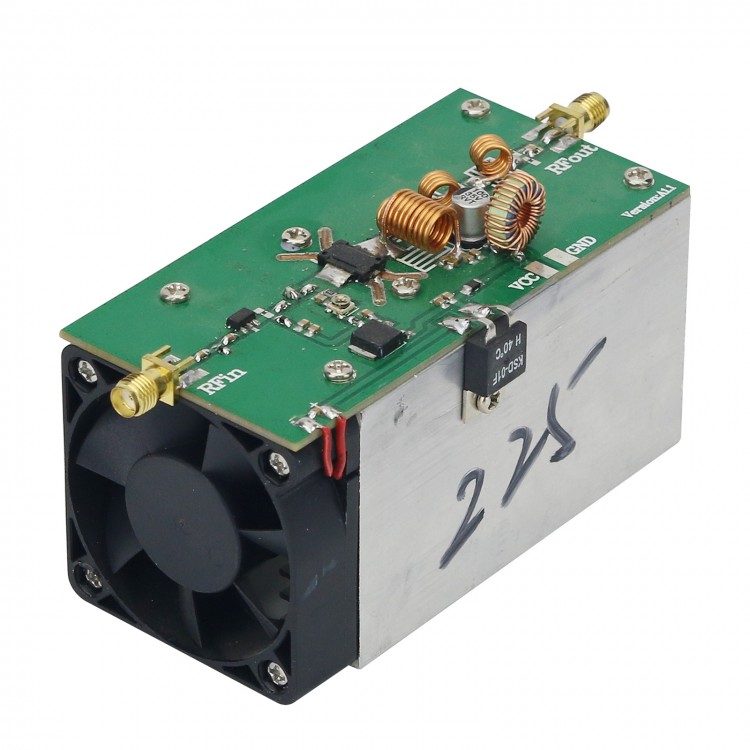

RF Power Amplifier 225MHz 25W High Performance Power Amplifier with Intelligent Temperature-control Fan
Specification:
- Working frequency: 225MHz (170-270MHz)
- Input power: 3d-12dBm
- Output power: 44.5dBm (25W)
- Power gain: 35dB
- Power supply voltage: 12-18V
- Power supply current: 3.0A (varies with output power)
- System impedance: 50ohm
- Connector type: SMA-K
- Dissipation type: Intelligent temperature-control fan
- Size: 100 x 50 x 50mm
Package Included:
- 1 x RF Power Amplifier
Note:
- It is prohibited for no load or serious load mismatch power on.
