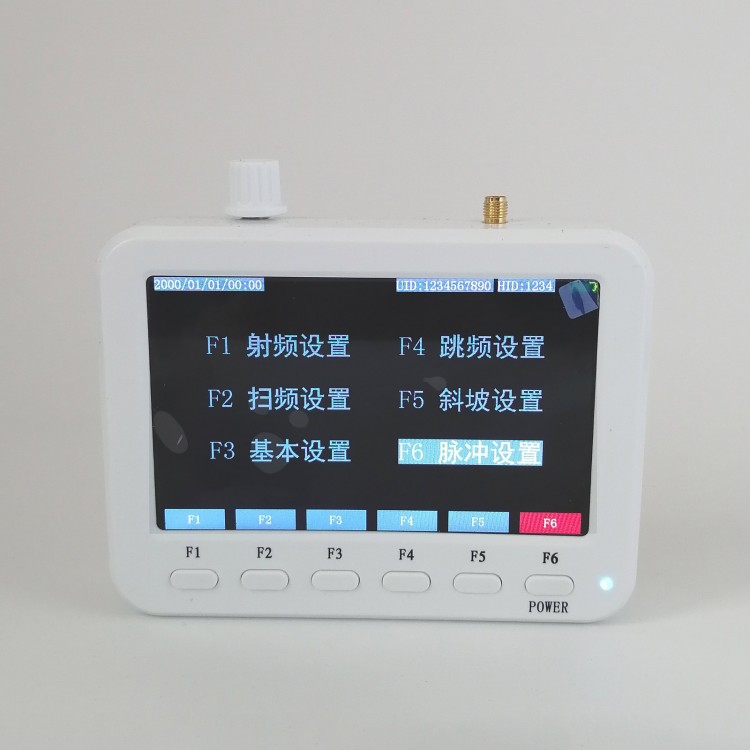

RF Signal Generator 25MHz-3GHz with Frequency Sweep Frequency Hopping Ramp Pulse Function SG3000 Pro

RF Signal Generator 25MHz-3GHz with Frequency Sweep Frequency Hopping Ramp Pulse Function SG3000 Pro

Description:
SG3000 Pro portable radio frequency signal source, signal frequency range 25MHz ~ 3GHz, power dynamic range -41.5dBm to 15dBm (reference value).

This RF signal source has adjustable frequency and power. It can be used for RF amplifier, switch, filter, interference and other tests, as well as for wireless communication and RF circuit research and development.

Main Functions:
- Single frequency point output: signal frequency, 25MHz ~ 3GHz; signal power, -41.5dBm ~ 15dBm (reference value); (signal frequency and signal power adjustable)
- Frequency sweep output: 100ms / 1s / 10s interval, start frequency, stop frequency, step frequency, transmit power adjustable
- Frequency hopping output: 100ms / 1s / 10s interval, adjustable start frequency, stop frequency, and transmit power
- Ramp output: 100ms / 1s / 10s interval, adjustable start frequency, start power, end power
- Pulse output: pulse time (minimum time is 2000us), adjustable start frequency, pulse width and transmit power (minimum duration of frequency is 20us)
- Frequency sweep output: 100ms / 1s / 10s interval, adjustable start frequency, stop frequency, step frequency and transmit power

Recommended Applications:
This RF signal source has adjustable frequency and power. It can be used for RF amplifier, RF gain module, RF switch, RF filter, mixer, attenuator, duplexer, line attenuation, antenna measurement and other tests, and can also be used for wireless communication and RF circuit research and development.

Technical Parameters:
Frequency:
- Frequency range: 25MHz to 3GHz
- Frequency resolution: ≥ 3Hz (reference value)

Power:
- Power range: -41.5dBm ~ 15dBm (reference value)
- Power resolution: ≥ 1dBm (reference value)

Frequency Sweep:
- Scanning method: step scan (equal interval frequency step)
- Scanning mode: continuous
- Scanning range: within the frequency range of the instrument
- Step change: linear
- Frequency step: 1kHz (minimum)
- Dwell time: 100ms, 1s, 10s

Display:
- Type: TFT LCD
- Resolution: 800 × 480
- Size: 5 inches
- Charging time: 4-5 hours

Surroundings:
- Working temperature: -20 ~ 45℃
- Storage temperature: -20 ~ 70℃
- RF interface: SMA-K
- Built-in RTC clock: support

Interfaces:
- RF interface: SMA-K
- Charging interface: Micro USB interface

2.4G Omnidirectional Antenna:
- Frequency range .: 2.4 ~ 2.5 GHz
- Standing wave ratio .: <= 1.5
- Gain: 6 dBi
- Characteristic impedance: 50 ohm
- Interface: SMA-J

Package Included:
- 1 x RF Frequency Generator
- 1 x 2.4G Omnidirectional Antenna
- 1 x 5V 2A Power Adapter
- 1 x User Manual
- 1 x Micro USB Charging Cable

Optional Parts:
- Communication Interface: TTL serial port (Micro USB interface)
- Communication interface converter: USB to TTL serial converter

Note: If optional parts are needed, please contact us to pay extra money. Thank you!
