Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $21.30 | $20.86 | $20.21 | $19.34 | Contact US |

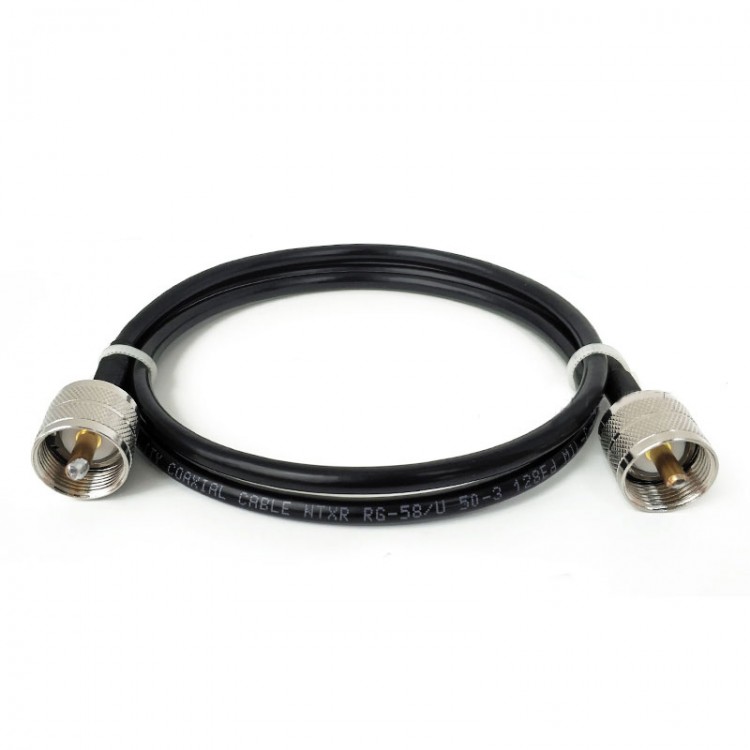

RG-58/U 10M/32.8FT RF Cable RF Coaxial Cable 3GHz Pure Copper UHF (SL16) Male To UHF (SL16)
Structural Parameters:
* Inner conductor: oxygen-free copper core
* Insulator: Polyethylene (PE)
* Outer conductor: 128 series oxygen-free copper shielding net
* Sheath: Polyvinyl Chloride (PVC)
Mechanical and Environmental Performance:
* Working temperature: -20℃ to 80℃
* Temperature resistance: -25℃ to 85℃
* Bending radius: 25mm/0.1"
* ROHS environmental protection: √
Electrical Performance Parameters:
* Capacitance (pF/m): 100±5
* Impedance (Ω): 50±2
* Rate (%): 66
* Maximum working voltage (VMS): 1500
* Maximum operating frequency (GHZ): 3.0
Attenuation:
* 23.8dB at 200MHz, 100m/328.1ft
* 34.4dB at 400MHz, 100m/328.1ft
* 49.4dB at 900MHz, 100m/328.1ft
* 104.5dB at 3000MHz, 100m/328.1ft
Package Included:
* 1 x RF Cable 10M/32.8FT
