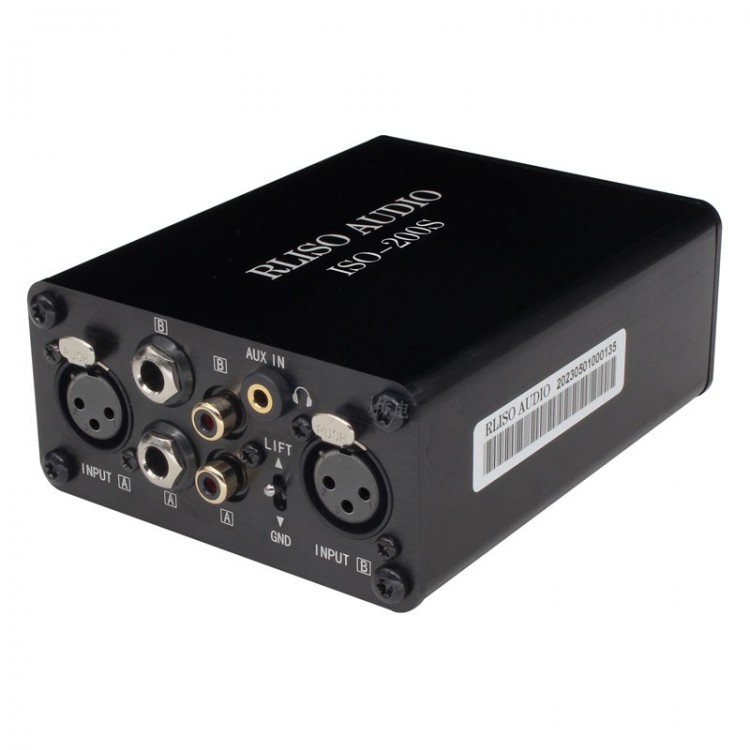

RLISO ISO-200S Multifunctional Audio Isolator Current Noise Removing XLR/TRS/RCA/AUX 3.5MM Input and Output

RLISO ISO-200S Multifunctional Audio Isolator Current Noise Removing XLR/TRS/RCA/AUX 3.5MM Input and Output

Description:
- The ISO-200S multifunctional audio isolator uses a specially designed permalloy material audio transformer as the signal coupling and conversion between input and output, with branded gold-plated connectors. The double-layer shielding circuit design isolates and converts signals between input and output, removing signal spikes. Independent two channel design with rich interfaces, all input and output interfaces are XLR/TRS/RCA/AUX 3.5mm. The different interfaces between input and output, balanced and unbalanced, high impedance and low impedance can all be converted to each other. Equipped with a floating/grounding mode switch and AUX3.5mm.

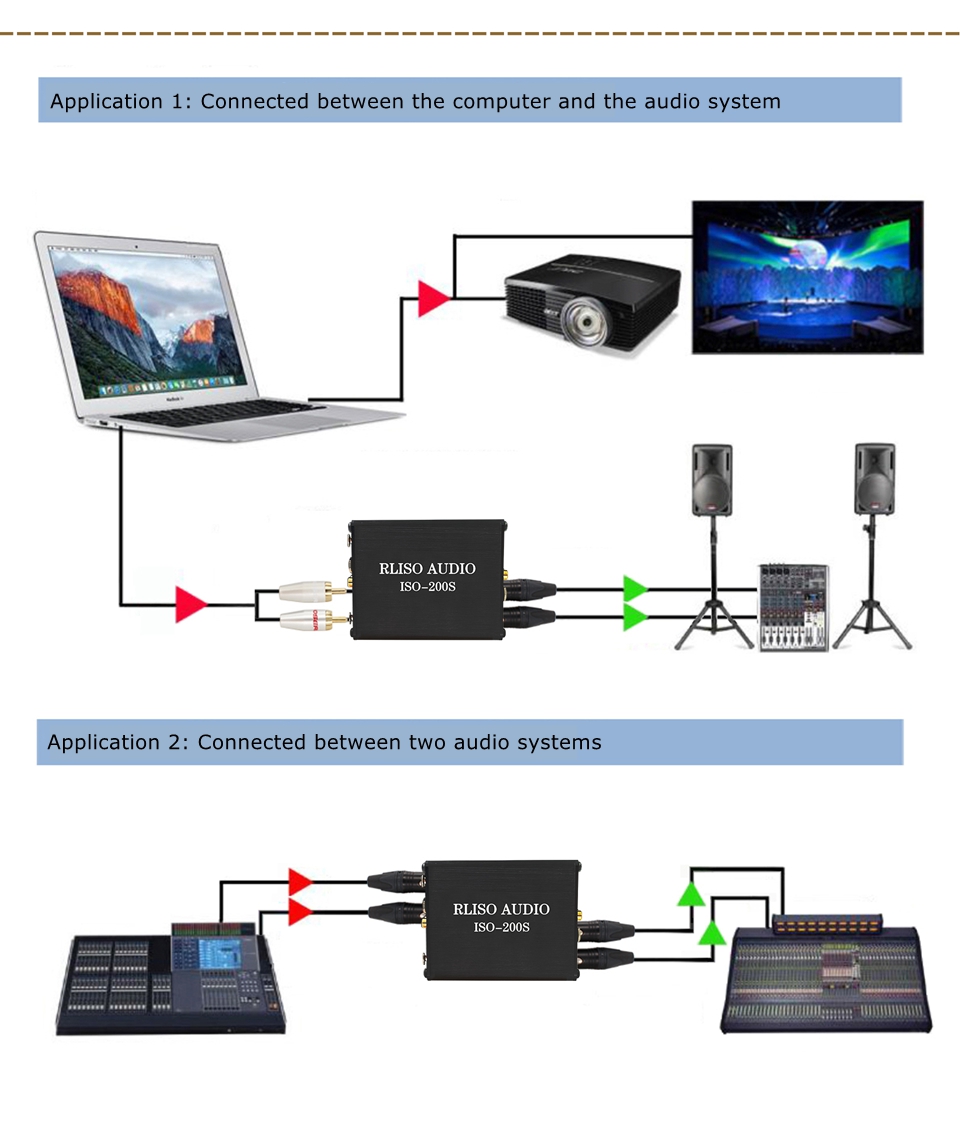

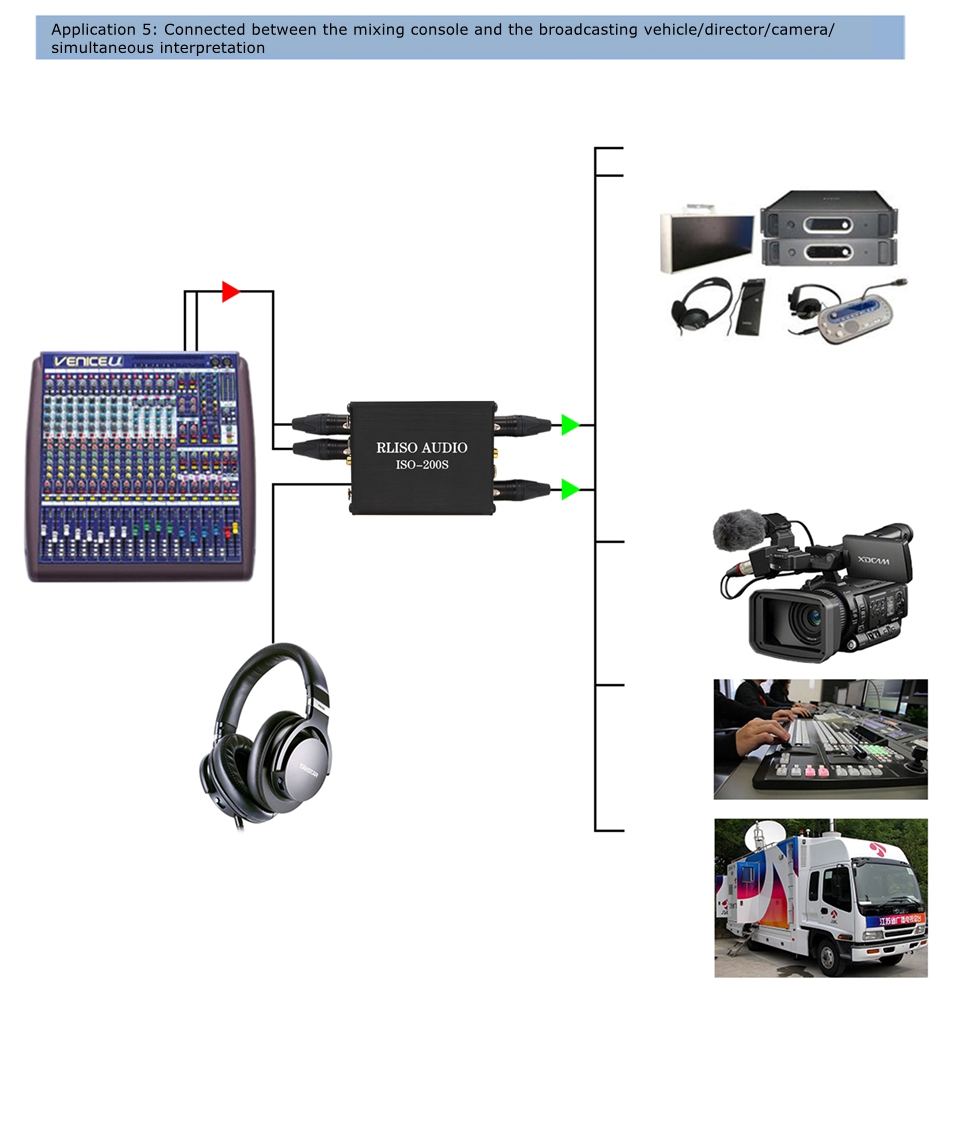

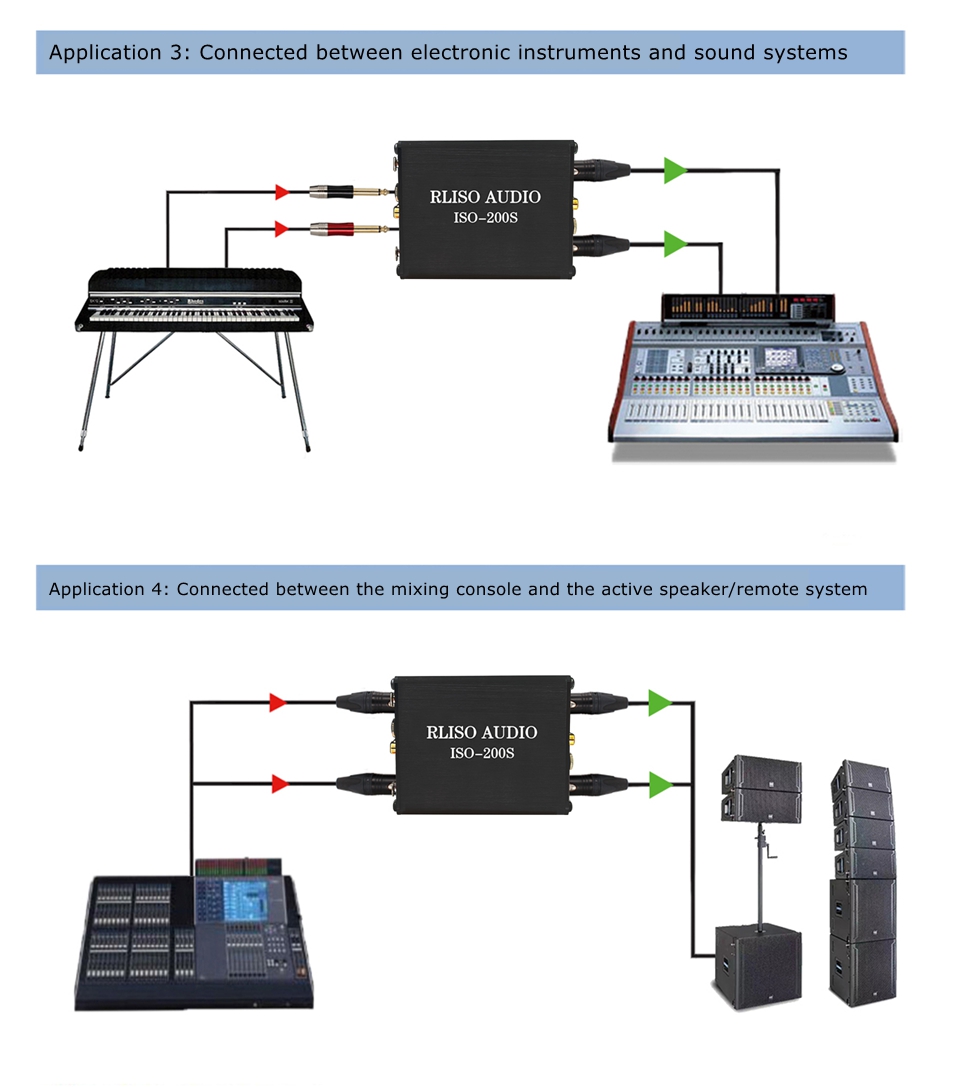

- Small three core input/output interface, completely isolates the potential difference between the input and output systems, avoiding AC sound interference caused by grounding issues, preventing damage to equipment input components caused by high potential differences, and achieving safe transmission of audio signals. Remove the current sound generated by connecting laptops, cameras, broadcasting consoles, simultaneous interpretation equipment, electronic musical instruments, and other devices to the mixing console (sound): noise generated by impedance mismatch between devices. It is also suitable for theaters, large outdoor performances, lightning protection, sound engineering, multimedia conferences, home HiFi speakers, entertainment venues, exhibitions, etc. It is an important equipment for cascading audio systems.

Specification:
- Model: ISO-200S
- Mode: passive
- Main functions: physical isolation, mutual conversion between balanced/unbalanced signals
- Features: equipped with grounding mode switch/input output of AUX 3.5mm interface

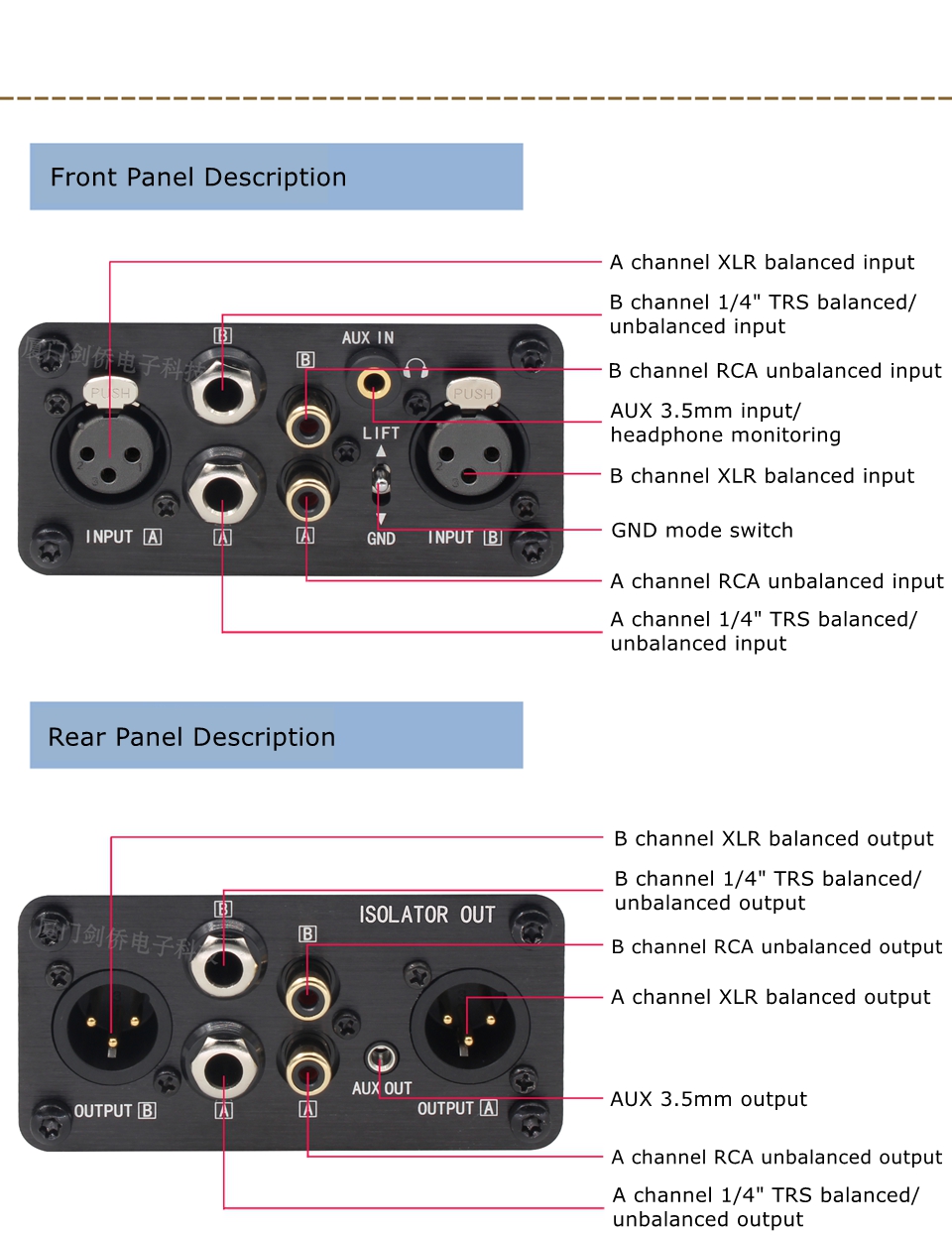

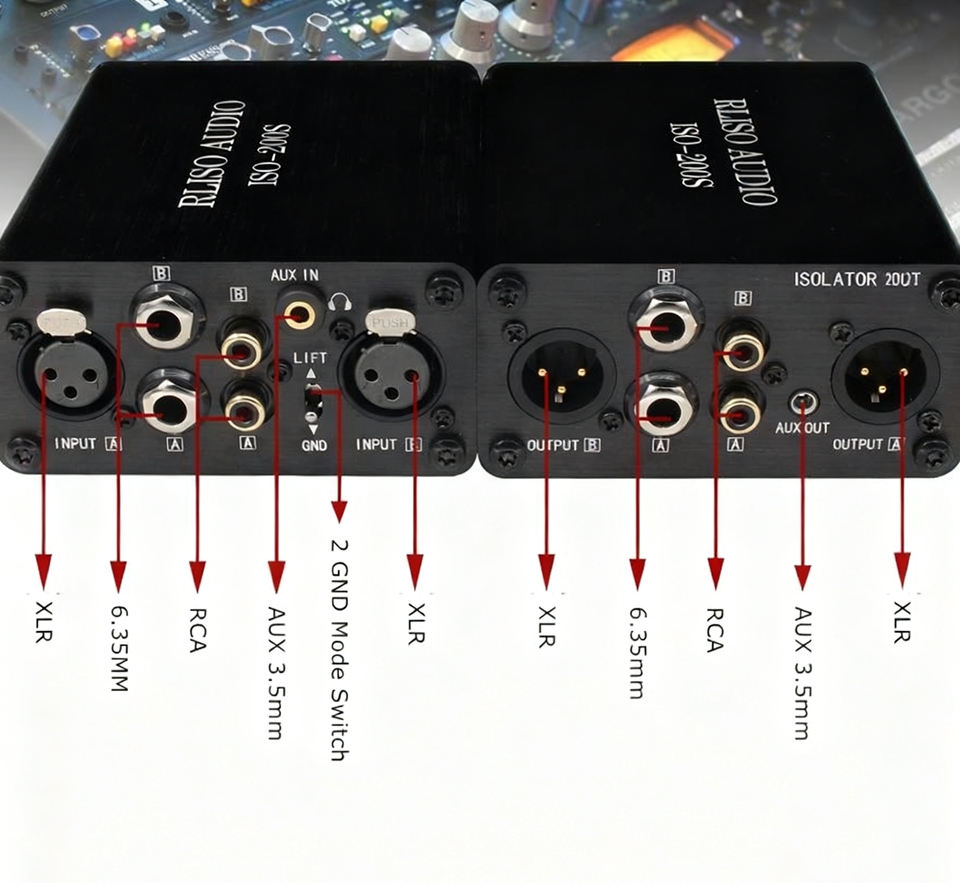

- Input interface: XLR x 2, 1/4” TRS x 2, RCA x 2, AUX 3.5mm x 1
- Output interface: XLR x 2, 1/4” TRS x 2, RCA x 2, AUX 3.5mm x 1
- Input impedance: 600ohms/10Kohms (AC impedance)
- Output impedance: 600ohms/10Kohms (AC impedance)
- Frequency response: 20Hz - 20kHz (<0.5dB ref 1kHz)
- THD+N: ≤0.002% at 1kHz
- Loss: < 0.7dB (ref 1kHz 1Vrms)
- Insulation resistance: DC1000V 100Mohms
- Isolation voltage: AC 50Hz-60Hz 0V-1500V
- Product size: 130 x 100 x 50mm

Package Included:
- 1 x Audio Isolator
- 1 x User Manual
