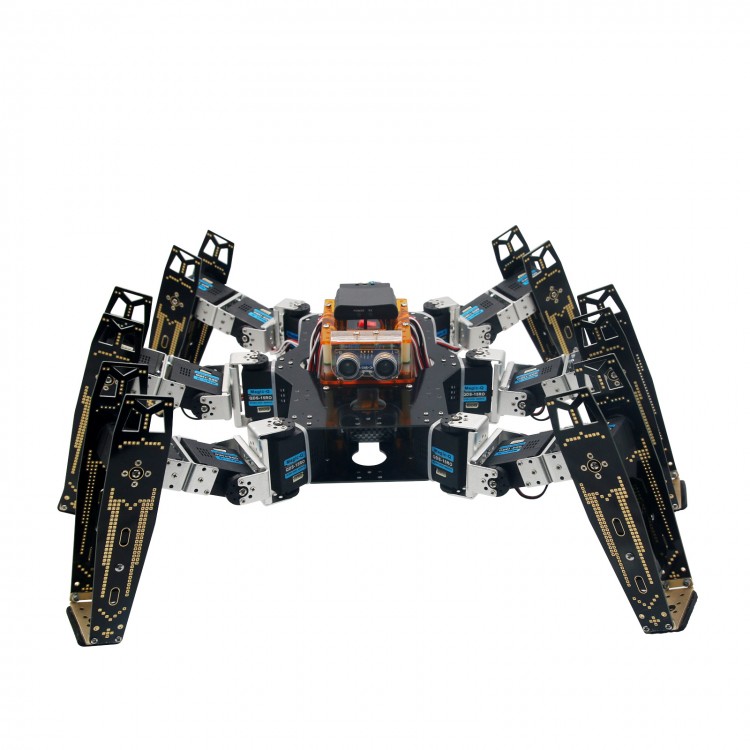

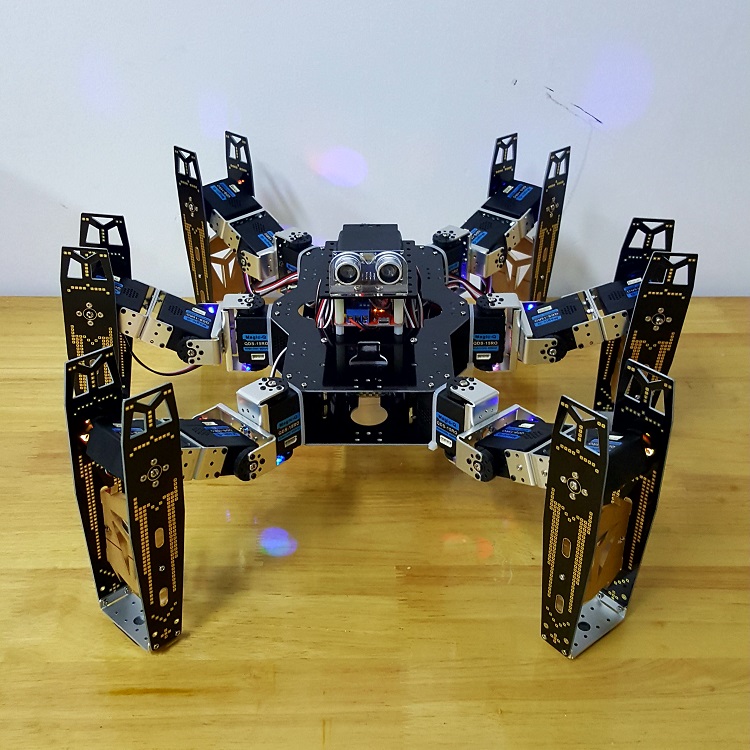

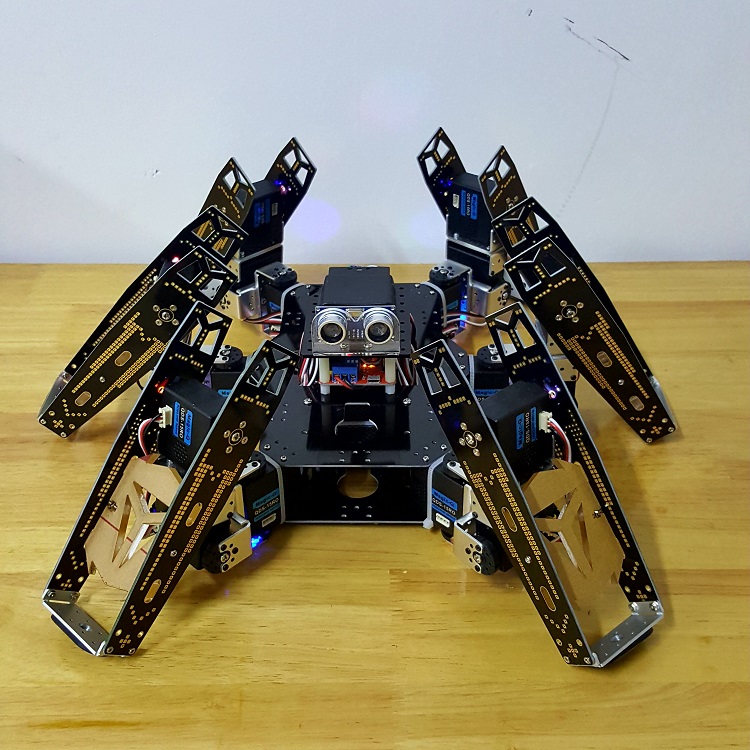

Robot Six Leg Foot Spider Full Kit with Servo Infared Remote Control Arduino Learning

Robot Six Leg Foot Spider Full Kit with Servo Infared Remote Control Arduino Learning

Product Description:
- The 2017 latest six foot spider robot, uses hybrid reinforcing bracket,cool lights,taking exclusive research QDS-15RO digital metal servo gear as joint.Take multi-channel servo drives and Arduino compatible controller as the brain.
- A lot of hardware and program optimization has been done for six legged robot.Strong stability support structure design, smooth movement speed can also expand their own various modules, infrared, Bluetooth, ultrasonic, PS2 handle, WiFi video module provides routines.

Specifications:
- Overall dimensions: when standing upright, 430*450*180mm
- Weight: when install finished, 1950g

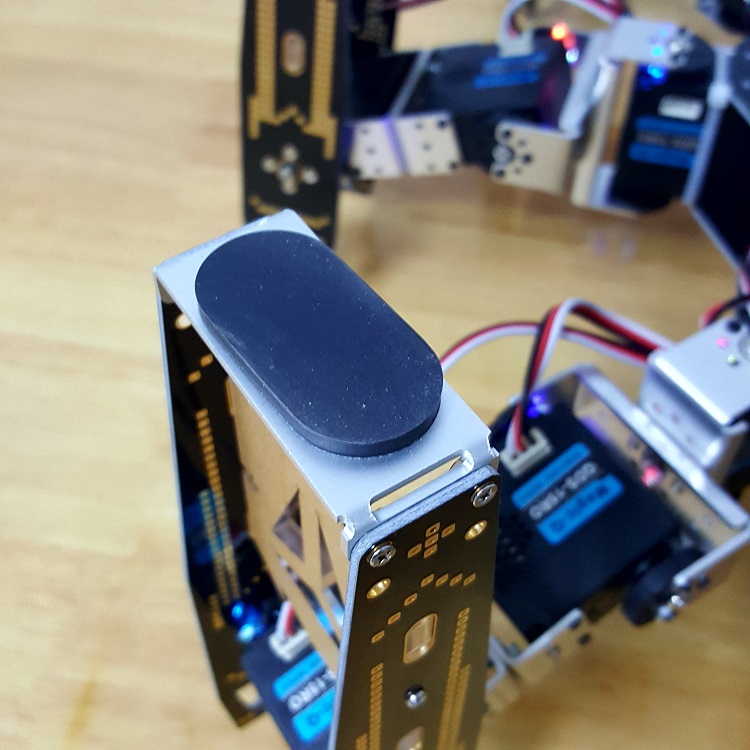

- Body material: 1.5mm thick aluminum alloy U frame and sink gold glass fiber board, that is, to ensure the strength, but also enhance the value of the color, with a large thickness of the foot 3mm shock absorbing rubber pad
- Battery: 8.4v 25C 2200mAh high current power lithium battery, measured continuous operation 1H
- Degrees of freedom: 18 steering gear, 18 degrees of freedom
- Control panel: the main control parameters of Arduino open source, providing common sensor routines, the underlying servo driver has been written, directly call instruction can control a plurality of steering gear, steering gear with deviation of storage, action group speed, steering direction adjustment exclusive technology
- The servo parameters: 8.4v lithium battery support direct access, without step-down circuit, digital jitter, resistance to burn, blocking protection, long service life, large torque, full metal gear,weight 60g, torque 17kg

User Video:Click here

Package List:
- 1  x   The six foot spider robot kit
