Robotic Arm Single Suction Cups Mechanical Arm Manipulator Vacuum Pump DIY Kit Unassembled
Parameters:
Vacuum Pump:
- Rated Voltage: DC 5V (Compatible voltage 3-7.2V)
- No-load Current: 5V, > 800mA
- Blowing Pressure: 130KPA
- Inspiratory Pressure: 60KPA
- Flow: 5V, > 3.5L/min
Air Release Valve:
- Rated Voltage: DC 3V (Compatible voltage 3-7.2V)
- Rated Current: > 500mA
- DC Resistance: 26Ω±10%
- Rated Power: 0.15W
- Working Pressure: < 350 mmHg
- Air Tightness: < 5 mmHg/min
- Air Releasing Time: < 3 second

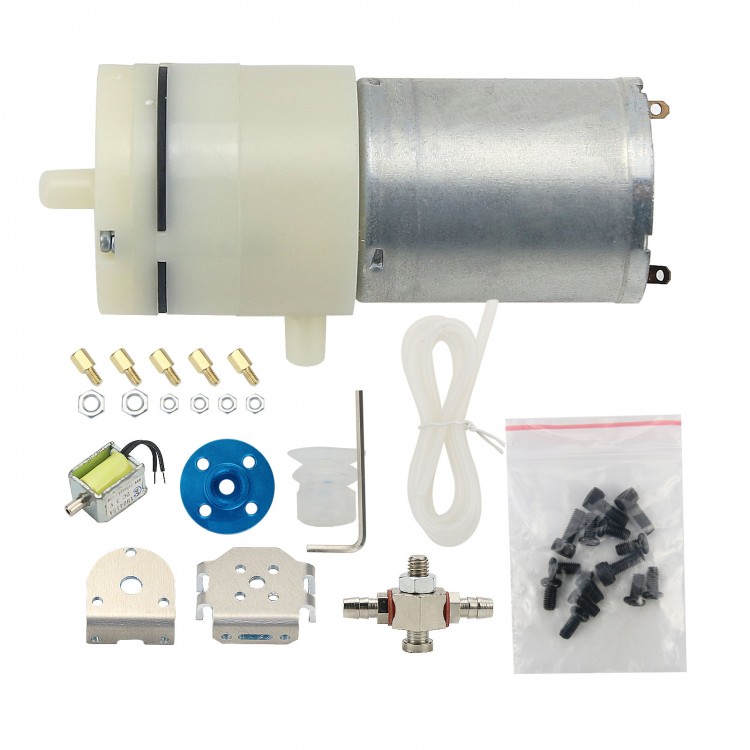

Package Included:
- 1 x Vacuum Pump
- 1 x Fixing Base For Vacuum Pump
- 1 x Air Release Valve
- 1 x Single Suction Cup Robot Arm
- 1 x Super Thick Silicone Tube 90cm
- 1 x Metal Servo Horn
Note: Assembling is needed.
