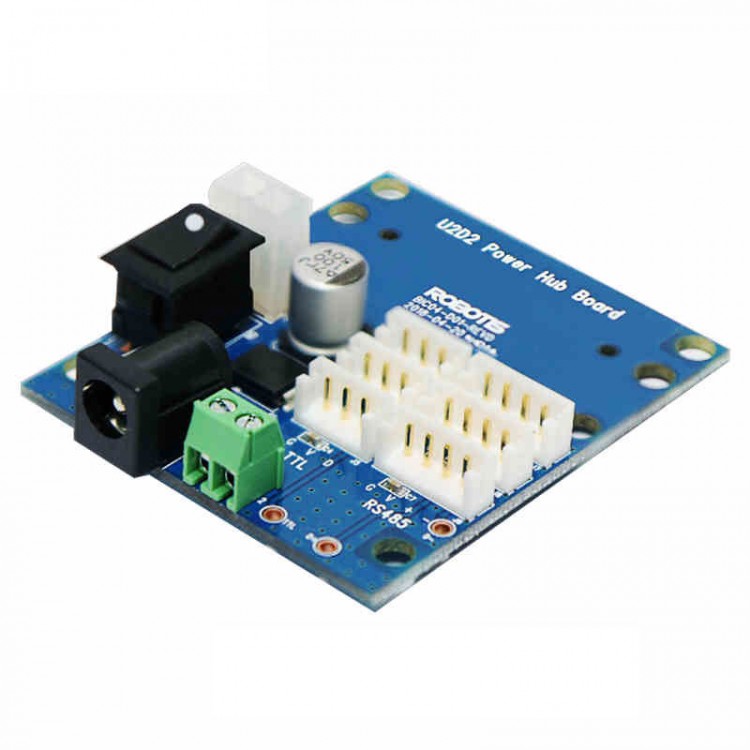

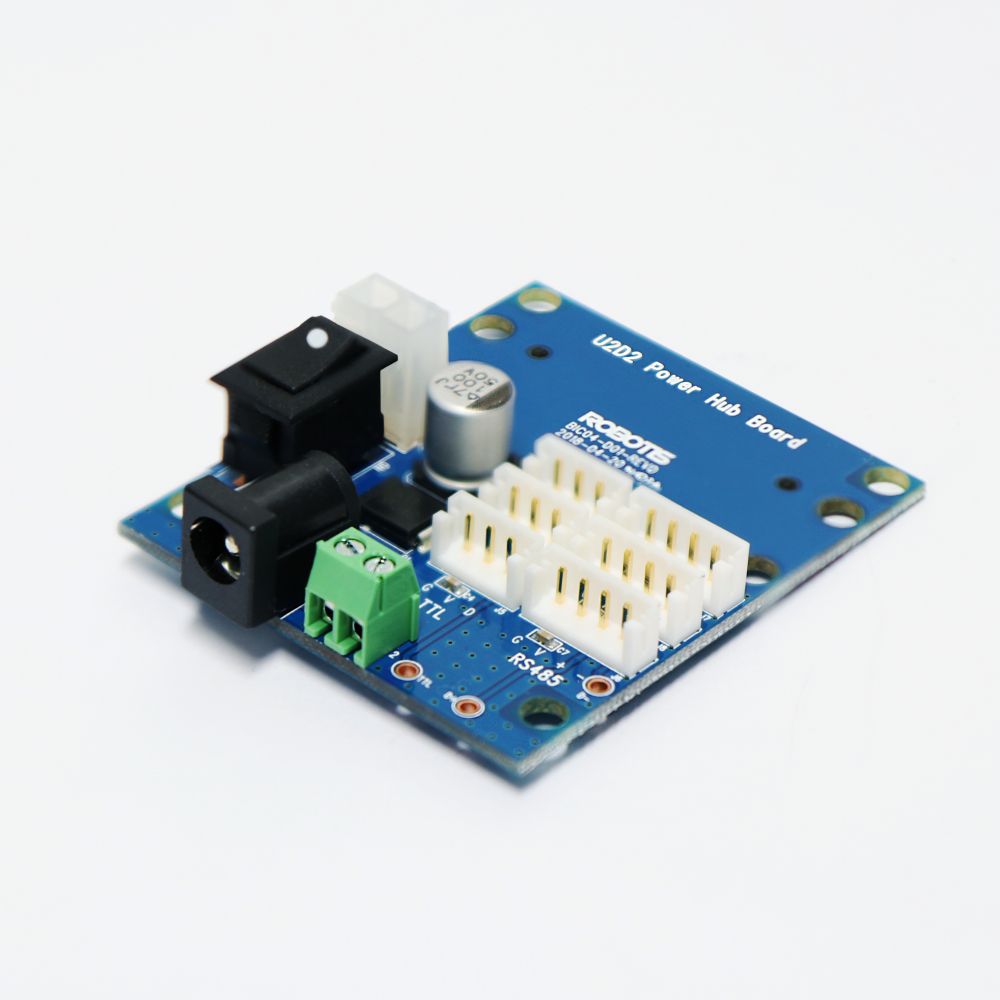

ROBOTIS U2D2 Power Hub Board Used w/ U2D2 Converter to Provide External Power Sources to DYNAMIXEL

ROBOTIS U2D2 Power Hub Board Used w/ U2D2 Converter to Provide External Power Sources to DYNAMIXEL

Features:
- The U2D2 Power Hub Board can be used with a U2D2 converter to supply a variety of external power sources to DYNAMIXELs.

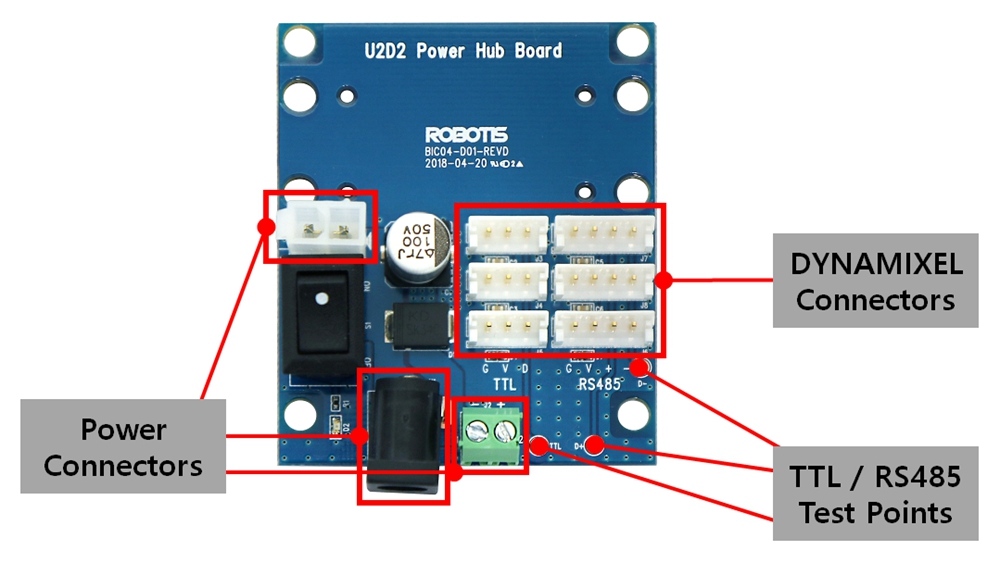

- The board is capable of supplying power to all DYNAMIXELs with the SMPS port, terminal block, and 2P power connector.
- The board has holes to fix the U2D2 module and can be assembled using the rivets supplied in the package.
- Easily powers ON/OFF with the power switch

Specifications:
- Dimensions: 48mm x 57mm
- Operating Voltage: 3.5V~24.0V
- Max. Current: 10.0A

Package Included:
- 1 x Set of U2D2 Power Hub Board

Compatible Products:
DYNAMIXEL AX/MX-Series, PRO-Series
- Use the Molex-JST Convertible Cable (Use 3P or 4P based on your communication selection)

DYNAMIXEL X-Series, P-Series
- Use the JST Cable. (Use 3P or 4P based on your communication selection)

The U2D2 PHB only has a JST type connector and requires a convertible cable when connecting to Molex type connectors.

* Required cables: Min 2pcs (U2D2 <-> DYNAMIXEL, U2D2 PHB <-> DYNAMIXEL)

Caution:
- U2D2 module is not included
- When using the terminal block, please pay attention to the polarity when using external power.
- Left side is - and Right side is +
- Various pins are exposed behind the board. We recommend users to assemble and use the included supporter.

Packaging Details:
- Weight: 0.3kg
