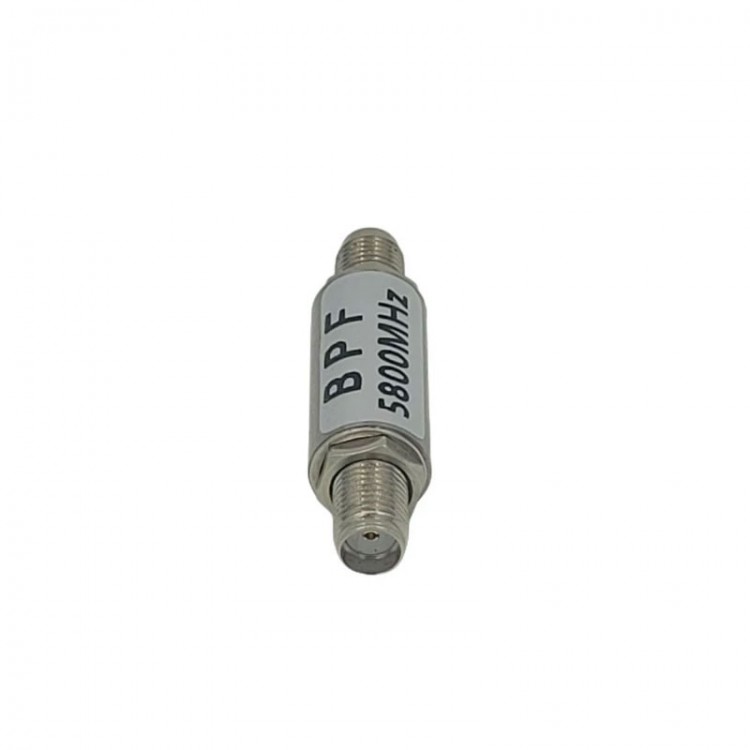

Round Case 5.8GHz RF BPF Bandpass Filter VTX Remote Control Suppressor with SMA Female Connector
Specification:
- Working frequency: 5800MHz
- Working voltage: 3V
- Bandwidth: 5.35GHz ~ 6GHz
- In-band insertion loss: <2dB
- Maximum withstand power: 20mW
- Input and output impedance: 50ohm
- For 4GHz, the maximum suppression can reach -40dB.

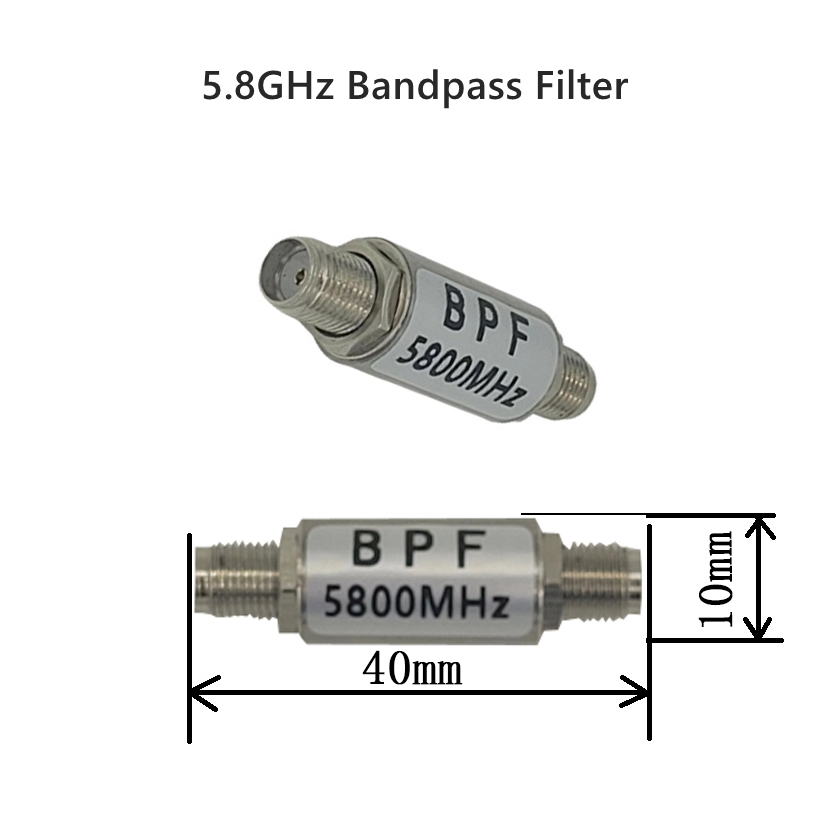

- Size: 40 x 10mm
Package Included:
- 1 x Bandpass Filter
