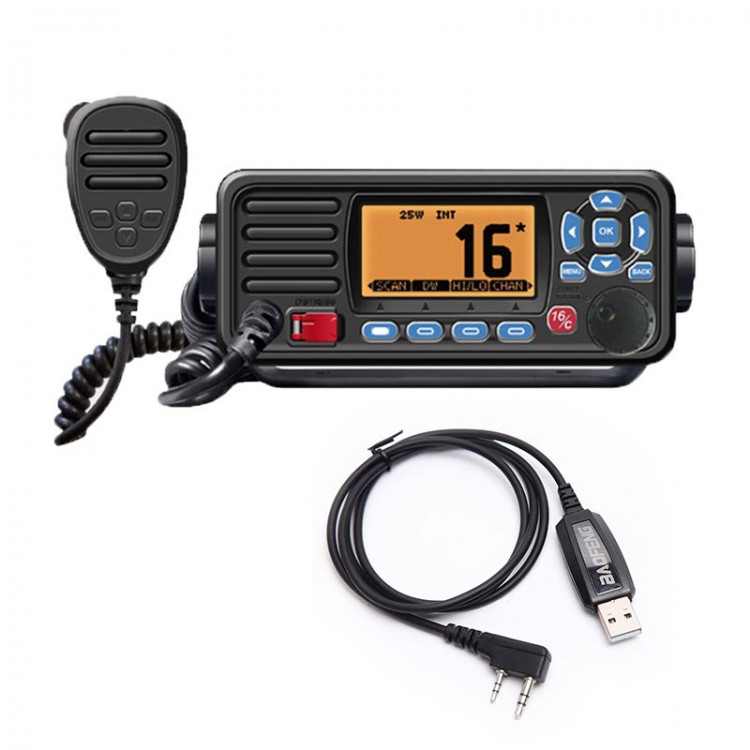

RS-509MG 25W 50KM VHF Transceiver Marine Transceiver IPX7 with Built-in GPS + Programming Cable

RS-509MG 25W 50KM VHF Transceiver Marine Transceiver IPX7 with Built-in GPS + Programming Cable

Main Functions:
- With Built-in GNSS Module, It Supports GPS, GLONAS, SBAS and Satellite- based Augmentation System (WAAS/EGNOS/MSAS/GAGAN) (Only for RS-509MG)
- Dual Receiver and Independent DCS Dedicated Receiver
- Manually Input GPS Latitude and Longitude and Time
- IPX7 Waterproof Construction (1m/3.3ft Depth of Water for 30 Minutes)
- Speaker Vibration Draining Function
- Weather Channel Alarm
- Dual/Tri-watch Functions
- Scan: Normal Scan and Priority Scan
- DSC Call Reception and Transmission Records Can be Queried
- Standard NMEA Interface (RS-422 Protocol)
- Full Dot Matrix Display
- Channel Number Display Digits Selectable: 3 Digits (01B)/4 Digits (2001)
- Simple Combination of Arrow Keys and Programmable Soft Keys for Smooth Operation
- Support Latest Marine Channel Standards and DSC Protocol Standards. DSC Distress Calls in 11 Categories and All DSC Calls in 3 Security Categories

Specifications:
- Frequency: TX: 156.000-162.000MHz. RX: 156.000-163.425MHz
- RF Power: 25W/1W
- Channel Group: USA, INT and CAN
- Modulation Mode: 16K0G3E (FM) and 16K0G2B (DSC)
- Frequency Stability: ±5ppm
- Operating voltage: DC13.8V (±15%)
- Channel Spacing: 25kHz
- Operating Temperature: -20℃ to +60℃
- Antenna Impedance: 50Ω
- Output Impedance (Audio): 4Ω
- Dimensions (WxHxD): 155 x 68 x 86mm/6.1 x 2.7 x 3.4"
- Weight: 721g/1.6lb

Package Included:
- 1 x VHF transceiver
- 1 x Handheld microphone
- 1 x Mounting bracket
- 1 x DC power cable
- 1 x GPS antenna
- 1 x Programming cable
