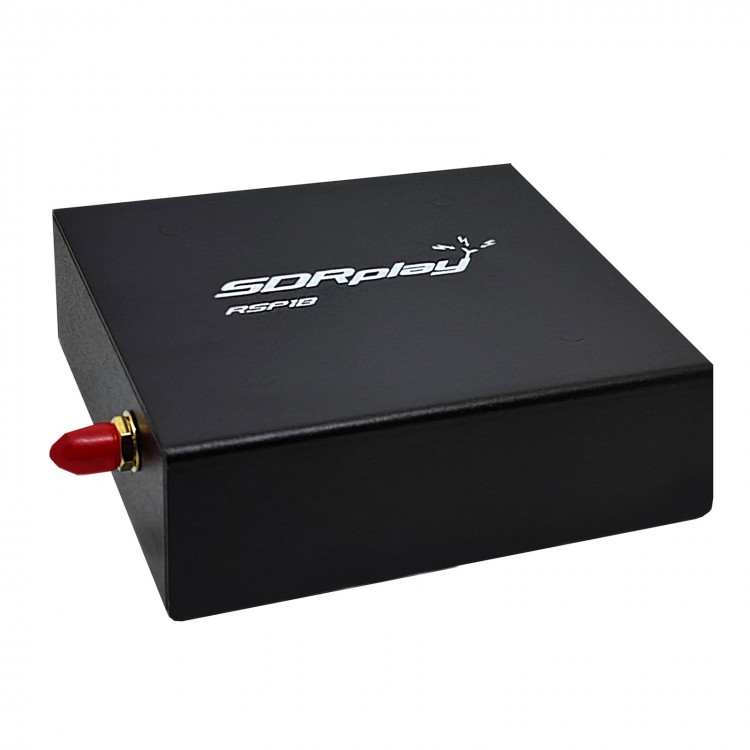

RSP1B Enhanced Version 1kHz-2GHz SDR Receiver Wideband Software Defined Receiver with Single SMA Antenna Interface

RSP1B Enhanced Version 1kHz-2GHz SDR Receiver Wideband Software Defined Receiver with Single SMA Antenna Interface

Description:
- The RSP1B is an enhanced version of the RSP1A our popular lowest cost receiver—it is a powerful wideband full featured 14 bit SDR and perfect as an all round general coverage communications receiver plus much much more.

- The key advantages over the RSP1A are that it comes in strong black painted steel case instead of plastic, and (compared to the RSP1A) has significantly improved noise performance below 1MHz (i.e for LF and below), and in the 50-60MHz region. There are also noticeable noise improvements in the 3.5-5.5MHz and 250-320MHz spectrum. It also has it has improved signal handling at HF frequencies compared to the RSP1A.

- The RSP1B covers the complete radio spectrum from 1kHz (VLF) to 2GHz (Microwaves) with up to a massive 10MHz visible bandwidth and the companion SDRuno software has all the popular ham bands and shortwave broadcast bands as “presets” for instant set-up.

- To check compatibility with your choice of computer hardware, operating system and SDR application software, go to https://www.sdrplay.com/downloads/

Applications:
- Amateur: shortwave listening, broadcast communication (AM/FM/TV), spectrum monitor, aviation (ADSB&ATC), slow Scan TV, amateur multi band monitoring, WSPR&Data Mode, meteorological cloud map, satellite monitoring, geostationary orbit satellite, wireless communication, monitoring of public utilities and emergency services, comparison of simple antennas.
- Public: surveillance and monitoring, wireless microphone monitoring, RF measurement, Internet of Things, signal recording, RFI/EMC testing, broadcast monitoring, spectrum monitoring, power measurement.
- Education/Science: teaching, receiver design, radio astronomy, passive radar, spectrum analyzer, IoT sensors, antenna research.

Specification:
- Product size: 98 x 94 x 35mm
- Low current: 185mA
- IF mode:
  0 IF: overall IF bandwidth
  Low IF: IF width = 1.536MHz
- IF bandwidth (3dB): 200kHz, 300kHz, 600kHz, 1.536MHz, 5.0MHz, 6.0MHz, 7.0MHz, 8.0MHz
- Typical noise ratio: 22dB at 300kHz; 18dB at 2MHz; 18dB at 4MHz; 15dB at 12MHz; 15dB at 25MHz; 15dB at 40MHz; 5.3dB at 55MHz; 3.3dB at 100MHz; 3.3dB at 200MHz; 6.4dB at 275MHz; 7.7dB at 386MHz; 3.6dB at 660MHz; 5dB at 1500MHz; 6.3dB at 1800MHz
- Reference: high temperature stability (0.5ppm) TCXO, it can be fine tuned to 0.01ppm on site
- Peak input power: 0dBm for continuous; 10dBm for short time
- Front filter: low pass, 2MHz
- Band: 2 - 12MHz; 12 - 30MHz; 30 - 60MHz; 60 - 120MHz; 120 - 250MHz; 250 - 300MHz; 300 - 380MHz; 380 - 420MHz; 420 - 1000MHz
- High pass: 1000MHz

Package Included:
- 1 x SDR Receiver
