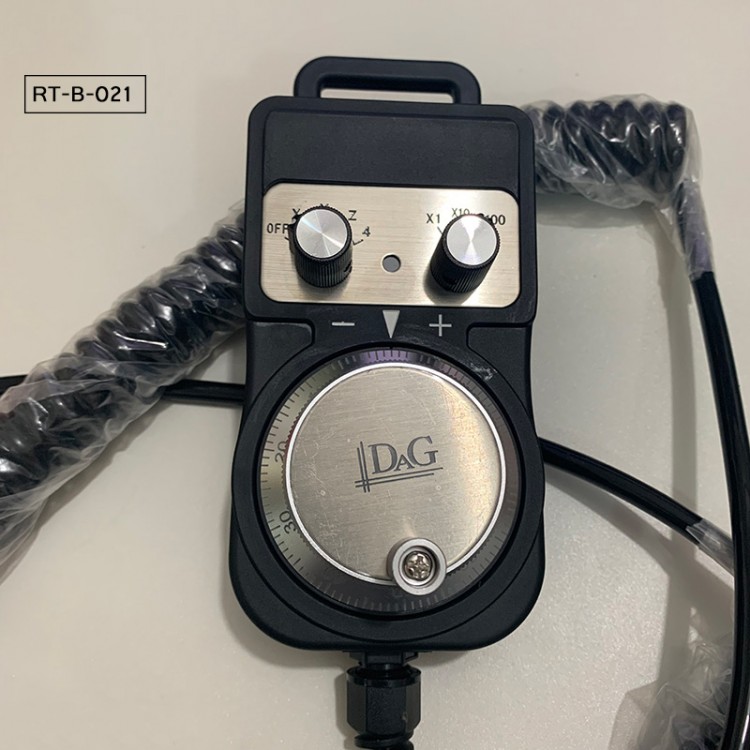

RT-B-021 4 Axis MPG CNC Pendant CNC Handwheel 100PPR (AB) For FANUC CNC System
Specifications:
- Compatible CNC System: For FANUC
- Resolution: 100PPR (AB)
- Output Type: Collector (NPN/PNP)
- Support Voltage: DC 5-12V
- Support Current: ≤ 60mA
- Output Voltage:
* High Frequency: ≥VCC X 0.7V
* Low Frequency: ≤0.5V
- Output Current: ≤ 35mA
- Rising/Falling Time: 5us (Typ)
- Response Frequency: 0-5KHz
- Isolation Impedance: ≥ 20MΩ
- Normal Mechanical Speed: ≤ 300 r/min
- Maximum Mechanical Speed: 600 r/min
- Service Life: >1000000r[200r/min] verified by a large number of customer practices
- Starting Torque: 1X0.01 N·M
- Anti-sloshing Ability: the angle AB between ±1/4-1/2 cycles will not send a signal
- Intelligent "Core": Independent research and development, with automatic intelligent error correction
- Protection Level: IP54 equivalent
- Working Storage Temperature: -30 to 60℃
- Weight: 0.60 kg
Package Included:
- 1 x CNC Handwheel
