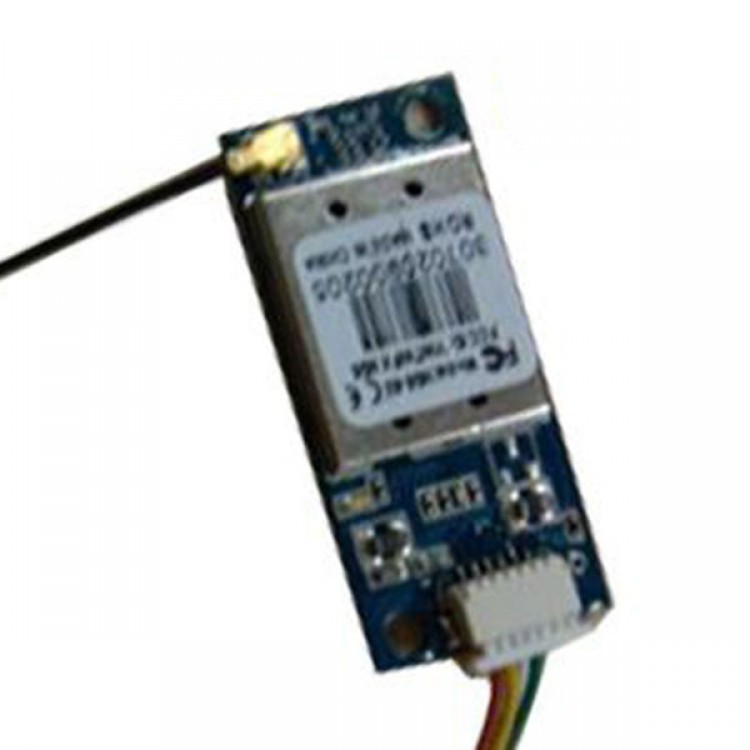

RT3070 HLK-3M05 Low Power Consumption USB Wireless Network wifi Compatible WINCE LINUX

RT3070 HLK-3M05 Low Power Consumption USB Wireless Network wifi Compatible WINCE LINUX

Specific:
- Hardware:Chipset Ralink RT3070
- Host interface:USB2.0/1.1, type A
- LEDS:Link/ Activity
- RF
- Antenna:Built-in PCB antenna
- Frequency:2412~2483.5MHz, ISM band.
- Transmit Power:802.11b:17+/-1.5dBm; 802.11g:14+/-1.5dBm
- Receive Sensitivity:802.11b:-84+/-1.5dBm@11Mbps; 802.11g:-69+/-1.5dBm@54Mbps
- Software
- Operation System:Windows CE/2000/XP/Vista; Linux 2.6.X;Mac OS X
- Security:WEP 64/128bit,WPA,WPA2,802.1X ,Cisco CCS V1.0,2.0 and V3.0 Compliant.

Operation Conditions
- Voltage Range*:DC 5.0V±5%:
- Operating Temperature: 0℃-50℃
- Storage Temperature:-20℃-70℃
- Operating Humidity:RH 95%(Non-Condensing)
- Storage Humidity:RH 95%(Non-Condensing)


- Chipset: Ralink RT3070
- Standard: 802.11N compliance, Peak rate: 150Mbps
- Frequency: 2.4GHz, ISM band
- External antenna via IPEX receptacle
- Host interface: USB 2.0/1.1,
- USB Connection:6-pin. 2.0mm pitch male jumper
- Operation System: Windows CE/2000/XP/Vista
- Security:WHQL;Cisco CCX Linux2.6X;Mac OSX
- Operating Voltage:5.0 VDC +/- 5%
- Size: 40x18x8.7( PIN height)mm
